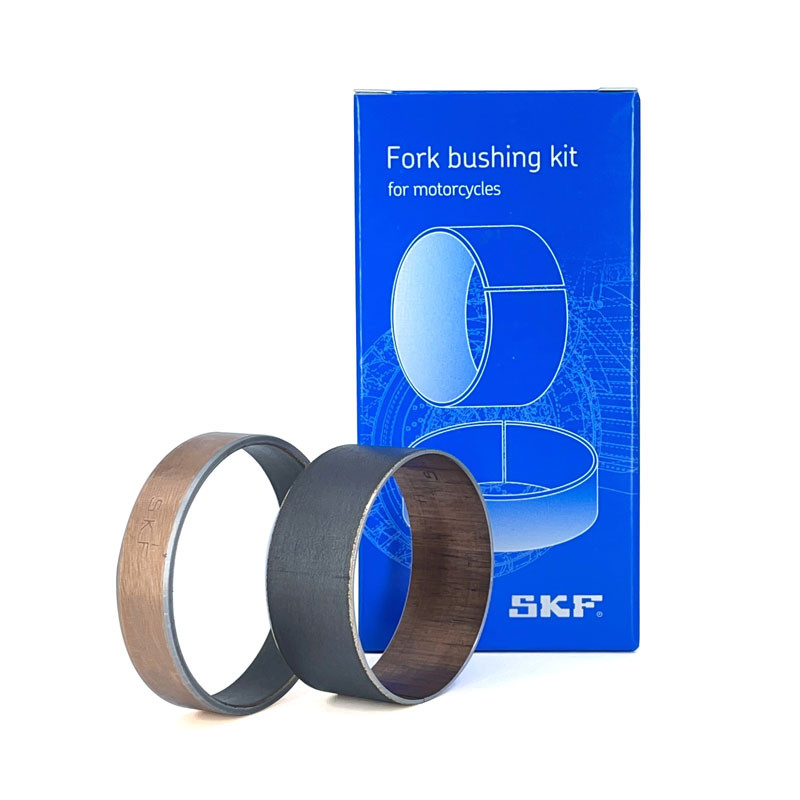

SKF SHOWA Fork Bushing Kit (type 1) for SUZUKI DL 1000, DR 250, DR 350 and HONDA XR 400 1990-2013

On SUZUKI DL 1000, DR 250, DR 350 and HONDA XR 400 from 1990 to 2013, the SKF type 1 SHOWA VKWA-SHO43-A fork bushing kit fits in place of the original part. This kit contains the fork's guide bushings: the outer bushing, at the top of the fork leg, and the inner bushing, at the bottom of the tube. Their PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: SKF
• Manufacturer part number: VKWA-SHO43-A
• EAN code: 7316581872138
• Contents: 1 inner and 1 outer bushing (for one fork leg)
• Weight: 70 g

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushings without scratching their seats, and clean them.
3. Fit the new bushings with a suitable tool, then install new oil seals.
4. Reset the fork oil level as per the manual.

Why SKF?

SKF is renowned for its fork seals, among the most durable in motocross according to the American magazine Motocross Action, which notes that the WP forks on KTMs are fitted with them as original equipment. In its Dual Compound range, the brand combines two rubber compounds moulded together: a tough green dust wiper and a softer red sealing lip, both reinforced by a metal insert.

Spare parts and items to plan

• Fork oil seals : SKF · ATHENA
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA XR 400 2006
HONDA XR 400 2005
HONDA XR 400 2004
HONDA XR 400 2003
HONDA XR 400 2002
HONDA XR 400 2001
HONDA XR 400 2000
HONDA XR 400 1999
HONDA XR 400 1998
HONDA XR 400 1997
HONDA XR 400 1996
SUZUKI DL 1000 2013
SUZUKI DL 1000 2012
SUZUKI DL 1000 2011
SUZUKI DL 1000 2010
SUZUKI DL 1000 2009
SUZUKI DL 1000 2008
SUZUKI DL 1000 2007
SUZUKI DL 1000 2006
SUZUKI DL 1000 2005
SUZUKI DL 1000 2004
SUZUKI DL 1000 2003
SUZUKI DL 1000 2002
SUZUKI DR 250 1996
SUZUKI DR 250 1995
SUZUKI DR 250 1994
SUZUKI DR 250 1993
SUZUKI DR 250 1992
SUZUKI DR 250 1991
SUZUKI DR 250 1990
SUZUKI DR 350 1997
SUZUKI DR 350 1996
SUZUKI DR 350 1995
SUZUKI DR 350 1994
SUZUKI DR 350 1993
SUZUKI DR 350 1992
SUZUKI DR 350 1991
SUZUKI DR 350 1990
