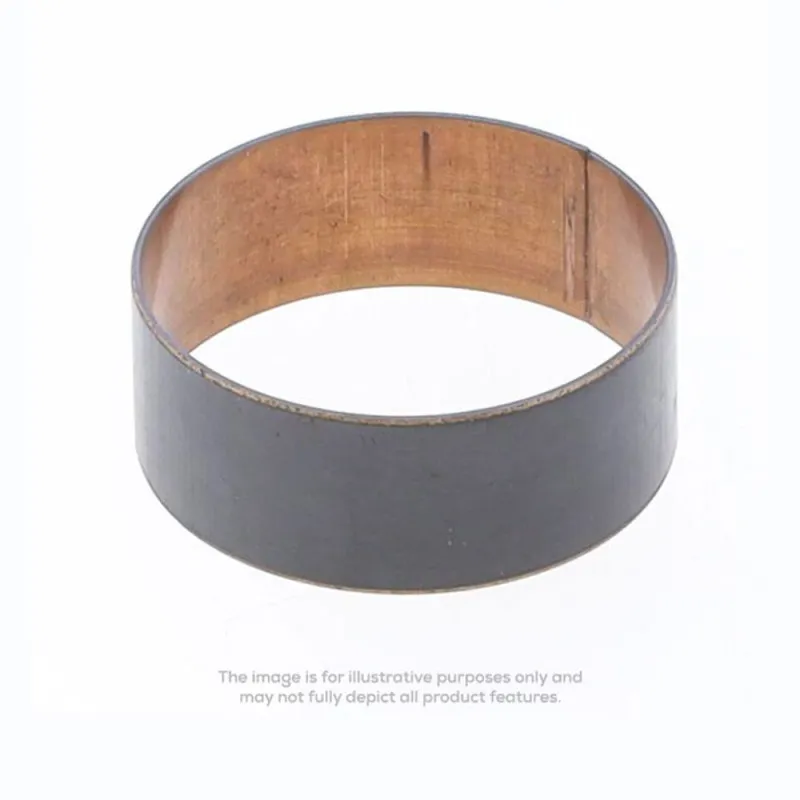

ATHENA SHOWA 49 mm Inner Fork Bushing for SUZUKI, HONDA and KAWASAKI 1996-2027

Name: ATHENA SHOWA 49 mm Inner Fork Bushing for SUZUKI, HONDA and KAWASAKI 1996-2027
Brand: ATHENA
SKU: S41TE49S
Price: 10.9 EUR
Availability: InStock

Review (0)

€10.90

Tax Included

Disponible en nuestro proveedor, enviado en 10 a 15 días.

ATHENA SHOWA 49 mm inner fork bushing for SUZUKI DRZ 400, RM 125, RM 250, RMZ 450, HONDA CRF 250, CRF 450 and KAWASAKI KXF 450 from 1996 to 2027.

The ATHENA SHOWA 49 mm S41TE49S inner fork bushing is designed for SUZUKI DRZ 400, RM 125, RM 250, RMZ 450, HONDA CRF 250, CRF 450 and KAWASAKI KXF 450 from 1996 to 2027. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

Brand: ATHENA
Manufacturer part number: S41TE49S
EAN code: 8050506053965
Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

Grey coating worn through: the copper or bronze shows on the bushing.
Play in the fork when you rock the bike back and forth with the front brake on.
Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
Fit the new bushing in the groove, then install new oil seals.
Reset the fork oil level as per the manual.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455076
Fork oil : LIQUI MOLY 10W 500 ml
Fork dust seals : ATHENA P40FORK455097 · ATHENA P40FORK455209

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Reference S41TE49S

In stock99 Items

Specific References

Click on your bike to see all compatible parts.

Write your review

No customer reviews for the moment.
