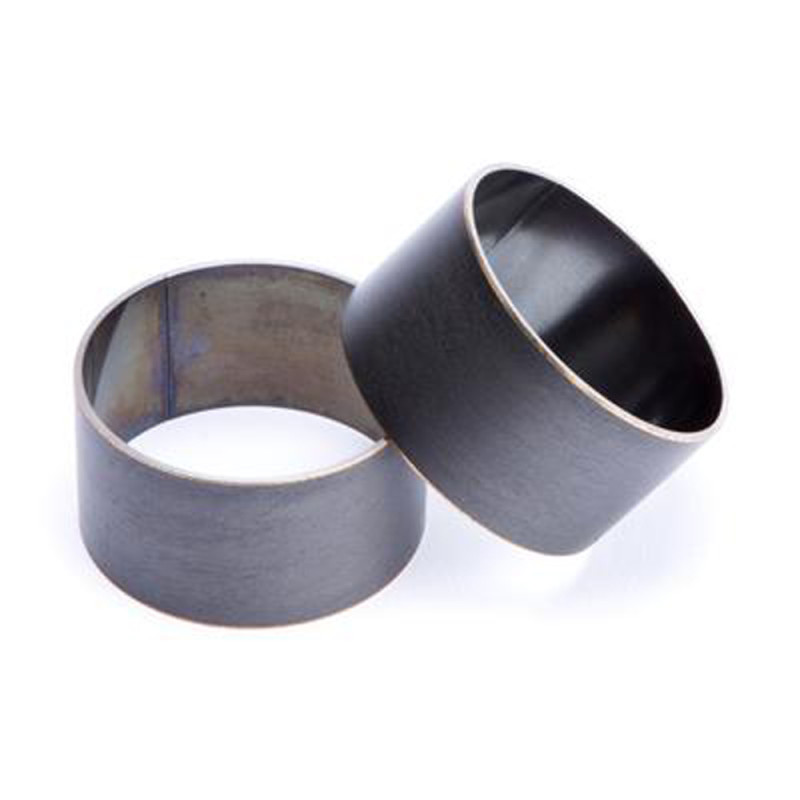

SHOWA 48 mm Inner Fork Bushing (OEM) for KAWASAKI KLX 450, KXF 250, HONDA CRF 250 and SUZUKI RMZ 250, RMZ 450 2007-2022

On KAWASAKI KLX 450, KXF 250, SUZUKI RMZ 250, RMZ 450 and HONDA CRF 250 from 2007 to 2022, the SHOWA SHO-50048 inner fork bushing fits in place of the original part. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: SHOWA
• Manufacturer part number: SHO-50048
• Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
3. Fit the new bushing in the groove, then install new oil seals.
4. Reset the fork oil level as per the manual.

Why SHOWA?

Showa was founded in 1938 in Gyoda, Japan, as Showa Aircraft Precision Works. After the war, the company put its aeronautical know-how to work on motorcycle suspension, notably for Honda, and the brand now belongs to the Astemo group, formed by a merger completed in January 2021.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455139 · ATHENA P40FORK455216
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455131 · ATHENA P40FORK455209

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 250 2014
HONDA CRF 250 2013
HONDA CRF 250 2012
HONDA CRF 250 2011
HONDA CRF 250 2010
KAWASAKI KLX 450 2022
KAWASAKI KLX 450 2021
KAWASAKI KLX 450 2020
KAWASAKI KLX 450 2019
KAWASAKI KLX 450 2018
KAWASAKI KLX 450 2017
KAWASAKI KLX 450 2016
KAWASAKI KLX 450 2015
KAWASAKI KLX 450 2014
KAWASAKI KLX 450 2013
KAWASAKI KLX 450 2012
KAWASAKI KLX 450 2011
KAWASAKI KLX 450 2010
KAWASAKI KLX 450 2009
KAWASAKI KLX 450 2008
KAWASAKI KLX 450 2007
KAWASAKI KXF 250 2019
KAWASAKI KXF 250 2018
KAWASAKI KXF 250 2017
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
SUZUKI RMZ 250 2015
SUZUKI RMZ 250 2014
SUZUKI RMZ 250 2013
SUZUKI RMZ 450 2014
SUZUKI RMZ 450 2013
