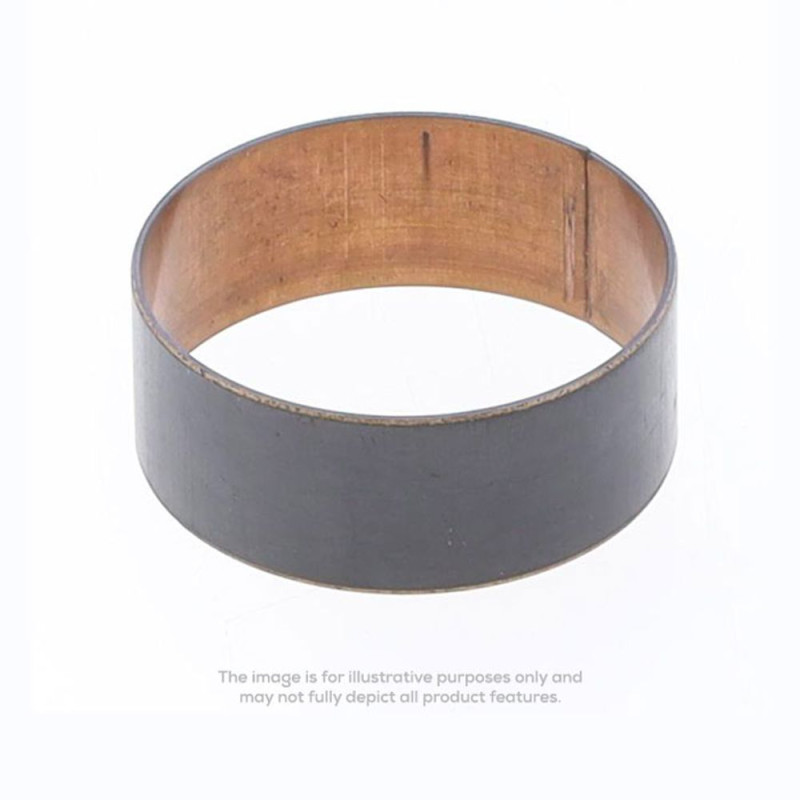

ATHENA Inner Fork Bushing for BETA RR 250, RR 300, RR 350 and GAS GAS EC 250, EC 300 2011-2015

The ATHENA S41TE48M inner fork bushing is designed for BETA RR 250, RR 300, RR 350 and GAS GAS EC 250, EC 300 from 2011 to 2015. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41TE48M
• EAN code: 8050506053934
• Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
3. Fit the new bushing in the groove, then install new oil seals.
4. Reset the fork oil level as per the manual.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455139 · ATHENA P40FORK455141
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455179 · ATHENA P40FORK455131

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RR 250 2015
BETA RR 250 2014
BETA RR 250 2013
BETA RR 300 2015
BETA RR 300 2014
BETA RR 300 2013
BETA RR 350 2015
BETA RR 350 2014
BETA RR 350 2013
BETA RR 350 2012
GAS GAS EC 250 2014
GAS GAS EC 250 2013
GAS GAS EC 250 2012
GAS GAS EC 250 2011
GAS GAS EC 300 2014
GAS GAS EC 300 2013
GAS GAS EC 300 2012
GAS GAS EC 300 2011
