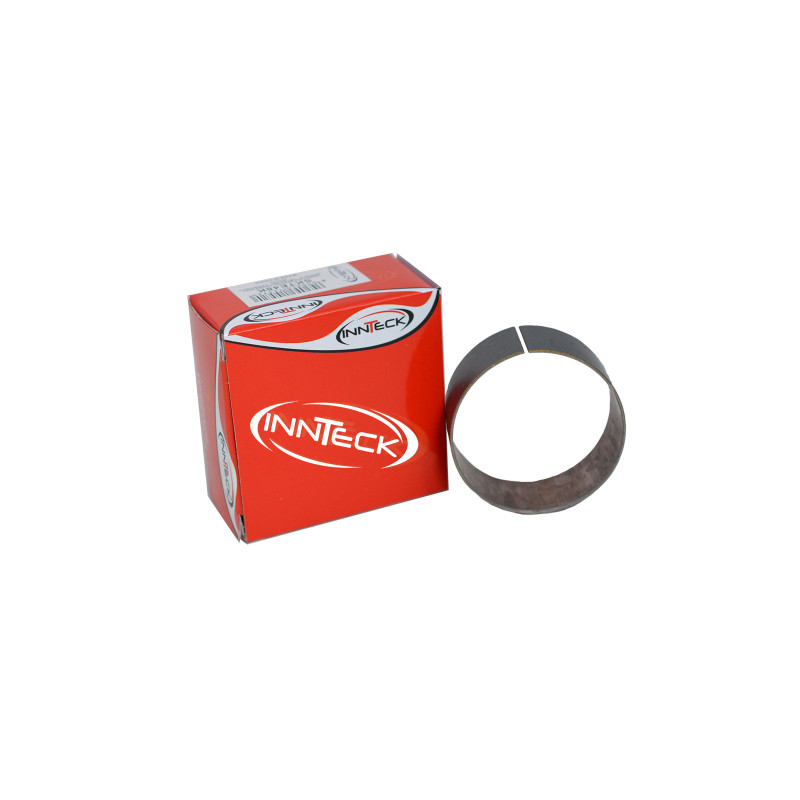

INNTECK KYB 46 mm Inner Fork Bushing for YAMAHA, KAWASAKI, HONDA and SUZUKI 1991-2007

The INNTECK KYB 46 mm SKTE46K inner fork bushing is designed for YAMAHA TT 600, WR 125, WR 250, WRF 250, WRF 400, WRF 426, WRF 450, YZ 125, YZ 250, YZF 250, YZF 400, YZF 426, YZF 450, KAWASAKI KLX 300, KLX 650, KX 125, KX 250, KX 500, HONDA CR 125, CR 250, CR 500, XR 650 and SUZUKI RM 250 from 1991 to 2007. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: INNTECK
• Manufacturer part number: SKTE46K
• EAN code: 8050040145683
• Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
3. Fit the new bushing in the groove, then install new oil seals.
4. Reset the fork oil level as per the manual.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455105 · ATHENA P40FORK455086
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455098 · ATHENA P40FORK455099

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 125 2007
HONDA CR 125 2006
HONDA CR 125 2005
HONDA CR 125 2004
HONDA CR 125 2003
HONDA CR 125 2002
HONDA CR 125 2001
HONDA CR 125 2000
HONDA CR 125 1999
HONDA CR 125 1998
HONDA CR 125 1997
HONDA CR 250 1996
HONDA CR 500 2002
HONDA CR 500 2001
HONDA CR 500 2000
HONDA CR 500 1999
HONDA CR 500 1998
HONDA CR 500 1997
HONDA CR 500 1996
HONDA CR 500 1995
HONDA XR 650 2007
HONDA XR 650 2006
HONDA XR 650 2005
HONDA XR 650 2004
HONDA XR 650 2003
HONDA XR 650 2002
HONDA XR 650 2001
HONDA XR 650 2000
KAWASAKI KLX 300 2007
KAWASAKI KLX 300 2006
KAWASAKI KLX 300 2005
KAWASAKI KLX 300 2004
KAWASAKI KLX 300 2003
KAWASAKI KLX 300 2002
KAWASAKI KLX 300 2001
KAWASAKI KLX 300 2000
KAWASAKI KLX 300 1999
KAWASAKI KLX 300 1998
KAWASAKI KLX 300 1997
KAWASAKI KLX 650 1996
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 125 1998
KAWASAKI KX 125 1997
KAWASAKI KX 125 1996
KAWASAKI KX 125 1995
KAWASAKI KX 125 1994
KAWASAKI KX 125 1993
KAWASAKI KX 125 1992
KAWASAKI KX 125 1991
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KX 250 1998
KAWASAKI KX 250 1997
KAWASAKI KX 250 1996
KAWASAKI KX 250 1995
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
YAMAHA TT 600 2003
YAMAHA TT 600 2002
YAMAHA TT 600 2001
YAMAHA TT 600 2000
YAMAHA WR 125 2003
YAMAHA WR 125 2002
YAMAHA WR 125 2001
YAMAHA WR 125 2000
YAMAHA WR 125 1999
YAMAHA WR 125 1998
YAMAHA WR 125 1997
YAMAHA WR 125 1996
YAMAHA WR 250 2003
YAMAHA WR 250 2002
YAMAHA WR 250 2001
YAMAHA WR 250 2000
YAMAHA WR 250 1999
YAMAHA WR 250 1998
YAMAHA WR 250 1997
YAMAHA WR 250 1996
YAMAHA WRF 250 2004
YAMAHA WRF 250 2003
YAMAHA WRF 250 2002
YAMAHA WRF 250 2001
YAMAHA WRF 400 1999
YAMAHA WRF 400 1998
YAMAHA WRF 426 2002
YAMAHA WRF 426 2001
YAMAHA WRF 426 2000
YAMAHA WRF 450 2004
YAMAHA WRF 450 2003
YAMAHA YZ 125 2003
YAMAHA YZ 125 2002
YAMAHA YZ 125 2001
YAMAHA YZ 125 2000
YAMAHA YZ 125 1999
YAMAHA YZ 125 1998
YAMAHA YZ 125 1997
YAMAHA YZ 125 1996
YAMAHA YZ 250 2003
YAMAHA YZ 250 2002
YAMAHA YZ 250 2001
YAMAHA YZ 250 2000
YAMAHA YZ 250 1999
YAMAHA YZ 250 1998
YAMAHA YZ 250 1997
YAMAHA YZ 250 1996
YAMAHA YZF 250 2003
YAMAHA YZF 250 2002
YAMAHA YZF 250 2001
YAMAHA YZF 400 1999
YAMAHA YZF 400 1998
YAMAHA YZF 426 2002
YAMAHA YZF 426 2001
YAMAHA YZF 426 2000
YAMAHA YZF 450 2004
YAMAHA YZF 450 2003
