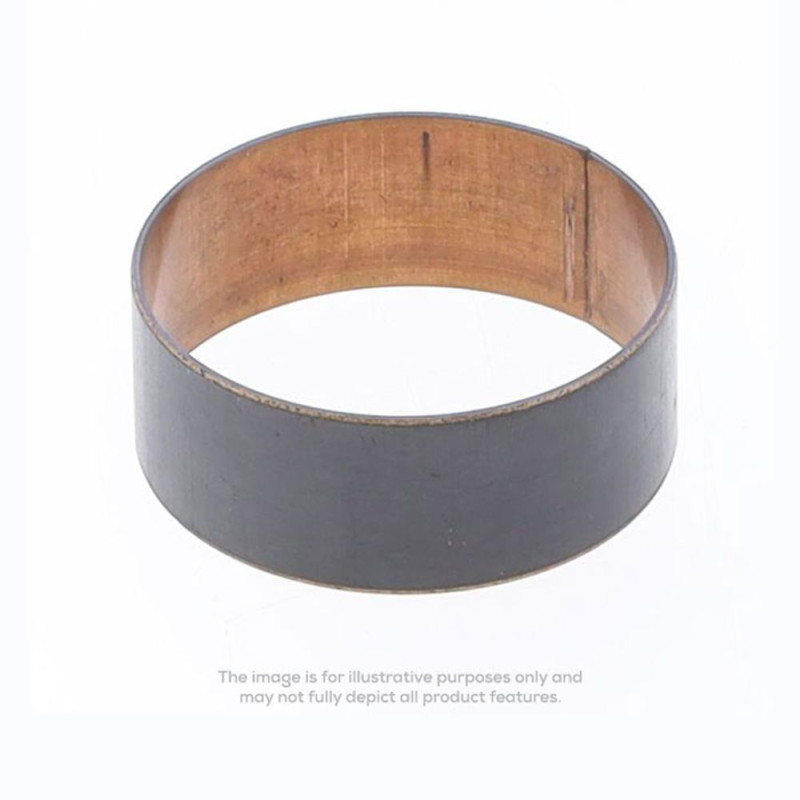

ATHENA MARZOCCHI 45 mm Inner Fork Bushing for HUSQVARNA, TM RACING, GAS GAS, KTM and BETA 1995-2011

The ATHENA MARZOCCHI 45 mm S41TE45M inner fork bushing is designed for KTM EGS 125, EGS 200, EGS 250, EGS 300, EGS 360, EXC 125, EXC 200, EXC 250, EXC 300, EXC 360, EXC 440, MXC 200, MXC 300, MXC 360, MXC 550, SX 125, SX 250, SX 360, HUSQVARNA CR 125, CR 250, TC 250, TC 450, TC 510, TC 570, TC 610, TE 250, TE 400, TE 410, TE 450, TE 510, TE 570, TE 610, TE 630, WR 125, WR 250, WR 360, TM RACING EN 125, EN 250, EN 300, EN 400, MX 125, MX 250, MX 300, MX 400, GAS GAS EC 125, EC 200, EC 250, EC 300, ECF 450, MC 125 and BETA RR 400, RR 450 from 1995 to 2011. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41TE45M
• EAN code: 8050506053897
• Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
3. Fit the new bushing in the groove, then install new oil seals.
4. Reset the fork oil level as per the manual.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455085 · ATHENA P40FORK455078
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455179 · ATHENA P40FORK455131

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RR 400 2010
BETA RR 400 2009
BETA RR 400 2008
BETA RR 400 2007
BETA RR 400 2006
BETA RR 400 2005
BETA RR 450 2010
BETA RR 450 2009
BETA RR 450 2008
BETA RR 450 2007
BETA RR 450 2006
BETA RR 450 2005
GAS GAS EC 125 2011
GAS GAS EC 125 2010
GAS GAS EC 125 2009
GAS GAS EC 125 2008
GAS GAS EC 125 2007
GAS GAS EC 125 2006
GAS GAS EC 125 2005
GAS GAS EC 125 2004
GAS GAS EC 125 2003
GAS GAS EC 200 2011
GAS GAS EC 200 2010
GAS GAS EC 200 2009
GAS GAS EC 200 2008
GAS GAS EC 200 2007
GAS GAS EC 200 2006
GAS GAS EC 200 2005
GAS GAS EC 200 2004
GAS GAS EC 200 2003
GAS GAS EC 250 2011
GAS GAS EC 250 2010
GAS GAS EC 250 2009
GAS GAS EC 250 2008
GAS GAS EC 250 2007
GAS GAS EC 250 2006
GAS GAS EC 250 2005
GAS GAS EC 250 2004
GAS GAS EC 250 2003
GAS GAS EC 300 2011
GAS GAS EC 300 2010
GAS GAS EC 300 2009
GAS GAS EC 300 2008
GAS GAS EC 300 2007
GAS GAS EC 300 2006
GAS GAS EC 300 2005
GAS GAS EC 300 2004
GAS GAS EC 300 2003
GAS GAS ECF 450 2008
GAS GAS ECF 450 2007
GAS GAS ECF 450 2006
GAS GAS ECF 450 2005
GAS GAS ECF 450 2004
GAS GAS ECF 450 2003
GAS GAS MC 125 2009
GAS GAS MC 125 2008
GAS GAS MC 125 2007
GAS GAS MC 125 2006
GAS GAS MC 125 2005
GAS GAS MC 125 2004
GAS GAS MC 125 2003
HUSQVARNA CR 125 2008
HUSQVARNA CR 125 2007
HUSQVARNA CR 125 2006
HUSQVARNA CR 125 2005
HUSQVARNA CR 125 2004
HUSQVARNA CR 125 2003
HUSQVARNA CR 125 2002
HUSQVARNA CR 125 2001
HUSQVARNA CR 125 2000
HUSQVARNA CR 125 1999
HUSQVARNA CR 125 1998
HUSQVARNA CR 125 1997
HUSQVARNA CR 125 1996
HUSQVARNA CR 250 2004
HUSQVARNA CR 250 2003
HUSQVARNA CR 250 2002
HUSQVARNA CR 250 2001
HUSQVARNA CR 250 2000
HUSQVARNA CR 250 1999
HUSQVARNA CR 250 1998
HUSQVARNA CR 250 1997
HUSQVARNA CR 250 1996
HUSQVARNA TC 250 2007
HUSQVARNA TC 250 2006
HUSQVARNA TC 250 2005
HUSQVARNA TC 250 2004
HUSQVARNA TC 250 2003
HUSQVARNA TC 450 2005
HUSQVARNA TC 450 2004
HUSQVARNA TC 450 2003
HUSQVARNA TC 510 2005
HUSQVARNA TC 570 2002
HUSQVARNA TC 570 2001
HUSQVARNA TC 610 2001
HUSQVARNA TC 610 2000
HUSQVARNA TC 610 1999
HUSQVARNA TE 250 2007
HUSQVARNA TE 250 2006
HUSQVARNA TE 250 2005
HUSQVARNA TE 250 2004
HUSQVARNA TE 250 2003
HUSQVARNA TE 400 2001
HUSQVARNA TE 410 2001
HUSQVARNA TE 410 2000
HUSQVARNA TE 410 1999
HUSQVARNA TE 410 1998
HUSQVARNA TE 410 1997
HUSQVARNA TE 410 1996
HUSQVARNA TE 450 2005
HUSQVARNA TE 450 2004
HUSQVARNA TE 450 2003
HUSQVARNA TE 510 2005
HUSQVARNA TE 510 2004
HUSQVARNA TE 570 2004
HUSQVARNA TE 570 2003
HUSQVARNA TE 570 2002
HUSQVARNA TE 570 2001
HUSQVARNA TE 610 2008
HUSQVARNA TE 610 2007
HUSQVARNA TE 610 2006
HUSQVARNA TE 610 2005
HUSQVARNA TE 610 2004
HUSQVARNA TE 610 2003
HUSQVARNA TE 610 2002
HUSQVARNA TE 610 2001
HUSQVARNA TE 610 2000
HUSQVARNA TE 610 1999
HUSQVARNA TE 630 2011
HUSQVARNA TE 630 2010
HUSQVARNA WR 125 2008
HUSQVARNA WR 125 2007
HUSQVARNA WR 125 2006
HUSQVARNA WR 125 2005
HUSQVARNA WR 125 2004
HUSQVARNA WR 125 2003
HUSQVARNA WR 125 2002
HUSQVARNA WR 125 2001
HUSQVARNA WR 125 2000
HUSQVARNA WR 125 1999
HUSQVARNA WR 125 1998
HUSQVARNA WR 125 1997
HUSQVARNA WR 125 1996
HUSQVARNA WR 250 2008
HUSQVARNA WR 250 2007
HUSQVARNA WR 250 2006
HUSQVARNA WR 250 2005
HUSQVARNA WR 250 2004
HUSQVARNA WR 250 2003
HUSQVARNA WR 250 2002
HUSQVARNA WR 250 2001
HUSQVARNA WR 250 2000
HUSQVARNA WR 250 1999
HUSQVARNA WR 360 2002
HUSQVARNA WR 360 2001
HUSQVARNA WR 360 2000
HUSQVARNA WR 360 1999
HUSQVARNA WR 360 1998
HUSQVARNA WR 360 1997
HUSQVARNA WR 360 1996
KTM EGS 125 1999
KTM EGS 125 1998
KTM EGS 125 1997
KTM EGS 125 1996
KTM EGS 200 1999
KTM EGS 200 1998
KTM EGS 250 1996
KTM EGS 250 1995
KTM EGS 300 1996
KTM EGS 300 1995
KTM EGS 360 1996
KTM EXC 125 1999
KTM EXC 125 1998
KTM EXC 125 1997
KTM EXC 125 1996
KTM EXC 200 1999
KTM EXC 200 1998
KTM EXC 250 1996
KTM EXC 250 1995
KTM EXC 300 1996
KTM EXC 300 1995
KTM EXC 360 1996
KTM EXC 440 1995
KTM MXC 200 1999
KTM MXC 200 1998
KTM MXC 300 1996
KTM MXC 360 1996
KTM MXC 550 1996
KTM SX 125 1998
KTM SX 125 1997
KTM SX 125 1996
KTM SX 250 1996
KTM SX 250 1995
KTM SX 360 1996
TM RACING EN 125 2004
TM RACING EN 125 2003
TM RACING EN 125 2002
TM RACING EN 125 2001
TM RACING EN 125 2000
TM RACING EN 125 1999
TM RACING EN 125 1998
TM RACING EN 125 1997
TM RACING EN 125 1996
TM RACING EN 250 2004
TM RACING EN 250 2003
TM RACING EN 250 2002
TM RACING EN 250 2001
TM RACING EN 250 2000
TM RACING EN 250 1999
TM RACING EN 250 1998
TM RACING EN 250 1997
TM RACING EN 250 1996
TM RACING EN 300 2004
TM RACING EN 300 2003
TM RACING EN 300 2002
TM RACING EN 300 2001
TM RACING EN 300 2000
TM RACING EN 300 1999
TM RACING EN 300 1998
TM RACING EN 300 1997
TM RACING EN 400 2003
TM RACING EN 400 2002
TM RACING MX 125 2004
TM RACING MX 125 2003
TM RACING MX 125 2002
TM RACING MX 125 2001
TM RACING MX 125 2000
TM RACING MX 125 1999
TM RACING MX 125 1998
TM RACING MX 125 1997
TM RACING MX 125 1996
TM RACING MX 250 2004
TM RACING MX 250 2003
TM RACING MX 250 2002
TM RACING MX 250 2001
TM RACING MX 250 2000
TM RACING MX 250 1999
TM RACING MX 250 1998
TM RACING MX 250 1997
TM RACING MX 250 1996
TM RACING MX 300 2004
TM RACING MX 300 2003
TM RACING MX 300 2002
TM RACING MX 300 2001
TM RACING MX 300 2000
TM RACING MX 300 1999
TM RACING MX 300 1998
TM RACING MX 300 1997
TM RACING MX 400 2003
TM RACING MX 400 2002
