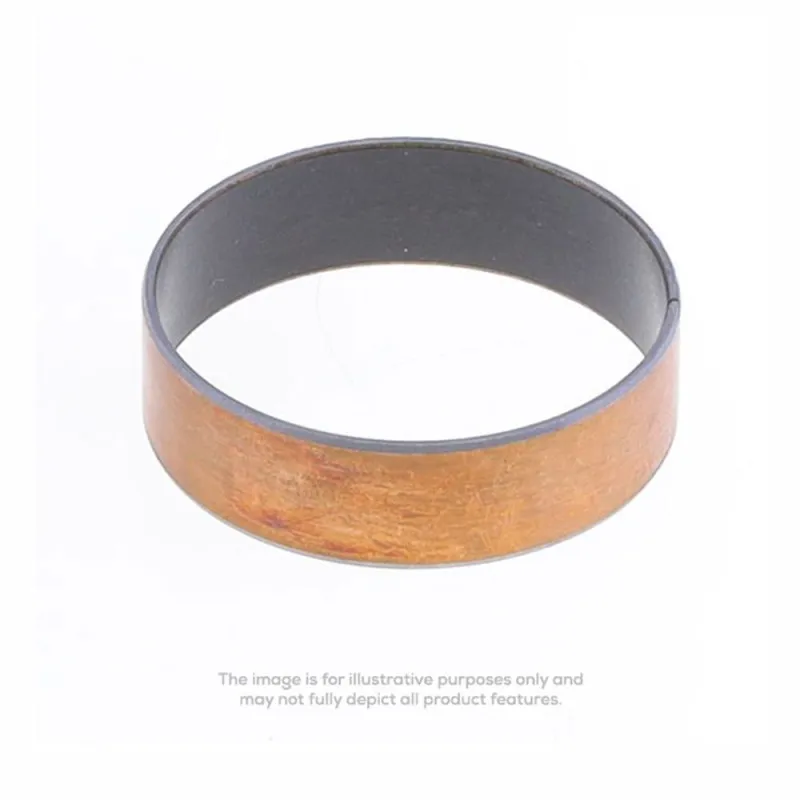

ATHENA SHOWA 48 mm Outer Fork Bushing for KAWASAKI KXF 250, HONDA CRF 250 and SUZUKI RMZ 250, RMZ 450 2010-2019

The ATHENA SHOWA 48 mm S41TI48S outer fork bushing is designed for SUZUKI RMZ 250, RMZ 450, HONDA CRF 250 and KAWASAKI KXF 250 from 2010 to 2019. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41TI48S
• EAN code: 8050506054092
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455139
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455209 · ATHENA P40FORK455131

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 250 2014
HONDA CRF 250 2013
HONDA CRF 250 2012
HONDA CRF 250 2011
HONDA CRF 250 2010
KAWASAKI KXF 250 2019
KAWASAKI KXF 250 2018
KAWASAKI KXF 250 2017
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
SUZUKI RMZ 250 2015
SUZUKI RMZ 250 2014
SUZUKI RMZ 250 2013
SUZUKI RMZ 450 2014
SUZUKI RMZ 450 2013
