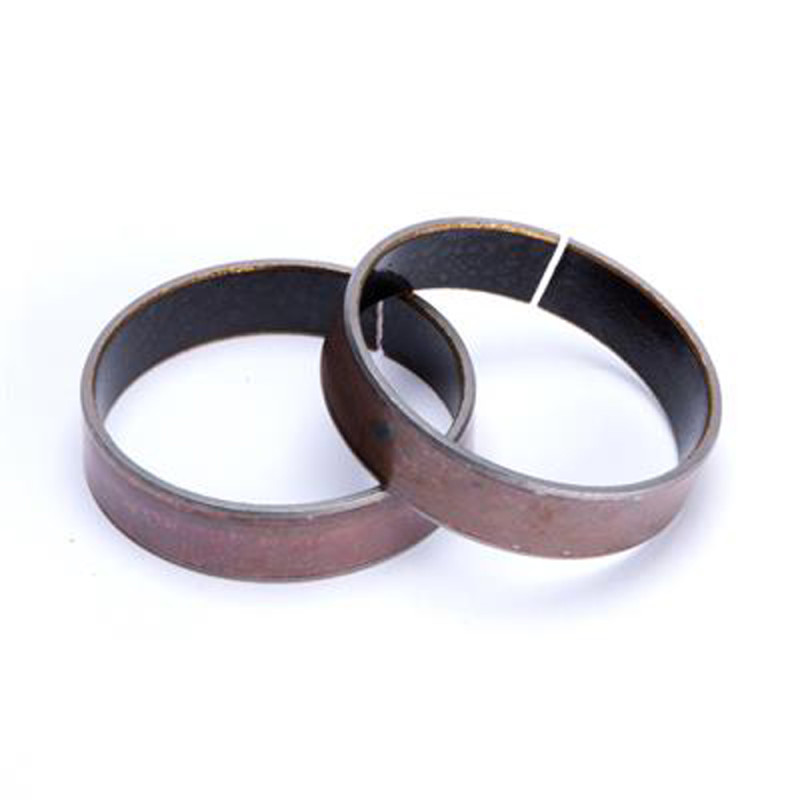

KYB Outer Fork Bushing (OEM) for YAMAHA, HONDA, KAWASAKI and SUZUKI 1989-2020

The KYB KYB-5104650 outer fork bushing is designed for YAMAHA TTR 600, WR 250, WRF 250, WRF 400, WRF 426, WRF 450, YZ 125, YZ 250, YZF 250, YZF 400, YZF 426, YZF 450, HONDA CR 125, CR 250, CR 500, XR 650, KAWASAKI KX 125, KX 250, KX 500 and SUZUKI RM 125, RM 250 from 1989 to 2020. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: KYB
• Manufacturer part number: KYB-5104650
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Why KYB?

A Japanese hydraulics specialist since 1919, KYB designs shock absorbers and forks for cars and motorcycles alike. Its motorcycle range also includes maintenance parts for its suspension: fork oil seals, fork bushings and oil.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455105 · ATHENA P40FORK455139
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455098 · ATHENA P40FORK455131

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 125 2007
HONDA CR 125 2006
HONDA CR 125 2005
HONDA CR 125 2004
HONDA CR 125 2003
HONDA CR 125 2002
HONDA CR 125 2001
HONDA CR 125 2000
HONDA CR 125 1999
HONDA CR 125 1998
HONDA CR 250 1996
HONDA CR 500 2002
HONDA CR 500 2001
HONDA CR 500 2000
HONDA CR 500 1999
HONDA CR 500 1998
HONDA CR 500 1997
HONDA CR 500 1996
HONDA XR 650 2007
HONDA XR 650 2006
HONDA XR 650 2005
HONDA XR 650 2004
HONDA XR 650 2003
HONDA XR 650 2002
HONDA XR 650 2001
HONDA XR 650 2000
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 125 1998
KAWASAKI KX 125 1997
KAWASAKI KX 125 1996
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KX 250 1998
KAWASAKI KX 250 1997
KAWASAKI KX 250 1996
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
SUZUKI RM 125 1989
SUZUKI RM 250 2002
SUZUKI RM 250 2001
YAMAHA TTR 600 2005
YAMAHA TTR 600 2004
YAMAHA WR 250 2020
YAMAHA WR 250 2019
YAMAHA WR 250 2018
YAMAHA WR 250 2017
YAMAHA WR 250 2016
YAMAHA WR 250 2015
YAMAHA WR 250 2014
YAMAHA WRF 250 2004
YAMAHA WRF 250 2003
YAMAHA WRF 250 2002
YAMAHA WRF 250 2001
YAMAHA WRF 400 2000
YAMAHA WRF 400 1999
YAMAHA WRF 426 2002
YAMAHA WRF 426 2001
YAMAHA WRF 450 2004
YAMAHA WRF 450 2003
YAMAHA YZ 125 2003
YAMAHA YZ 125 2002
YAMAHA YZ 125 2001
YAMAHA YZ 125 2000
YAMAHA YZ 125 1999
YAMAHA YZ 125 1998
YAMAHA YZ 125 1997
YAMAHA YZ 125 1996
YAMAHA YZ 250 2003
YAMAHA YZ 250 2002
YAMAHA YZ 250 2001
YAMAHA YZ 250 2000
YAMAHA YZ 250 1999
YAMAHA YZ 250 1998
YAMAHA YZ 250 1997
YAMAHA YZ 250 1996
YAMAHA YZF 250 2003
YAMAHA YZF 250 2002
YAMAHA YZF 250 2001
YAMAHA YZF 400 1999
YAMAHA YZF 400 1998
YAMAHA YZF 426 2002
YAMAHA YZF 426 2001
YAMAHA YZF 426 2000
YAMAHA YZF 450 2003
