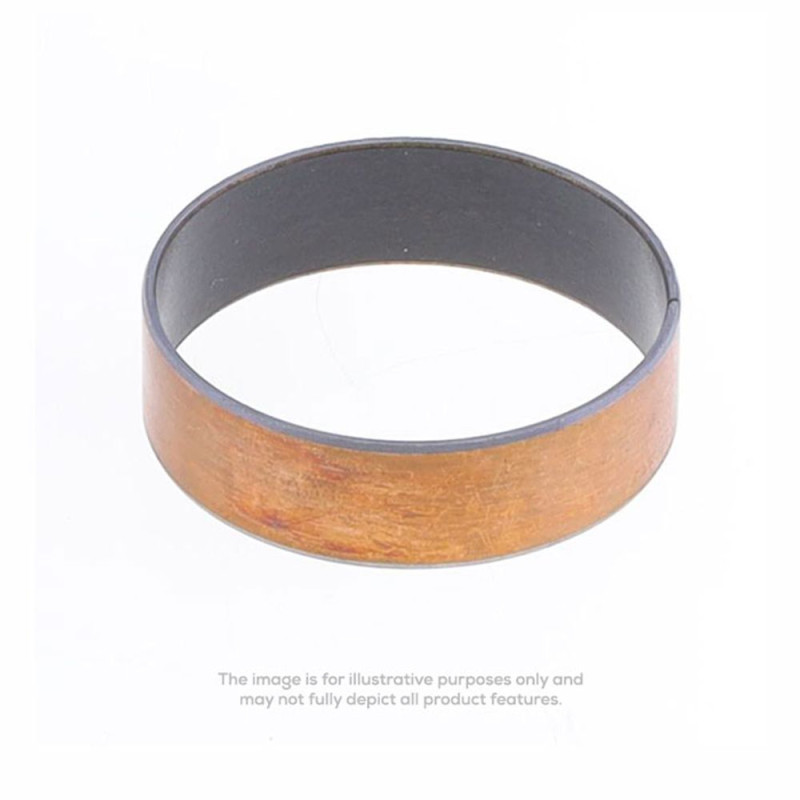

ATHENA KYB 43 mm Outer Fork Bushing for KAWASAKI, YAMAHA, HONDA, BETA and SUZUKI 1982-2024

The ATHENA KYB 43 mm S41TI43K outer fork bushing is designed for KAWASAKI KDX 200, KDX 250, KLX 250, KLX 300, KX 125, KX 250, KX 500, YAMAHA TT 600, TTR 250, XT 660, YZ 125, YZ 250, HONDA CR 125, CR 250, CR 500, XR 600, SUZUKI RM 250 and BETA XTRAINER 300 from 1982 to 2024. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41TI43K
• EAN code: 8050506054016
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Fork oil seals : SKF · ATHENA
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA · KYB

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA XTRAINER 300 2024
BETA XTRAINER 300 2023
BETA XTRAINER 300 2022
BETA XTRAINER 300 2021
BETA XTRAINER 300 2020
BETA XTRAINER 300 2019
BETA XTRAINER 300 2018
BETA XTRAINER 300 2017
BETA XTRAINER 300 2016
BETA XTRAINER 300 2015
HONDA CR 125 1996
HONDA CR 125 1995
HONDA CR 125 1994
HONDA CR 125 1986
HONDA CR 125 1985
HONDA CR 250 1995
HONDA CR 250 1982
HONDA CR 500 1995
HONDA CR 500 1994
HONDA XR 600 2000
HONDA XR 600 1999
HONDA XR 600 1998
HONDA XR 600 1997
HONDA XR 600 1996
HONDA XR 600 1995
HONDA XR 600 1994
HONDA XR 600 1993
HONDA XR 600 1992
HONDA XR 600 1991
KAWASAKI KDX 200 2020
KAWASAKI KDX 200 2019
KAWASAKI KDX 200 2018
KAWASAKI KDX 200 2017
KAWASAKI KDX 200 2016
KAWASAKI KDX 200 2015
KAWASAKI KDX 200 2014
KAWASAKI KDX 200 2013
KAWASAKI KDX 200 2012
KAWASAKI KDX 200 2011
KAWASAKI KDX 200 2010
KAWASAKI KDX 200 2009
KAWASAKI KDX 200 2008
KAWASAKI KDX 200 2007
KAWASAKI KDX 200 2006
KAWASAKI KDX 200 2005
KAWASAKI KDX 200 2004
KAWASAKI KDX 200 2003
KAWASAKI KDX 200 2002
KAWASAKI KDX 200 2001
KAWASAKI KDX 200 2000
KAWASAKI KDX 200 1999
KAWASAKI KDX 200 1998
KAWASAKI KDX 200 1997
KAWASAKI KDX 200 1996
KAWASAKI KDX 200 1995
KAWASAKI KDX 200 1994
KAWASAKI KDX 200 1993
KAWASAKI KDX 200 1992
KAWASAKI KDX 200 1991
KAWASAKI KDX 250 2000
KAWASAKI KDX 250 1999
KAWASAKI KDX 250 1998
KAWASAKI KDX 250 1997
KAWASAKI KDX 250 1996
KAWASAKI KDX 250 1995
KAWASAKI KDX 250 1994
KAWASAKI KDX 250 1993
KAWASAKI KDX 250 1992
KAWASAKI KDX 250 1991
KAWASAKI KLX 250 2016
KAWASAKI KLX 250 2015
KAWASAKI KLX 250 2014
KAWASAKI KLX 250 2013
KAWASAKI KLX 250 2012
KAWASAKI KLX 250 2011
KAWASAKI KLX 250 2010
KAWASAKI KLX 250 2009
KAWASAKI KLX 250 2008
KAWASAKI KLX 250 2007
KAWASAKI KLX 250 2006
KAWASAKI KLX 250 1996
KAWASAKI KLX 250 1995
KAWASAKI KLX 250 1994
KAWASAKI KLX 250 1993
KAWASAKI KLX 300 2003
KAWASAKI KLX 300 2002
KAWASAKI KLX 300 2001
KAWASAKI KLX 300 2000
KAWASAKI KLX 300 1999
KAWASAKI KLX 300 1998
KAWASAKI KLX 300 1997
KAWASAKI KLX 300 1996
KAWASAKI KX 125 1995
KAWASAKI KX 125 1994
KAWASAKI KX 125 1993
KAWASAKI KX 125 1992
KAWASAKI KX 125 1991
KAWASAKI KX 250 1995
KAWASAKI KX 250 1994
KAWASAKI KX 250 1993
KAWASAKI KX 250 1992
KAWASAKI KX 250 1991
KAWASAKI KX 250 1989
KAWASAKI KX 250 1988
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
SUZUKI RM 250 1990
SUZUKI RM 250 1989
SUZUKI RM 250 1988
SUZUKI RM 250 1987
YAMAHA TT 600 1996
YAMAHA TT 600 1995
YAMAHA TT 600 1994
YAMAHA TT 600 1993
YAMAHA TT 600 1992
YAMAHA TT 600 1991
YAMAHA TT 600 1990
YAMAHA TT 600 1989
YAMAHA TTR 250 2006
YAMAHA TTR 250 2005
YAMAHA TTR 250 2004
YAMAHA XT 660 2016
YAMAHA XT 660 2015
YAMAHA XT 660 2014
YAMAHA XT 660 2013
YAMAHA XT 660 2012
YAMAHA XT 660 2011
YAMAHA XT 660 2010
YAMAHA XT 660 2009
YAMAHA XT 660 2008
YAMAHA XT 660 2007
YAMAHA XT 660 2006
YAMAHA XT 660 2005
YAMAHA XT 660 2004
YAMAHA YZ 125 1995
YAMAHA YZ 125 1994
YAMAHA YZ 125 1993
YAMAHA YZ 125 1992
YAMAHA YZ 125 1991
YAMAHA YZ 125 1988
YAMAHA YZ 250 1995
YAMAHA YZ 250 1994
YAMAHA YZ 250 1993
YAMAHA YZ 250 1992
