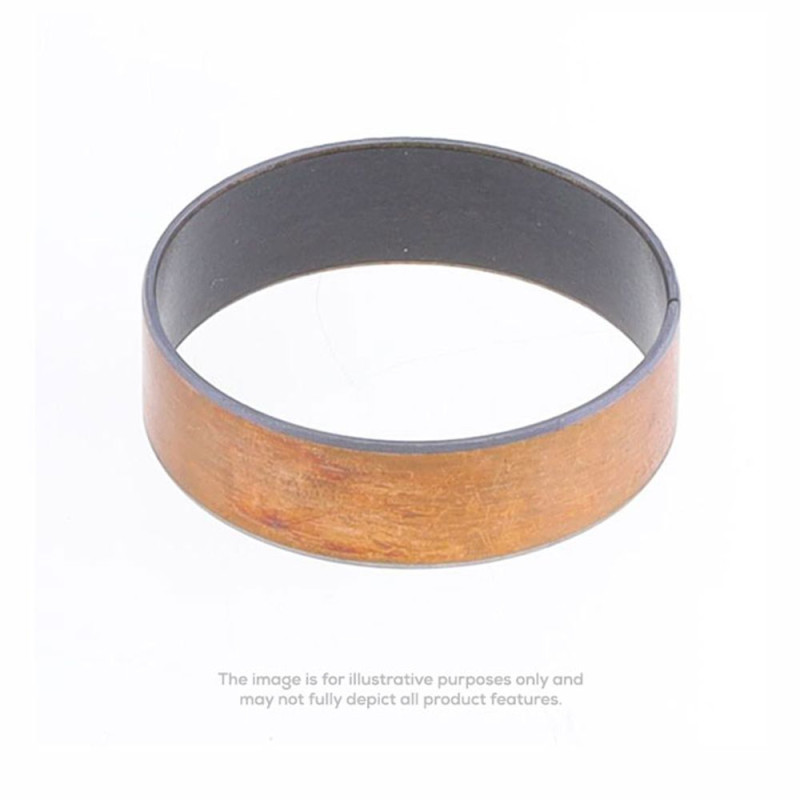

ATHENA Outer Fork Bushing for BETA RR 250, RR 300, RR 350 and GAS GAS EC 250, EC 300 2011-2015

On BETA RR 250, RR 300, RR 350 and GAS GAS EC 250, EC 300 from 2011 to 2015, the ATHENA S41TI48M outer fork bushing fits in place of the original part. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41TI48M
• EAN code: 8050506054085
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455139 · ATHENA P40FORK455141
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455179 · ATHENA P40FORK455131

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RR 250 2015
BETA RR 250 2014
BETA RR 250 2013
BETA RR 300 2015
BETA RR 300 2014
BETA RR 300 2013
BETA RR 350 2015
BETA RR 350 2014
BETA RR 350 2013
BETA RR 350 2012
GAS GAS EC 250 2014
GAS GAS EC 250 2013
GAS GAS EC 250 2012
GAS GAS EC 250 2011
GAS GAS EC 300 2014
GAS GAS EC 300 2013
GAS GAS EC 300 2012
GAS GAS EC 300 2011
