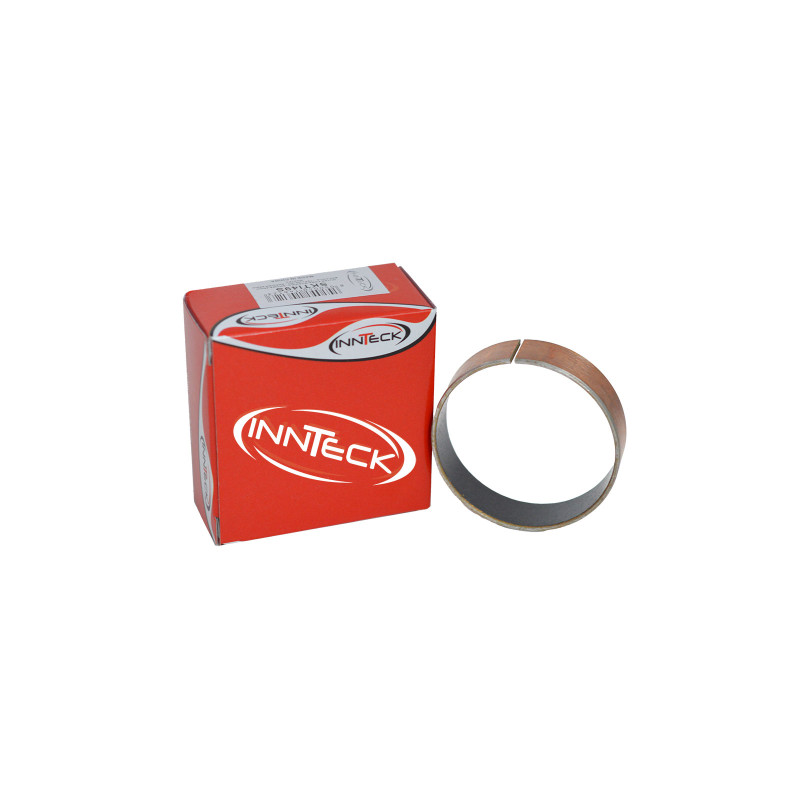

INNTECK KYB 46 mm Outer Fork Bushing (older type) for YAMAHA WRF 250, WRF 450 and SUZUKI RM 250 2003-2004

The INNTECK SKTI46KO outer fork bushing is designed for YAMAHA WRF 250, WRF 450 and SUZUKI RM 250 from 2003 to 2004. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: INNTECK
• Manufacturer part number: SKTI46KO
• EAN code: 8050040146000
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Spare parts and items to plan

• Fork oil seals : ATHENA · SKF
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455131 · ATHENA P40FORK455120

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 250 2003
YAMAHA WRF 250 2004
YAMAHA WRF 450 2004
