INNTECK Launch Master Holeshot Device for KAWASAKI KX 80, KX 85, KX 100 1998-2010

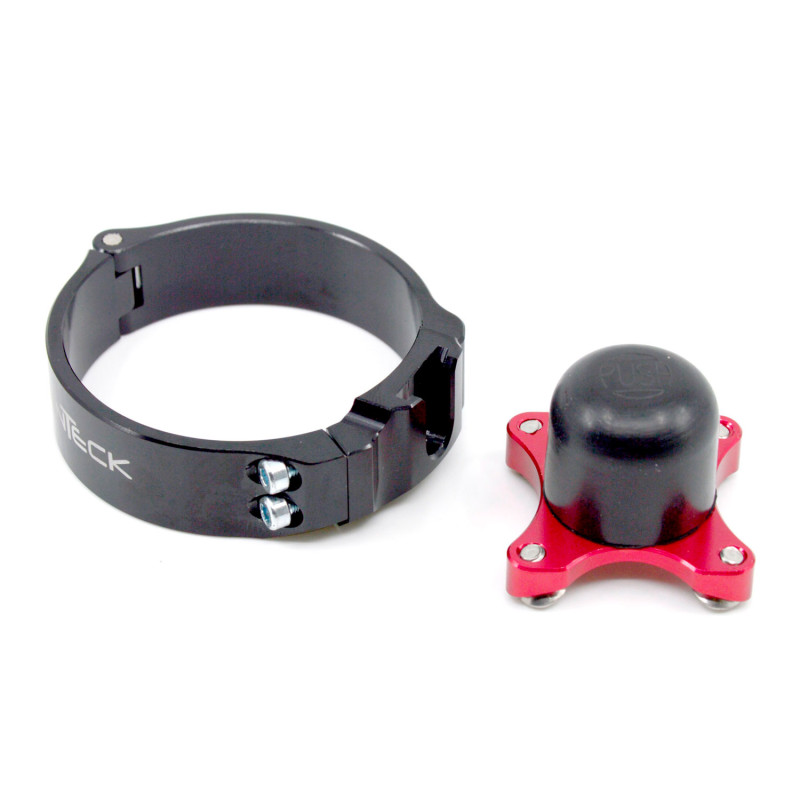

The INNTECK Launch Master ALM-304 holeshot device is designed for KAWASAKI KX 80, KX 85, KX 100 from 1998 to 2010. The holeshot device keeps the fork compressed on the starting gate. The front end sits lower, the bike wheelies less on acceleration and you can open the throttle earlier and harder. The fork releases by itself on the first compression, under braking or on the first bump.

Specifications

• Brand: INNTECK
• Manufacturer part number: ALM-304
• EAN code: 8050040141838

Who is it for?

• You race motocross and want to win the starts.
• Your bike rears up at the start and makes you meter the throttle.
• Your old system is broken or no longer locks.

Good to know

Check the type and diameter of your fork (given in the name): the device fits on the fork leg and has to match exactly. Some race regulations govern start devices: check the rules for your class.

Fitting tips

1. Clean the fork leg where the device will mount.
2. Position the device as per the instructions, without pinching the brake hose or touching the fork guard.
3. Tighten to the specified torque, then test: compress the fork, engage the device and check that it releases properly on the next compression.

Spare parts and items to plan

• Fork guards : RACETECH
• Fork oil seals : ATHENA P40FORK455035 · ATHENA P40FORK455031

Frequently asked questions

Do I have to disengage it by hand?
No: it releases when the fork compresses a little further, under braking or on the first bump. Never ride with a device that does not release.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 85 2010
KAWASAKI KX 85 2009
KAWASAKI KX 85 2008
KAWASAKI KX 85 2007
KAWASAKI KX 85 2006
KAWASAKI KX 85 2005
KAWASAKI KX 85 2004
KAWASAKI KX 85 2003
KAWASAKI KX 85 2002
KAWASAKI KX 85 2001
KAWASAKI KX 100 2010
KAWASAKI KX 100 2009
KAWASAKI KX 100 2008
KAWASAKI KX 100 2007
KAWASAKI KX 100 2006
KAWASAKI KX 100 2005
KAWASAKI KX 100 2004
KAWASAKI KX 100 2003
KAWASAKI KX 100 2002
KAWASAKI KX 100 2001
KAWASAKI KX 100 2000
KAWASAKI KX 100 1999
KAWASAKI KX 100 1998
