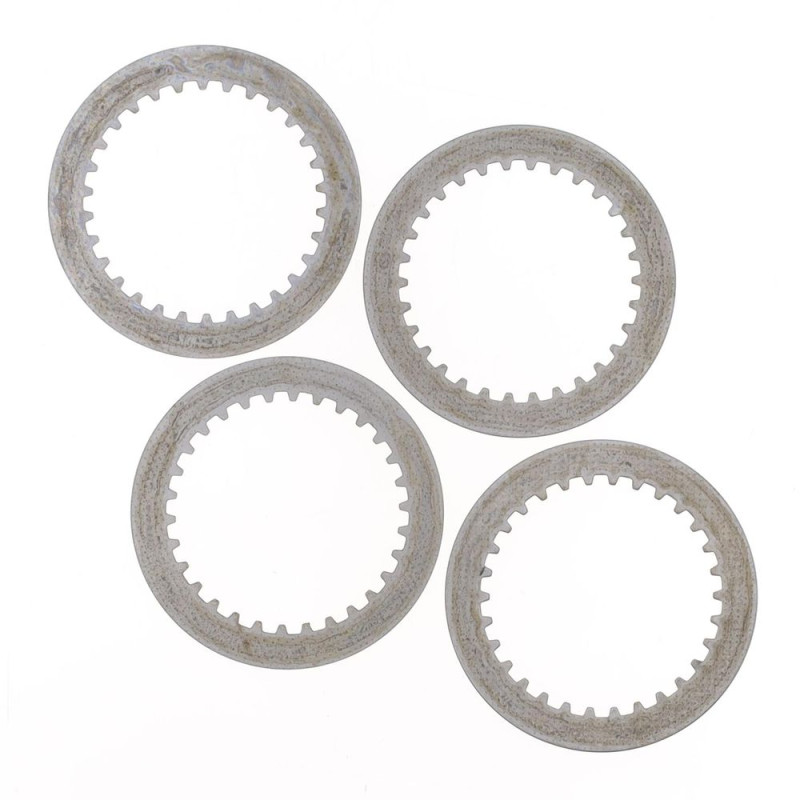

ATHENA Clutch Steel Plate Kit for KAWASAKI KX 60, KX 65 and SUZUKI RM 60, RM 65 1983-2020

The ATHENA P40240032 clutch steel plate kit is designed for KAWASAKI KX 60, KX 65 and SUZUKI RM 60, RM 65 from 1983 to 2020. In the clutch, the steel plates alternate with the friction plates. When the clutch overheats, they turn blue and warp: the clutch drags, judders or no longer disengages cleanly.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40240032
• EAN code: 8052780271691
• Weight: 190 g
• Engine: 2-stroke

When to replace it?

• Clutch that drags or judders, neutral hard to find with the engine hot.
• Plates blued, glazed or marked at the tabs.
• Warpage out of tolerance, measured with a feeler gauge on a surface plate (or a sheet of glass).

Every time you replace the friction plates, if the steel plates are warped or blued, and after a bad bout of clutch slip.

Fitting tips

1. Oil the plates before fitting them.
2. Alternate friction plates and steel plates in the original order, without leaving one out.
3. Check the clutch springs and tighten to the manufacturer's torque.
4. Close up with a new clutch cover gasket and fresh gearbox oil.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Clutch plates : PROX · INNTECK
• Clutch springs : TOURMAX · PROX
• Clutch cover gasket : CENTAURO · ATHENA
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 1 L

Frequently asked questions

Should the friction plates be replaced at the same time?
If they're close to the minimum thickness, yes: new friction plates and new steel plates give you a clutch that's as good as new.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 60 2003
KAWASAKI KX 60 2002
KAWASAKI KX 60 2001
KAWASAKI KX 60 2000
KAWASAKI KX 60 1999
KAWASAKI KX 60 1998
KAWASAKI KX 60 1997
KAWASAKI KX 60 1996
KAWASAKI KX 60 1995
KAWASAKI KX 60 1994
KAWASAKI KX 60 1993
KAWASAKI KX 60 1992
KAWASAKI KX 60 1991
KAWASAKI KX 60 1990
KAWASAKI KX 60 1989
KAWASAKI KX 60 1988
KAWASAKI KX 60 1987
KAWASAKI KX 60 1986
KAWASAKI KX 60 1985
KAWASAKI KX 60 1984
KAWASAKI KX 60 1983
KAWASAKI KX 65 2020
KAWASAKI KX 65 2019
KAWASAKI KX 65 2018
KAWASAKI KX 65 2017
KAWASAKI KX 65 2016
KAWASAKI KX 65 2015
KAWASAKI KX 65 2014
KAWASAKI KX 65 2013
KAWASAKI KX 65 2012
KAWASAKI KX 65 2011
KAWASAKI KX 65 2010
KAWASAKI KX 65 2009
KAWASAKI KX 65 2008
KAWASAKI KX 65 2007
KAWASAKI KX 65 2006
KAWASAKI KX 65 2005
KAWASAKI KX 65 2004
KAWASAKI KX 65 2003
KAWASAKI KX 65 2002
KAWASAKI KX 65 2001
KAWASAKI KX 65 2000
SUZUKI RM 60 2003
SUZUKI RM 65 2006
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
