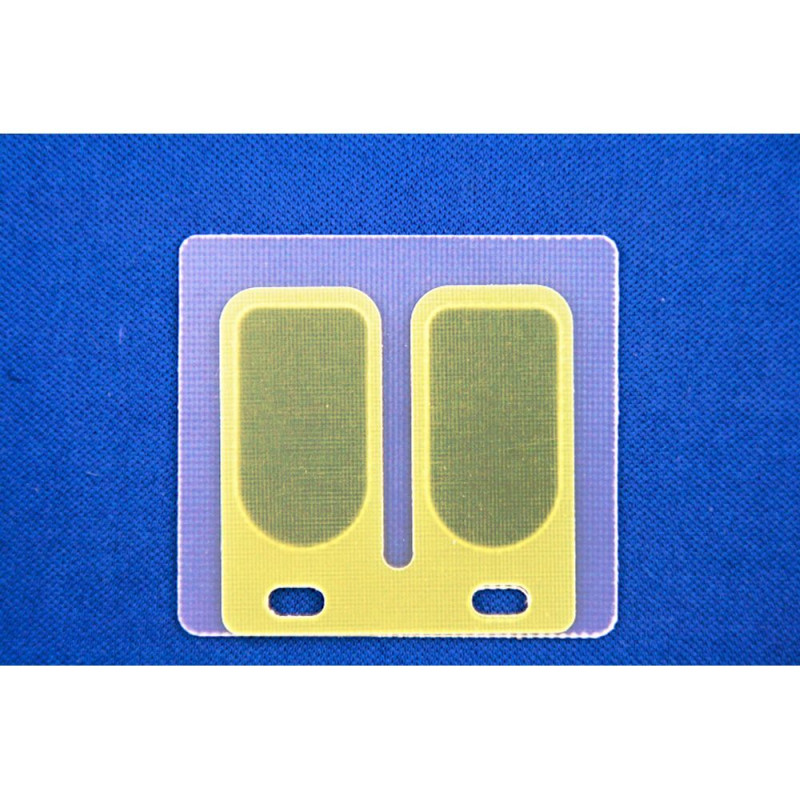

BOYESEN Reed Petals for OEM reed valve for YAMAHA YZ 80 and KAWASAKI KX 80 1986-1992

The BOYESEN BOY630 set of reed petals is designed for YAMAHA YZ 80 and KAWASAKI KX 80 from 1986 to 1992. In a two-stroke, the petals of the reed valve block open to let the mixture into the crankcase, then close to stop it coming back out. Tired or chipped petals don't close properly: the engine loses bottom end and sharpness.

Key features

• Designed to fit the stock reed block.
• Designed for Boyesen reed blocks.
• Made in the USA.

Specifications

• Brand: BOYESEN
• Manufacturer part number: BOY630
• EAN code: 804429003273
• Weight: 300 g
• Engine: 2-stroke

When to replace it?

• Petal tips chipped, split or frayed.
• Petals no longer sitting flat on the cage (visible gap).
• Weak pick-up at low revs, hard starting.

Inspect the petals at least once a season and at every piston change; replace them as soon as a tip is damaged.

Fitting tips

1. Remove the reed valve block and clean the cage.
2. Fit the petals the right way round and tighten the petal screws with threadlocker to the recommended torque.
3. Check that the petals sit flat on the cage before refitting.
4. Refit with a new reed block gasket.

Why BOYESEN?

Boyesen is an American brand specialising in the intake and the engine covers of two-stroke engines: reed petals, RAD Valve reed blocks, engine covers and Supercooler water pumps.

Spare parts and items to plan

• Reed block gasket : V FORCE
• Spark plug : NGK 3530 · NGK 6801
• Carburettor repair kit : see the selection

Frequently asked questions

Do I need to re-jet?
Usually not on a well-tuned engine; check the colour of the spark plug after the first few rides.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 1987
KAWASAKI KX 80 1986
YAMAHA YZ 80 1992
YAMAHA YZ 80 1991
YAMAHA YZ 80 1990
YAMAHA YZ 80 1989
YAMAHA YZ 80 1988
YAMAHA YZ 80 1987
