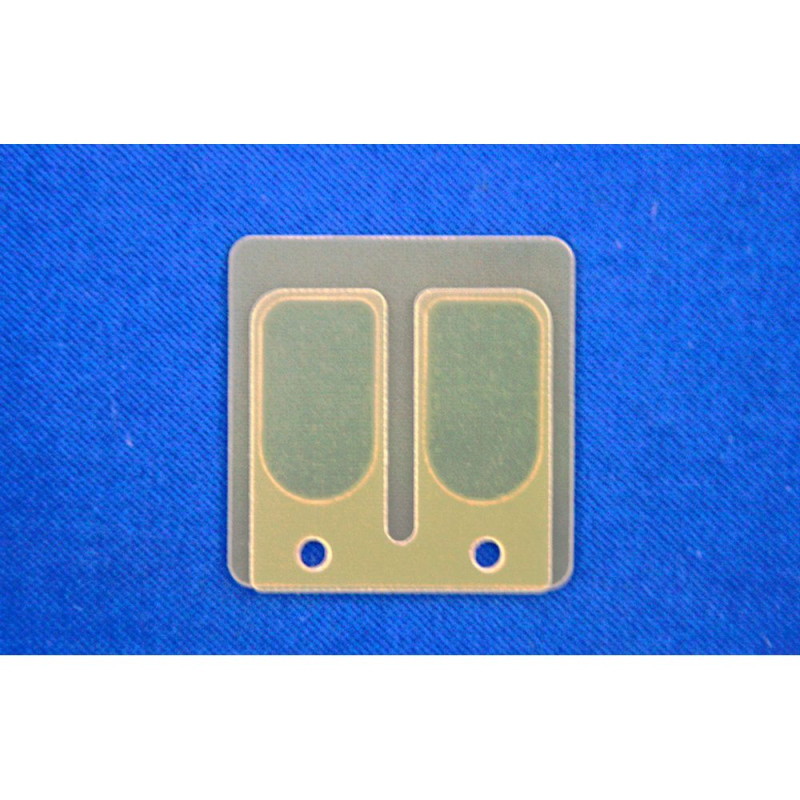

BOYESEN Reed Petals for OEM reed valve for KAWASAKI KX 60, HUSQVARNA CR 250 and SUZUKI RM 60 1983-2004

On KAWASAKI KX 60, SUZUKI RM 60 and HUSQVARNA CR 250 from 1983 to 2004, the BOYESEN BOY622 set of reed petals fits in place of the original part. The reeds control the intake of a two-stroke engine. Over the hours, the petals tire, split or fray at the tips: the engine responds less well to the throttle and is harder to start.

Key features

• Designed to fit the stock reed block.
• Designed for Boyesen reed blocks.
• Made in the USA.

Specifications

• Brand: BOYESEN
• Manufacturer part number: BOY622
• EAN code: 804429003198
• Weight: 300 g
• Engine: 2-stroke

When to replace it?

• Petal tips chipped, split or frayed.
• Petals no longer sitting flat on the cage (visible gap).
• Weak pick-up at low revs, hard starting.

Inspect the petals at least once a season and at every piston change; replace them as soon as a tip is damaged.

Fitting tips

1. Remove the reed valve block and clean the cage.
2. Fit the petals the right way round and tighten the petal screws with threadlocker to the recommended torque.
3. Check that the petals sit flat on the cage before refitting.
4. Refit with a new reed block gasket.

Why BOYESEN?

Boyesen is an American brand specialising in the intake and the engine covers of two-stroke engines: reed petals, RAD Valve reed blocks, engine covers and Supercooler water pumps.

Spare parts and items to plan

• Reed block gasket : V FORCE
• Spark plug : NGK 3230 · NGK 3530
• Carburettor repair kit : see the selection

Frequently asked questions

Do I need to re-jet?
Usually not on a well-tuned engine; check the colour of the spark plug after the first few rides.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA CR 250 2002
HUSQVARNA CR 250 2001
HUSQVARNA CR 250 2000
HUSQVARNA CR 250 1999
KAWASAKI KX 60 2004
KAWASAKI KX 60 2003
KAWASAKI KX 60 2002
KAWASAKI KX 60 2001
KAWASAKI KX 60 2000
KAWASAKI KX 60 1999
KAWASAKI KX 60 1998
KAWASAKI KX 60 1997
KAWASAKI KX 60 1996
KAWASAKI KX 60 1995
KAWASAKI KX 60 1994
KAWASAKI KX 60 1993
KAWASAKI KX 60 1992
KAWASAKI KX 60 1991
KAWASAKI KX 60 1990
KAWASAKI KX 60 1989
KAWASAKI KX 60 1988
KAWASAKI KX 60 1987
KAWASAKI KX 60 1986
KAWASAKI KX 60 1985
KAWASAKI KX 60 1984
KAWASAKI KX 60 1983
SUZUKI RM 60 2004
SUZUKI RM 60 2003
