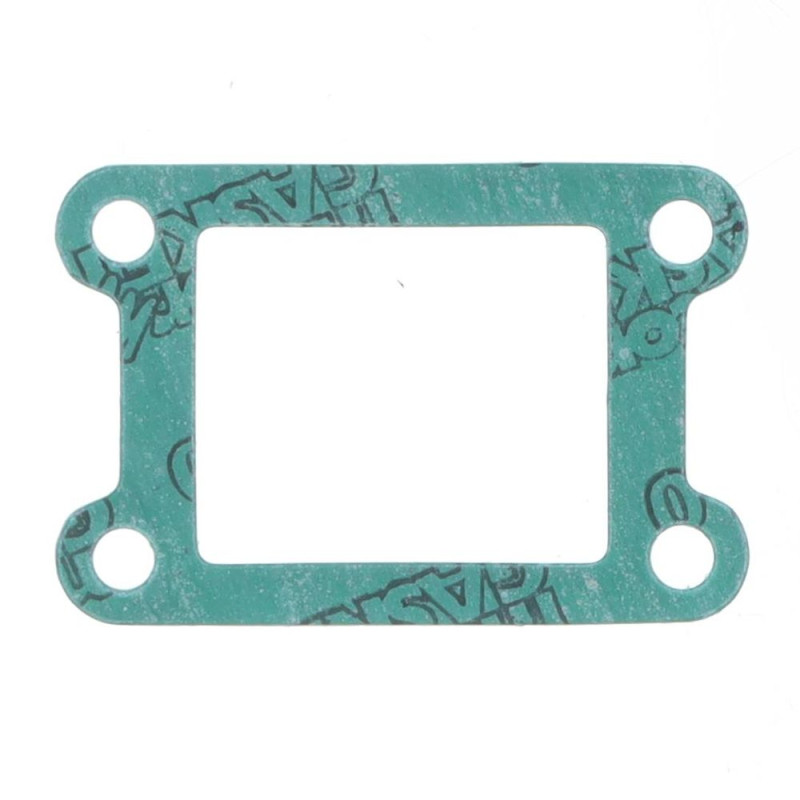

ATHENA Intake Gasket for BETA RR 50, RIEJU MRT 50 and APRILIA MX 50, RX 50 1995-2024

The ATHENA S410130010012 intake gasket is designed for APRILIA MX 50, RX 50, BETA RR 50 and RIEJU MRT 50 from 1995 to 2024. The intake gasket seals between the intake manifold, the reed valve block or the throttle body and the engine. A leak here lets in unmetered air: the engine runs lean, the idle becomes unstable and the engine runs hot.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410130010012
• EAN code: 8051757026180
• Weight: 30 g
• Engine: 2-stroke

When to replace it?

• Unstable idle or idle that creeps up on its own, hanging revs.
• Engine running hot or pinking: mixture too lean.
• Gasket crushed or split on removal.

Every time the intake manifold or reed valve block is removed, and as soon as an air leak is suspected.

Fitting tips

1. Clean the gasket faces without scratching them.
2. Fit the gasket dry and properly centred.
3. Tighten the screws in a criss-cross pattern, gradually, to the manufacturer's torque.
4. Take the opportunity to check the reed petals: a chipped or split tip must be replaced straight away.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Reed petals : ATHENA · BOYESEN
• Carburettor repair kit : see the selection
• Spark plug : NGK 3961 · NGK 5722

Frequently asked questions

How do I find an air leak?
With the engine idling, spray a little brake cleaner around the intake: if the revs change, air is getting in at that spot.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA MX 50 2004
APRILIA MX 50 2003
APRILIA MX 50 2002
APRILIA RX 50 2004
APRILIA RX 50 2003
APRILIA RX 50 2002
APRILIA RX 50 2001
APRILIA RX 50 2000
APRILIA RX 50 1999
APRILIA RX 50 1998
APRILIA RX 50 1997
APRILIA RX 50 1996
APRILIA RX 50 1995
BETA RR 50 2024
BETA RR 50 2023
BETA RR 50 2022
BETA RR 50 2021
BETA RR 50 2020
BETA RR 50 2019
BETA RR 50 2018
BETA RR 50 2017
BETA RR 50 2016
BETA RR 50 2015
BETA RR 50 2014
BETA RR 50 2013
BETA RR 50 2012
BETA RR 50 2011
BETA RR 50 2010
BETA RR 50 2009
BETA RR 50 2008
BETA RR 50 2007
BETA RR 50 2006
BETA RR 50 2005
BETA RR 50 2004
BETA RR 50 2003
BETA RR 50 2002
BETA RR 50 2001
BETA RR 50 2000
BETA RR 50 1999
BETA RR 50 1998
RIEJU MRT 50 2024
RIEJU MRT 50 2023
RIEJU MRT 50 2022
RIEJU MRT 50 2021
RIEJU MRT 50 2020
RIEJU MRT 50 2019
RIEJU MRT 50 2018
RIEJU MRT 50 2017
RIEJU MRT 50 2016
RIEJU MRT 50 2015
RIEJU MRT 50 2014
RIEJU MRT 50 2013
RIEJU MRT 50 2012
RIEJU MRT 50 2011
RIEJU MRT 50 2010
RIEJU MRT 50 2009
