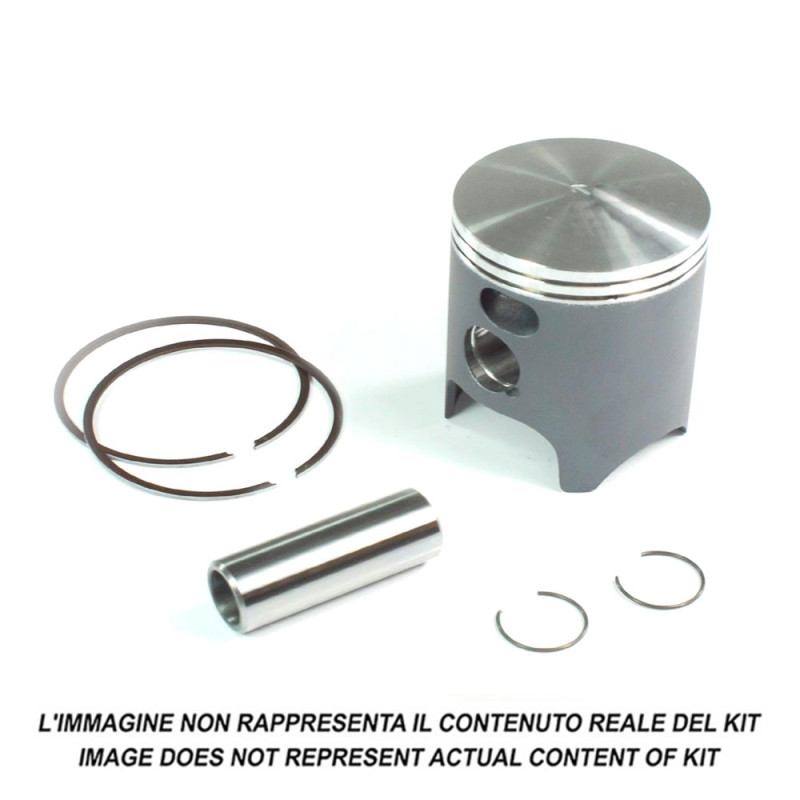

WÖSSNER Piston Kit for SHERCO SE 125 2017-2023

WÖSSNER offers this piston kit for SHERCO SE 125 2017-2023. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why replace the piston?

The benefits:

• Restore compression, power and easy starting.
• A piston of the right size keeps the intended clearance in the cylinder: less noise and less oil consumption.
• A new piston with rings, pin and clips: nothing to reuse from the old one.

Why choose WÖSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston on your SHERCO SE 125?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.

Specifications and fitting tips

• Manufacturer part numbers: 8303DA (A), 8303DB (B), 8303DC (C)

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 53.93 mm, B = 53.94 mm, C = 53.95 mm.

Spare parts and items to plan

• Piston rings : PROX
• Top-end gasket kit : ATHENA P400462600004 · ATHENA R4626-004
• Small end needle bearing : ATHENA
• Coolant : TWIN AIR 1 L · MOTUL 1 L
• 2-stroke oil : LIQUI MOLY 1 L · MOTUL 800 1 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SHERCO SE 125 2023
SHERCO SE 125 2022
SHERCO SE 125 2021
SHERCO SE 125 2020
SHERCO SE 125 2019
SHERCO SE 125 2018
SHERCO SE 125 2017
