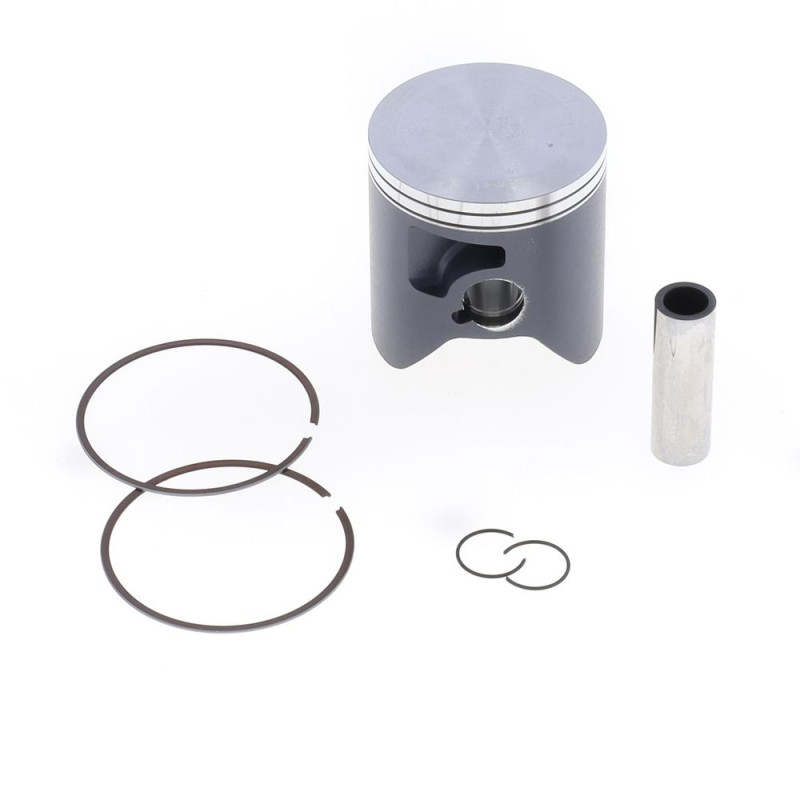

ATHENA Cast Piston for SHERCO SE 300 2016-2025

ATHENA offers this piston kit for SHERCO SE 300 2016-2025. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why a cast piston?

A cast piston is moulded from a high-silicon aluminium alloy, then machined.

• Low expansion: it runs with a tight clearance, stays quiet when cold and warms up quickly.
• Durability: an excellent choice for a stock engine used for leisure or enduro.
• Price: more affordable than a forged piston.
• Good to know: it copes less well with overheating and extreme revs than a forged one.

Why choose ATHENA?

Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.

When should you replace the piston on your SHERCO SE 300?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.

Specifications and fitting tips

• Engine: 2-stroke
• Manufacturer part numbers: S4C07200004A (A), S4C07200004B (B), S4C07200004C (C), S4C07200004D (D)

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 71.95 mm, B = 71.96 mm, C = 71.97 mm, D = 71.98 mm.

Spare parts and items to plan

• Piston pin : WOSSNER
• Piston pin clips : WISECO
• Top-end gasket kit : ATHENA M752007700085 · ATHENA M752010700004
• Coolant : MOTUL 1 L · MOTUL 20 L
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SHERCO SE 300 2025
SHERCO SE 300 2024
SHERCO SE 300 2023
SHERCO SE 300 2022
SHERCO SE 300 2021
SHERCO SE 300 2020
SHERCO SE 300 2019
SHERCO SE 300 2018
SHERCO SE 300 2017
SHERCO SE 300 2016
