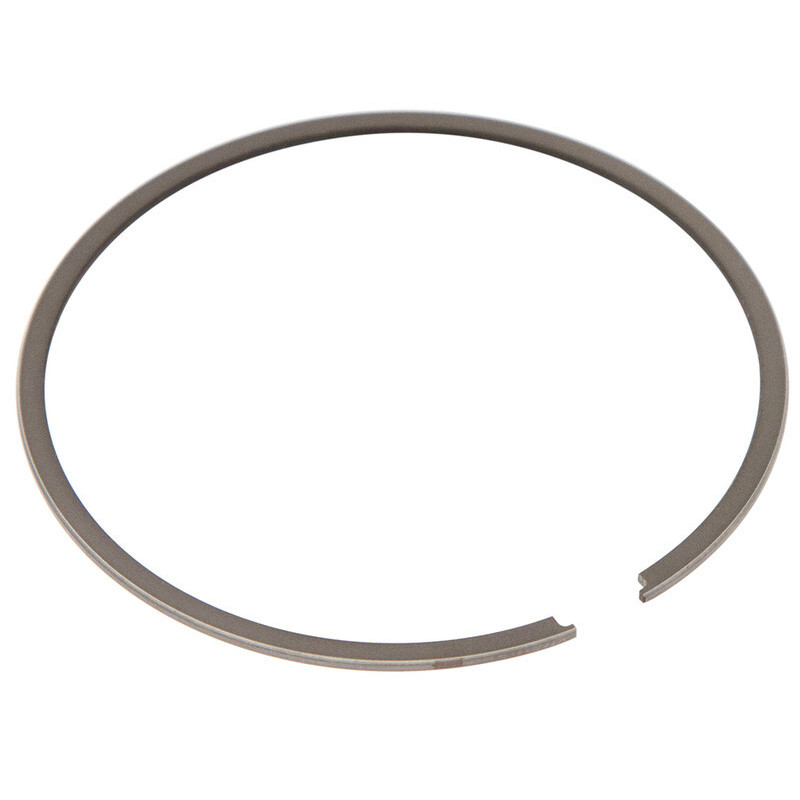

VERTEX Piston Ring Ø55.95 mm for FANTIC XE 125, XX 125 and YAMAHA YZ 125 2021-2027

VERTEX offers this piston ring set for FANTIC XE 125, XX 125 and YAMAHA YZ 125 2021-2027. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy.

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.

Specifications and fitting tips

• Manufacturer part number: 53010005600

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : ATHENA S4C04450001 · ATHENA S4C05800001
• Top-end gasket kit : ATHENA 150 · ATHENA
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
FANTIC XE 125 2024
FANTIC XE 125 2023
FANTIC XE 125 2022
FANTIC XE 125 2021
FANTIC XX 125 2026
FANTIC XX 125 2025
FANTIC XX 125 2024
FANTIC XX 125 2023
FANTIC XX 125 2022
FANTIC XX 125 2021
YAMAHA YZ 125 2027
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
