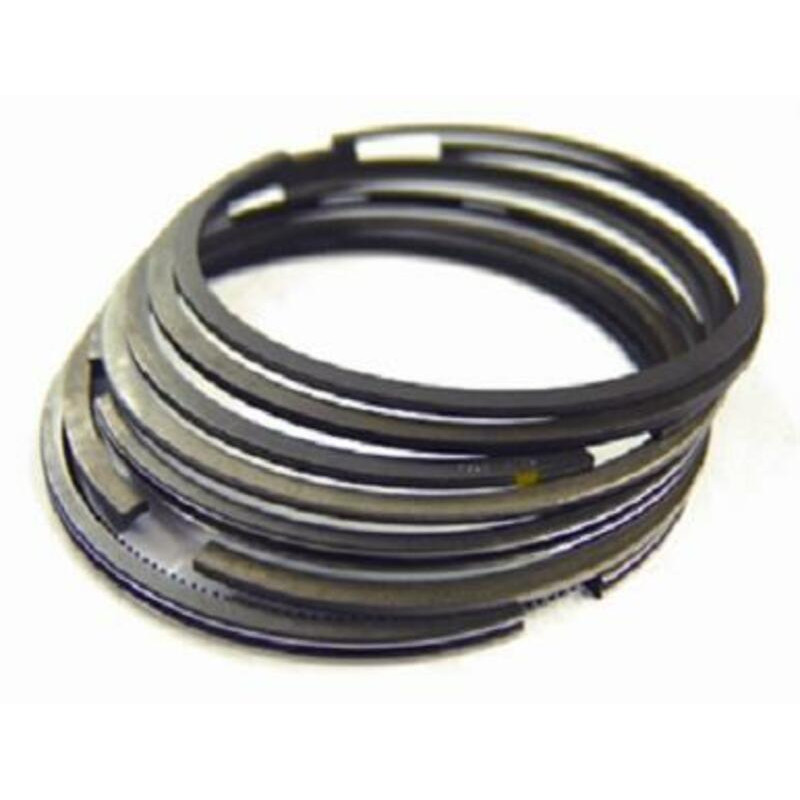

Wössner Piston Rings Set Ø50mm for SUZUKI RM 80, TS 80 ER, TS 80 X and YAMAHA YZ 80 1980-1992

WOSSNER offers this piston ring set for SUZUKI RM 80, TS 80 ER, TS 80 X and YAMAHA YZ 80 1980-1992. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the Suzuki RM 80 / RM 85):

• Racing: every 18 h (about 9 races).
• Leisure: no Suzuki figure; Cross-Mania guideline: compression check at around 36 h.

Specifications and fitting tips

• Manufacturer part number: RSB5000

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : WISECO · VERTEX
• Top-end gasket kit : ATHENA R4856-089 · ATHENA P400485600089
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 80 1982
SUZUKI RM 80 1981
SUZUKI RM 80 1980
SUZUKI TS 80 ER 1983
SUZUKI TS 80 ER 1982
SUZUKI TS 80 ER 1981
SUZUKI TS 80 X 1987
SUZUKI TS 80 X 1986
SUZUKI TS 80 X 1985
SUZUKI TS 80 X 1984
YAMAHA YZ 80 1992
YAMAHA YZ 80 1991
YAMAHA YZ 80 1990
YAMAHA YZ 80 1989
YAMAHA YZ 80 1988
YAMAHA YZ 80 1987
YAMAHA YZ 80 1986
YAMAHA YZ 80 1985
YAMAHA YZ 80 1984
YAMAHA YZ 80 1981
