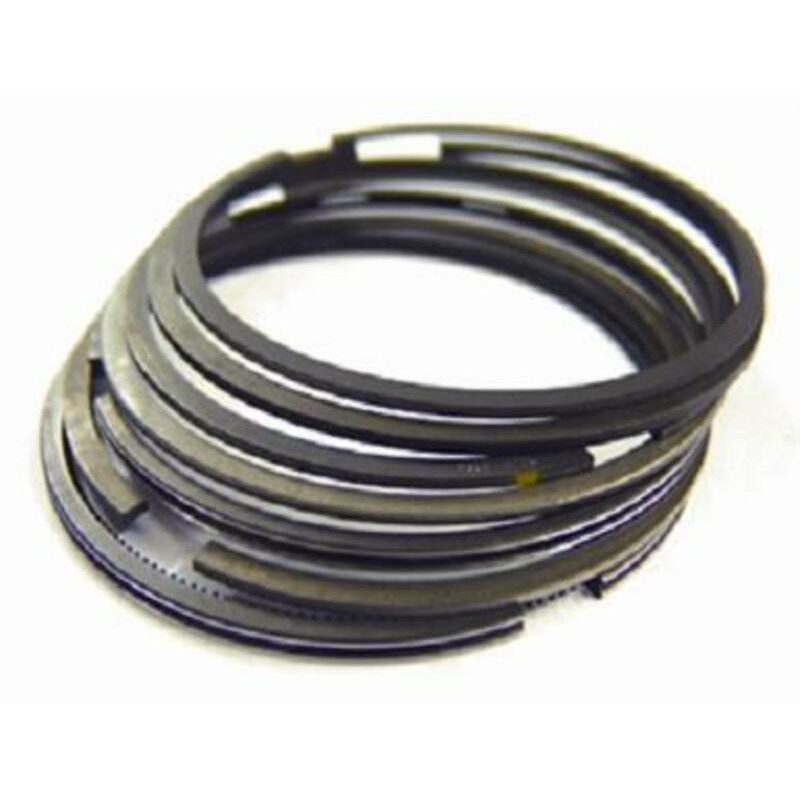

VERTEX Segment Set Ø41 mm for SUZUKI JR 50, LT 50 QUADRUNNER 2WD 1978-2006

VERTEX offers this piston ring set for SUZUKI JR 50, LT 50 QUADRUNNER 2WD 1978-2006. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy. Its four-stroke pistons are forged from 2618 alloy.

When should you replace the piston rings on your SUZUKI JR 50?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 15 h in hard use and every 30 h for leisure.

Specifications and fitting tips

• Manufacturer part number: 3030166

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : VERTEX · WISECO
• Top-end gasket kit : see the selection
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI JR 50 2006
SUZUKI JR 50 2005
SUZUKI JR 50 2004
SUZUKI JR 50 2003
SUZUKI JR 50 2002
SUZUKI JR 50 2001
SUZUKI JR 50 2000
SUZUKI JR 50 1999
SUZUKI JR 50 1998
SUZUKI JR 50 1997
SUZUKI JR 50 1996
SUZUKI JR 50 1995
SUZUKI JR 50 1994
SUZUKI JR 50 1993
SUZUKI JR 50 1992
SUZUKI JR 50 1991
SUZUKI JR 50 1990
SUZUKI JR 50 1989
SUZUKI JR 50 1988
SUZUKI JR 50 1987
SUZUKI JR 50 1986
SUZUKI JR 50 1985
SUZUKI JR 50 1984
SUZUKI JR 50 1983
SUZUKI JR 50 1982
SUZUKI JR 50 1981
SUZUKI JR 50 1980
SUZUKI JR 50 1979
SUZUKI JR 50 1978
SUZUKI LT 50 QUADRUNNER 2WD 2005
SUZUKI LT 50 QUADRUNNER 2WD 2004
SUZUKI LT 50 QUADRUNNER 2WD 2003
SUZUKI LT 50 QUADRUNNER 2WD 2002
SUZUKI LT 50 QUADRUNNER 2WD 2001
SUZUKI LT 50 QUADRUNNER 2WD 2000
SUZUKI LT 50 QUADRUNNER 2WD 1999
SUZUKI LT 50 QUADRUNNER 2WD 1998
SUZUKI LT 50 QUADRUNNER 2WD 1997
SUZUKI LT 50 QUADRUNNER 2WD 1996
SUZUKI LT 50 QUADRUNNER 2WD 1995
SUZUKI LT 50 QUADRUNNER 2WD 1994
SUZUKI LT 50 QUADRUNNER 2WD 1993
SUZUKI LT 50 QUADRUNNER 2WD 1992
SUZUKI LT 50 QUADRUNNER 2WD 1991
SUZUKI LT 50 QUADRUNNER 2WD 1990
SUZUKI LT 50 QUADRUNNER 2WD 1989
SUZUKI LT 50 QUADRUNNER 2WD 1988
SUZUKI LT 50 QUADRUNNER 2WD 1987
SUZUKI LT 50 QUADRUNNER 2WD 1986
SUZUKI LT 50 QUADRUNNER 2WD 1985
SUZUKI LT 50 QUADRUNNER 2WD 1984
