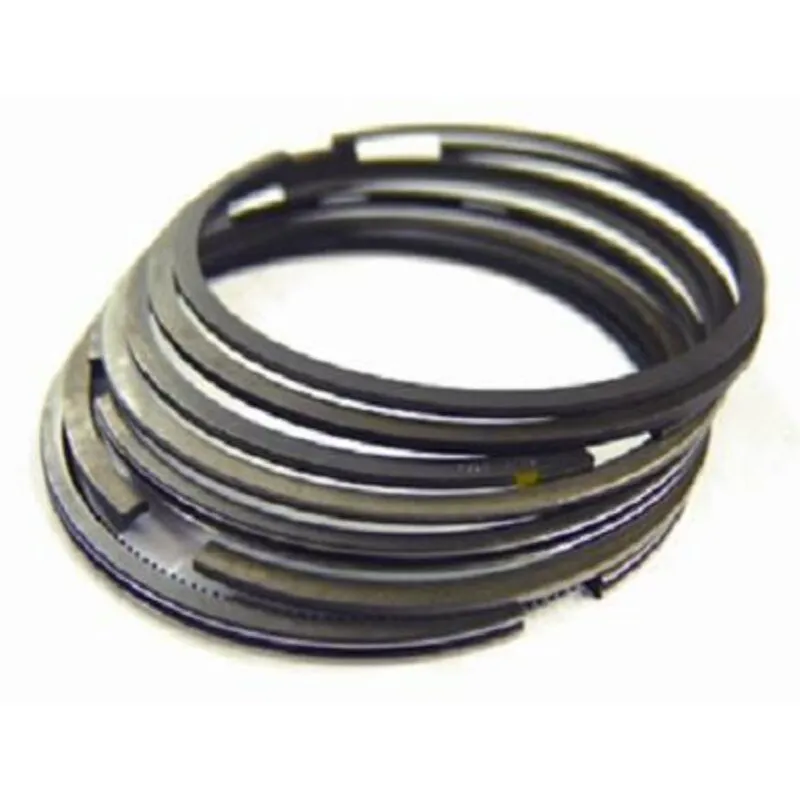

Set of Piston Rings Ø80 mm VERTEX for KTM EXCF 250, SXF 250 and HUSABERG FE 250 2006-2013

VERTEX offers this piston ring set for KTM EXCF 250, SXF 250 and HUSABERG FE 250 2006-2013. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy. Its four-stroke pistons are forged from 2618 alloy.

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.

Specifications and fitting tips

• Manufacturer part number: 590280000002

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : ATHENA · WOSSNER
• Top-end gasket kit : CENTAURO · ATHENA
• 2-stroke oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSABERG FE 250 2013
KTM EXCF 250 2013
KTM EXCF 250 2012
KTM EXCF 250 2011
KTM EXCF 250 2010
KTM EXCF 250 2009
KTM EXCF 250 2008
KTM EXCF 250 2007
KTM SXF 250 2012
KTM SXF 250 2011
KTM SXF 250 2010
KTM SXF 250 2009
KTM SXF 250 2008
KTM SXF 250 2007
KTM SXF 250 2006
