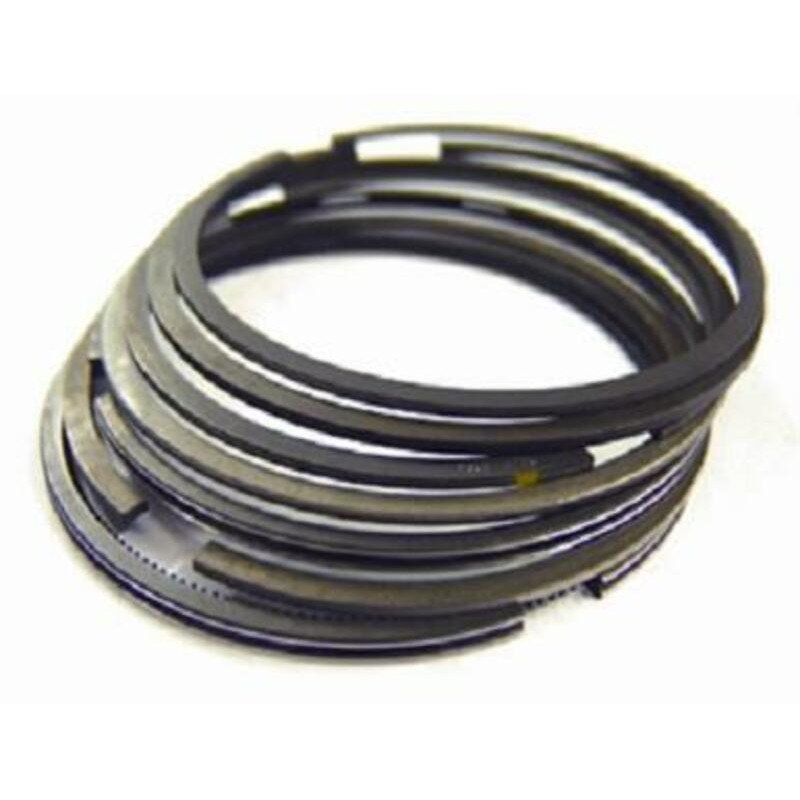

Wössner Piston Rings Set Ø47mm for HONDA CR 80, KAWASAKI KX 80, HUSQVARNA TC 85 and KTM SX 85 1986-2025

WOSSNER offers this piston ring set for HONDA CR 80, KAWASAKI KX 80, HUSQVARNA TC 85 and KTM SX 85 1986-2025. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the KTM SX 85, Husqvarna TC 85 2018-2023):

• Racing: every 20 h.
• Leisure: no KTM figure; Cross-Mania guideline: compression check at around 40 h.
• Riding in sand: every 10 h.
• KTM SX 85, Husqvarna TC 85, GASGAS MC 85 since 2024: racing: every 45 h.

Specifications and fitting tips

• Manufacturer part number: RSB4700

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : VERTEX · PROX
• Top-end gasket kit : ATHENA · CENTAURO
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS MC 85 2025
GAS GAS MC 85 2024
GAS GAS MC 85 2023
GAS GAS MC 85 2022
GAS GAS MC 85 2021
HONDA CR 80 2002
HONDA CR 80 2001
HONDA CR 80 2000
HONDA CR 80 1999
HONDA CR 80 1998
HONDA CR 80 1997
HONDA CR 80 1996
HONDA CR 80 1995
HONDA CR 80 1994
HONDA CR 80 1993
HONDA CR 80 1992
HONDA CR 80 1991
HONDA CR 80 1990
HONDA CR 80 1989
HONDA CR 80 1988
HONDA CR 80 1987
HONDA CR 80 1986
HUSQVARNA TC 85 2024
HUSQVARNA TC 85 2023
HUSQVARNA TC 85 2022
HUSQVARNA TC 85 2021
HUSQVARNA TC 85 2020
HUSQVARNA TC 85 2019
HUSQVARNA TC 85 2018
HUSQVARNA TC 85 2017
HUSQVARNA TC 85 2016
HUSQVARNA TC 85 2015
HUSQVARNA TC 85 2014
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 80 1997
KAWASAKI KX 80 1996
KAWASAKI KX 80 1995
KAWASAKI KX 80 1994
KAWASAKI KX 80 1993
KAWASAKI KX 80 1992
KAWASAKI KX 80 1991
KAWASAKI KX 80 1990
KAWASAKI KX 80 1989
KAWASAKI KX 80 1988
KTM SX 85 2024
KTM SX 85 2023
KTM SX 85 2022
KTM SX 85 2021
KTM SX 85 2020
KTM SX 85 2019
KTM SX 85 2018
KTM SX 85 2017
KTM SX 85 2016
KTM SX 85 2015
KTM SX 85 2014
