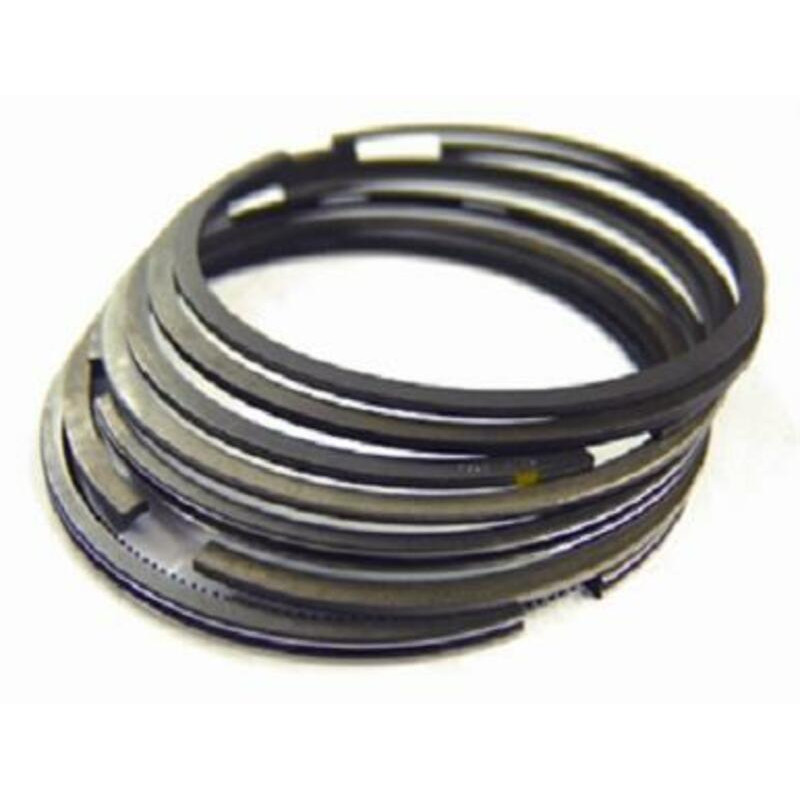

VERTEX Segment Set Ø72 mm for GAS GAS EC 300, WILD HP 300, KTM EXC 300, BETA RR 300, XTRAINER 300 and HUSQVARNA TE 300, WR 300

VERTEX offers this piston ring set for GAS GAS EC 300, WILD HP 300, KTM EXC 300, BETA RR 300, XTRAINER 300 and HUSQVARNA TE 300, WR 300 2001-2020. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy.

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the Beta RR 250 / 300 two-stroke):

• Normal use: every 60 h.
• Racing: no Beta figure; Cross-Mania guideline: compression check at around 30 h.
• KTM EXC / XC-W, Husqvarna TE 250/300 2017-2023: racing: every 40 h.

Specifications and fitting tips

• Manufacturer part number: 3030333

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : VERTEX · PROX
• Top-end gasket kit : ATHENA · TECNIUM
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RR 300 2020
BETA RR 300 2019
BETA RR 300 2018
BETA RR 300 2017
BETA RR 300 2016
BETA RR 300 2015
BETA RR 300 2014
BETA RR 300 2013
BETA XTRAINER 300 2017
BETA XTRAINER 300 2016
BETA XTRAINER 300 2015
GAS GAS EC 300 2018
GAS GAS EC 300 2017
GAS GAS EC 300 2016
GAS GAS EC 300 2015
GAS GAS EC 300 2014
GAS GAS EC 300 2013
GAS GAS EC 300 2012
GAS GAS EC 300 2011
GAS GAS EC 300 2010
GAS GAS EC 300 2009
GAS GAS EC 300 2008
GAS GAS EC 300 2007
GAS GAS EC 300 2006
GAS GAS EC 300 2005
GAS GAS EC 300 2004
GAS GAS EC 300 2003
GAS GAS EC 300 2002
GAS GAS EC 300 2001
GAS GAS WILD HP 300 2006
GAS GAS WILD HP 300 2005
GAS GAS WILD HP 300 2004
GAS GAS WILD HP 300 2003
HUSABERG TE 300 2013
HUSABERG TE 300 2012
HUSABERG TE 300 2011
HUSQVARNA TE 300 2017
HUSQVARNA TE 300 2016
HUSQVARNA TE 300 2015
HUSQVARNA TE 300 2014
HUSQVARNA WR 300 2014
HUSQVARNA WR 300 2013
HUSQVARNA WR 300 2012
HUSQVARNA WR 300 2011
HUSQVARNA WR 300 2010
HUSQVARNA WR 300 2009
HUSQVARNA WR 300 2008
KTM EXC 300 2017
KTM EXC 300 2016
KTM EXC 300 2015
KTM EXC 300 2014
KTM EXC 300 2013
KTM EXC 300 2012
KTM EXC 300 2011
KTM EXC 300 2010
KTM EXC 300 2009
KTM EXC 300 2008
KTM EXC 300 2007
KTM EXC 300 2006
KTM EXC 300 2005
KTM EXC 300 2004
