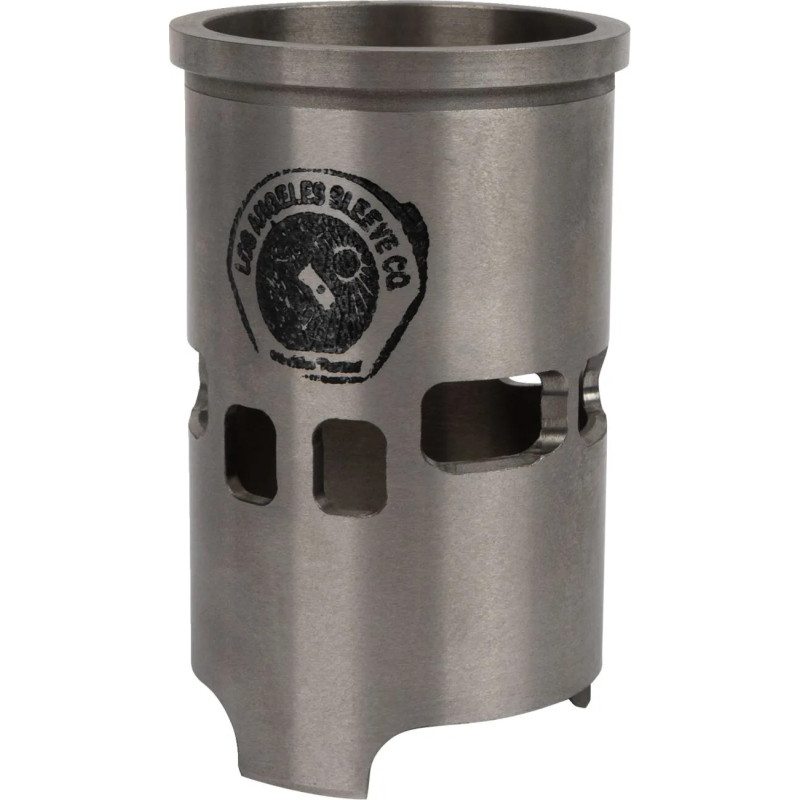

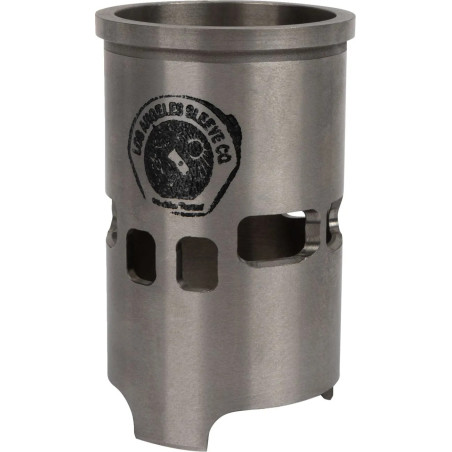

LA SLEEVE cylinder sleeve for YAMAHA YZ 125 2004
€167.90
Tax Included
The tube the piston slides in, fitted into your cylinder to give it a second life.
LA SLEEVE offers this cylinder sleeve for YAMAHA YZ 125 2004. The sleeve is the wall the piston moves up and down in. When it is worn or scored, it can be replaced in the original cylinder instead of buying a complete cylinder.
Why re-sleeve a cylinder?
The benefits:
- Save a cylinder that is scored or worn beyond its last oversize.
- Cast iron allows several rebores later: an oversize piston can be fitted at the next rebuilds.
- Often cheaper than a new cylinder.
Why choose LA SLEEVE?
L.A. Sleeve has been sleeving cylinders since 1945: its sleeves are centrifugally cast from a chrome-molybdenum alloy, hard and wear-resistant.
When should you replace the cylinder on your YAMAHA YZ 125?
A scored or oval cylinder, or one with damaged plating, loses compression and wears the piston quickly. Measure the bore at every top-end rebuild: beyond the wear limit the cylinder must be replaced or resleeved.
Specifications and fitting tips
- Bore: 54.00 mm
- Displacement: 124 cm³
- Material: Chromoly steel
- Engine: 2-stroke
- Precision-cut ports for easy installation and alignment
- Precision-ground outside diameter
Cross-Mania tip: Check the diameter of the supplied or required piston and replace the top-end gaskets. A big bore may require carburation or fuel-injection adjustment.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
YAMAHA YZ 125 2004
YA5533
Specific References
