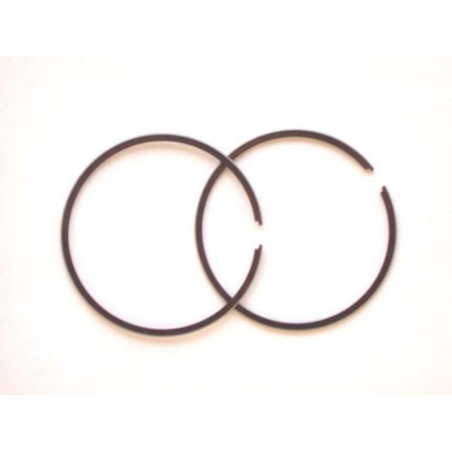

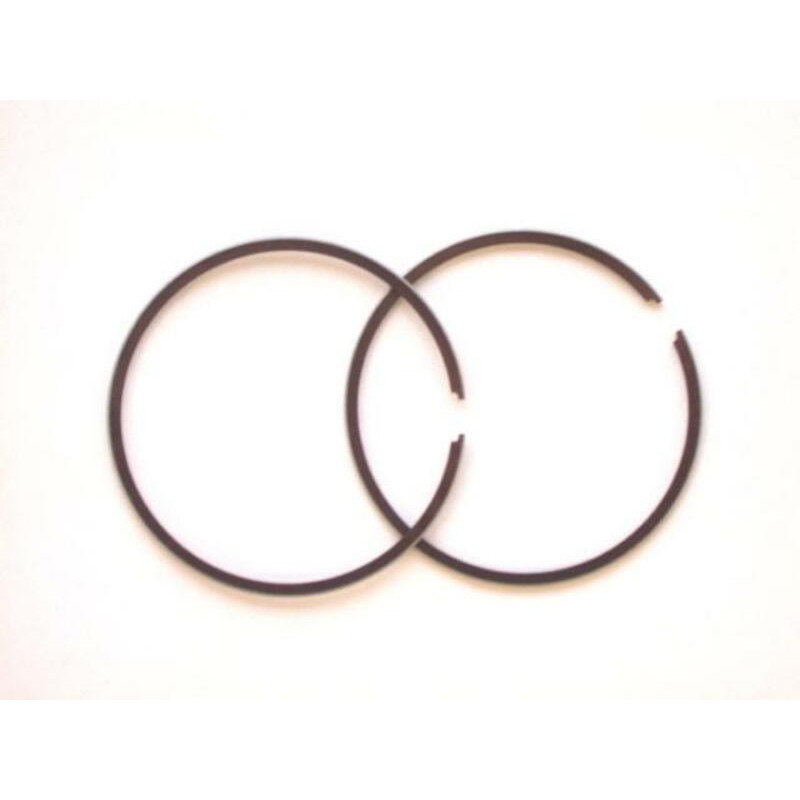

WISECO piston ring set Ø 50.50 mm for SUZUKI LT 80 QUADRUNNER 2WD, RM 80, KAWASAKI KX 85, HONDA MTX 80 RF

Check before ordering

• Diameter: Ø 50.50 mm

WISECO offers this piston ring set for SUZUKI LT 80 QUADRUNNER 2WD, RM 80, KAWASAKI KX 85, HONDA CR 80, MTX 80 R2, MTX 80 RF, MTX 80 RS and YAMAHA YZ 80 1981-2013. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose WISECO?

Wiseco has forged its pistons in Mentor (Ohio, USA) since 1941 and controls the whole process, from aluminium bar to the friction-reducing ArmorGlide skirt coating. Its pistons are developed with Team Honda HRC in Supercross (450 class since 2018).

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the Suzuki RM 80 / RM 85):

• Racing: every 18 h (about 9 races).
• Leisure: no Suzuki figure; Cross-Mania guideline: compression check at around 36 h.

Specifications and fitting tips

• Manufacturer part number: W1988CD

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : VERTEX 23637B · VERTEX 3637
• Top-end gasket kit : CENTAURO 85 L · PROX
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 80 1984
HONDA MTX 80 R2 1987
HONDA MTX 80 RF 1985
HONDA MTX 80 RF 1984
HONDA MTX 80 RF 1983
HONDA MTX 80 RS 1985
HONDA MTX 80 RS 1984
HONDA MTX 80 RS 1983
KAWASAKI KX 85 2013
KAWASAKI KX 85 2012
KAWASAKI KX 85 2011
KAWASAKI KX 85 2010
KAWASAKI KX 85 2009
KAWASAKI KX 85 2008
KAWASAKI KX 85 2007
KAWASAKI KX 85 2006
KAWASAKI KX 85 2005
KAWASAKI KX 85 2004
KAWASAKI KX 85 2003
KAWASAKI KX 85 2002
KAWASAKI KX 85 2001
SUZUKI LT 80 QUADRUNNER 2WD 2006
SUZUKI LT 80 QUADRUNNER 2WD 2005
SUZUKI LT 80 QUADRUNNER 2WD 2004
SUZUKI LT 80 QUADRUNNER 2WD 2003
SUZUKI LT 80 QUADRUNNER 2WD 2002
SUZUKI LT 80 QUADRUNNER 2WD 2001
SUZUKI LT 80 QUADRUNNER 2WD 2000
SUZUKI LT 80 QUADRUNNER 2WD 1999
SUZUKI LT 80 QUADRUNNER 2WD 1998
SUZUKI LT 80 QUADRUNNER 2WD 1997
SUZUKI LT 80 QUADRUNNER 2WD 1996
SUZUKI LT 80 QUADRUNNER 2WD 1995
SUZUKI LT 80 QUADRUNNER 2WD 1994
SUZUKI LT 80 QUADRUNNER 2WD 1993
SUZUKI LT 80 QUADRUNNER 2WD 1992
SUZUKI LT 80 QUADRUNNER 2WD 1991
SUZUKI LT 80 QUADRUNNER 2WD 1990
SUZUKI LT 80 QUADRUNNER 2WD 1989
SUZUKI LT 80 QUADRUNNER 2WD 1988
SUZUKI LT 80 QUADRUNNER 2WD 1987
SUZUKI RM 80 1985
SUZUKI RM 80 1984
SUZUKI RM 80 1983
YAMAHA YZ 80 1981
