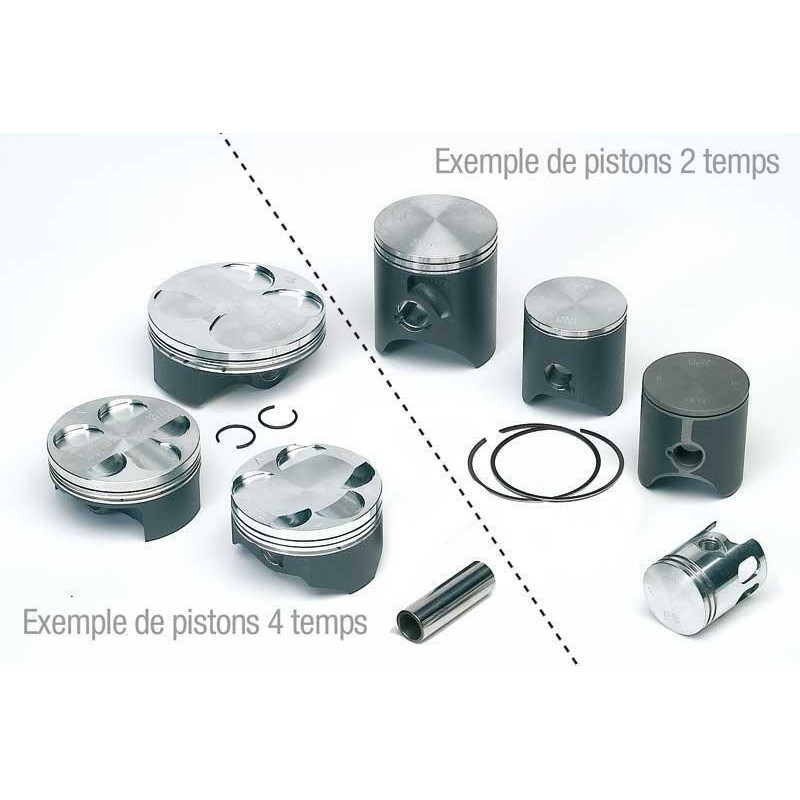

VERTEX Piston for YAMAHA YFM 700 GRIZZLY EPS 4WD, YFM 700 GRIZZLY EPS CAMO 4WD, YFM 700 RAPTOR 2WD 2006-2014

VERTEX offers this piston kit for YAMAHA YFM 700 GRIZZLY EPS 4WD, YFM 700 GRIZZLY EPS CAMO 4WD, YFM 700 RAPTOR 2WD 2006-2014. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Forged or cast piston?

• Forged: hot-pressed then machined aluminium, stronger when hot and lighter for the same strength; sometimes fitted with a little more clearance, and costs more.
• Cast: aluminium poured into a mould, like most OEM pistons; it expands little, runs quietly and costs less, but tolerates overheating less well.
• In short: forged for racing or a tuned engine, cast for a stock engine used for leisure riding.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its four-stroke pistons are forged from 2618 alloy.

When should you replace the piston on your YAMAHA YFM 700 RAPTOR 2WD?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Oversize Letter: A
• Manufacturer part number: 23626A

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA YFM 700 GRIZZLY EPS 4WD 2013
YAMAHA YFM 700 GRIZZLY EPS 4WD 2012
YAMAHA YFM 700 GRIZZLY EPS 4WD 2011
YAMAHA YFM 700 GRIZZLY EPS 4WD 2010
YAMAHA YFM 700 GRIZZLY EPS 4WD 2009
YAMAHA YFM 700 GRIZZLY EPS 4WD 2008
YAMAHA YFM 700 GRIZZLY EPS 4WD 2007
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2013
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2012
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2011
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2010
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2009
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2008
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2007
YAMAHA YFM 700 RAPTOR 2WD 2014
YAMAHA YFM 700 RAPTOR 2WD 2013
YAMAHA YFM 700 RAPTOR 2WD 2012
YAMAHA YFM 700 RAPTOR 2WD 2011
YAMAHA YFM 700 RAPTOR 2WD 2010
YAMAHA YFM 700 RAPTOR 2WD 2009
YAMAHA YFM 700 RAPTOR 2WD 2008
YAMAHA YFM 700 RAPTOR 2WD 2007
YAMAHA YFM 700 RAPTOR 2WD 2006
