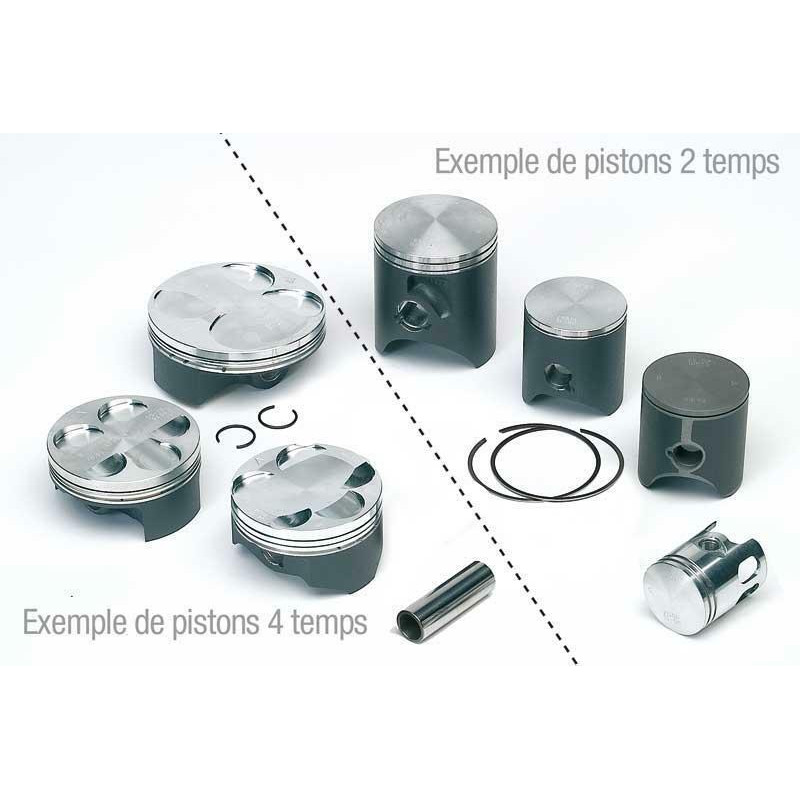

VERTEX Piston for YAMAHA YFZ 450 2004-2018

VERTEX offers this piston kit for YAMAHA YFZ 450 2004-2018. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Forged or cast piston?

• Forged: hot-pressed then machined aluminium, stronger when hot and lighter for the same strength; sometimes fitted with a little more clearance, and costs more.
• Cast: aluminium poured into a mould, like most OEM pistons; it expands little, runs quietly and costs less, but tolerates overheating less well.
• In short: forged for racing or a tuned engine, cast for a stock engine used for leisure riding.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its four-stroke pistons are forged from 2618 alloy.

When should you replace the piston on your YAMAHA YFZ 450?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Oversize Letter: A
• Manufacturer part number: 23403A

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA YFZ 450 2018
YAMAHA YFZ 450 2017
YAMAHA YFZ 450 2016
YAMAHA YFZ 450 2015
YAMAHA YFZ 450 2014
YAMAHA YFZ 450 2013
YAMAHA YFZ 450 2012
YAMAHA YFZ 450 2011
YAMAHA YFZ 450 2010
YAMAHA YFZ 450 2009
YAMAHA YFZ 450 2008
YAMAHA YFZ 450 2007
YAMAHA YFZ 450 2006
YAMAHA YFZ 450 2005
YAMAHA YFZ 450 2004
