- New
PROX Forged Piston for YAMAHA YFZ 450 2004-2018 - 01.2435
€207.90
Tax Included

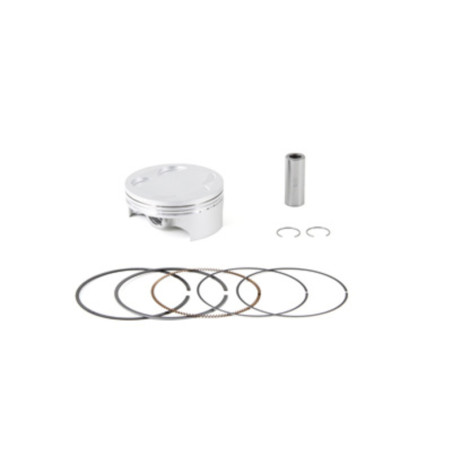

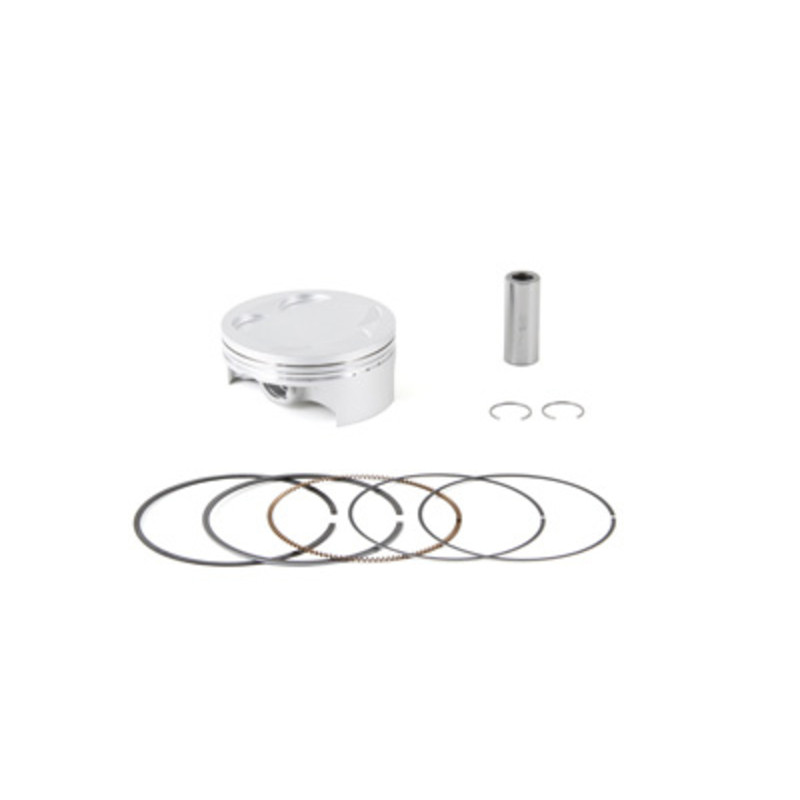

The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
Available in several sizes.
PROX offers this piston kit for YAMAHA YFZ 450 2004-2018. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose PROX?
ProX has its pistons made in Japan and the USA, with Japanese rings (Riken, TP or NPR) and tolerances at least equal to OEM; most of its four-stroke pistons are forged.
When should you replace the piston on your YAMAHA YFZ 450?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.
Specifications and fitting tips
- Material: Aluminium
- Piston compression: Standard
- Piston type: Forged
Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 94.95 mm, B = 94.96 mm, C = 94.97 mm.
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
YAMAHA YFZ 450 2018
YAMAHA YFZ 450 2017
YAMAHA YFZ 450 2016
YAMAHA YFZ 450 2015
YAMAHA YFZ 450 2014
YAMAHA YFZ 450 2013
YAMAHA YFZ 450 2012
YAMAHA YFZ 450 2011
YAMAHA YFZ 450 2010
YAMAHA YFZ 450 2009
YAMAHA YFZ 450 2008
YAMAHA YFZ 450 2007
YAMAHA YFZ 450 2006
YAMAHA YFZ 450 2005
YAMAHA YFZ 450 2004
01.2435.A
2 Items
Specific References
Click on your bike to see all compatible parts.
No customer reviews for the moment.
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
Available in several sizes.
PROX Forged Piston for YAMAHA YFZ 450 2004-2018 - 01.2435
€207.90
Tax Included
