- New
TECNIUM Forged Piston Kit Ø65.00mm for YAMAHA YFZ 350 BANSHEE 2WD 1988-2007
€269.90
Tax Included

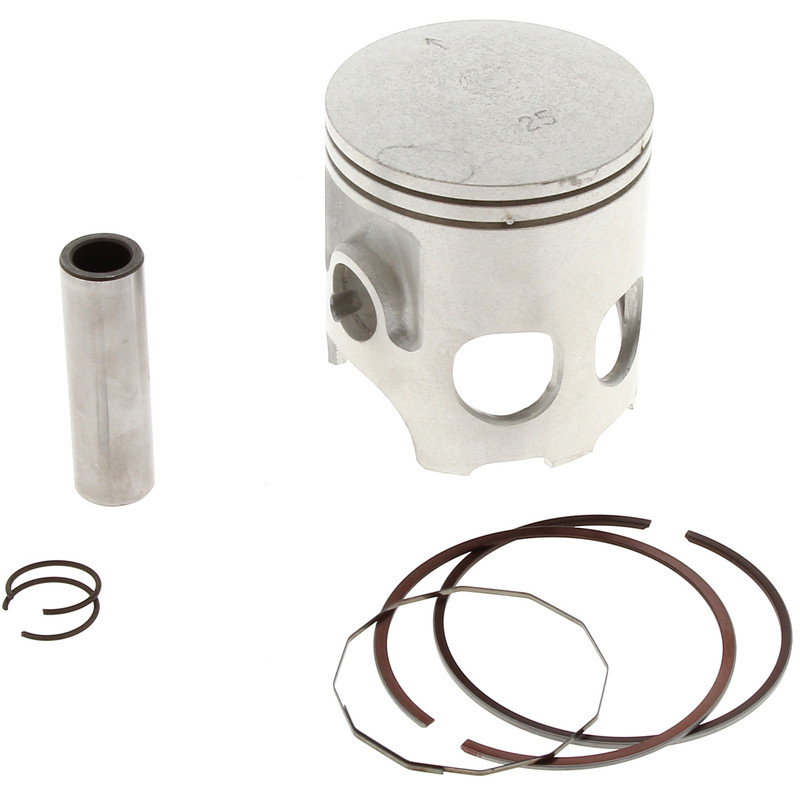

The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
TECNIUM offers this piston kit for YAMAHA YFZ 350 BANSHEE 2WD 1988-2007. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
When should you replace the piston on your YAMAHA YFZ 350 BANSHEE 2WD?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.
Specifications and fitting tips
- Piston compression: Standard
- Manufacturer part number: 3030356
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
YAMAHA YFZ 350 BANSHEE 2WD 2007
YAMAHA YFZ 350 BANSHEE 2WD 2006
YAMAHA YFZ 350 BANSHEE 2WD 2005
YAMAHA YFZ 350 BANSHEE 2WD 2004
YAMAHA YFZ 350 BANSHEE 2WD 2003
YAMAHA YFZ 350 BANSHEE 2WD 2002
YAMAHA YFZ 350 BANSHEE 2WD 2001
YAMAHA YFZ 350 BANSHEE 2WD 2000
YAMAHA YFZ 350 BANSHEE 2WD 1999
YAMAHA YFZ 350 BANSHEE 2WD 1998
YAMAHA YFZ 350 BANSHEE 2WD 1997
YAMAHA YFZ 350 BANSHEE 2WD 1996
YAMAHA YFZ 350 BANSHEE 2WD 1995
YAMAHA YFZ 350 BANSHEE 2WD 1994
YAMAHA YFZ 350 BANSHEE 2WD 1993
YAMAHA YFZ 350 BANSHEE 2WD 1992
YAMAHA YFZ 350 BANSHEE 2WD 1991
YAMAHA YFZ 350 BANSHEE 2WD 1990
YAMAHA YFZ 350 BANSHEE 2WD 1989
YAMAHA YFZ 350 BANSHEE 2WD 1988
3030356
1 Item
Specific References
