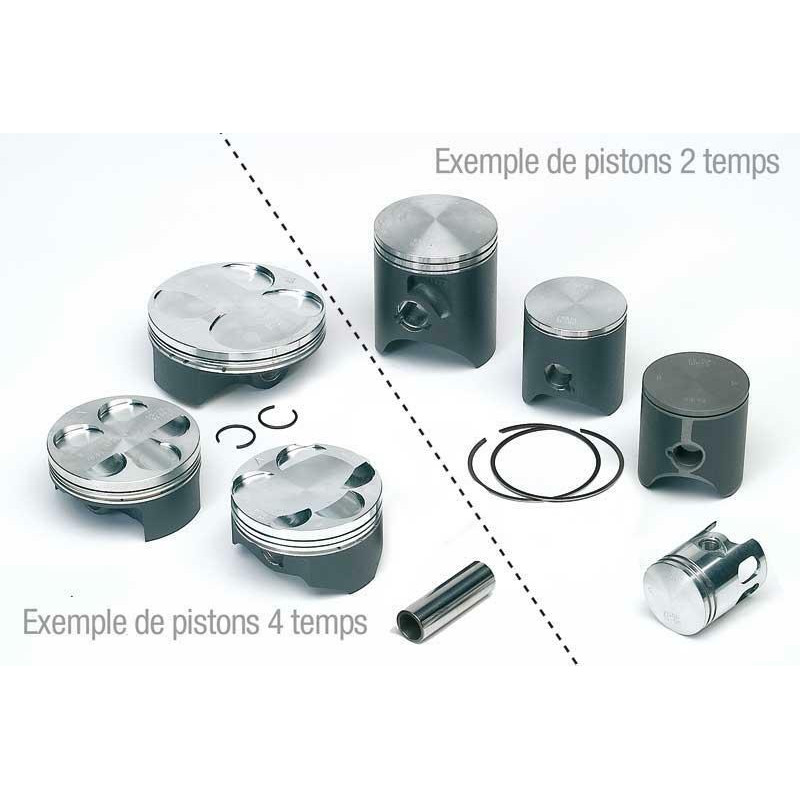

VERTEX Forged Piston for HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD, TRX 450 R SPORTRAX KICK START 2WD 2006-2008
€238.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
VERTEX offers this piston kit for HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD, TRX 450 R SPORTRAX KICK START 2WD 2006-2008. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose VERTEX?
Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its four-stroke pistons are forged from 2618 alloy.
When should you replace the piston on your HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.
Specifications and fitting tips
- Material: Aluminium
- Piston compression: Standard
- Oversize Letter: B
- Rings Quantity: Set
- Stroke: 4T
- Manufacturer part number: 23522B
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2008
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2007
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2006
HONDA TRX 450 R SPORTRAX KICK START 2WD 2008
HONDA TRX 450 R SPORTRAX KICK START 2WD 2007
HONDA TRX 450 R SPORTRAX KICK START 2WD 2006
23522B
