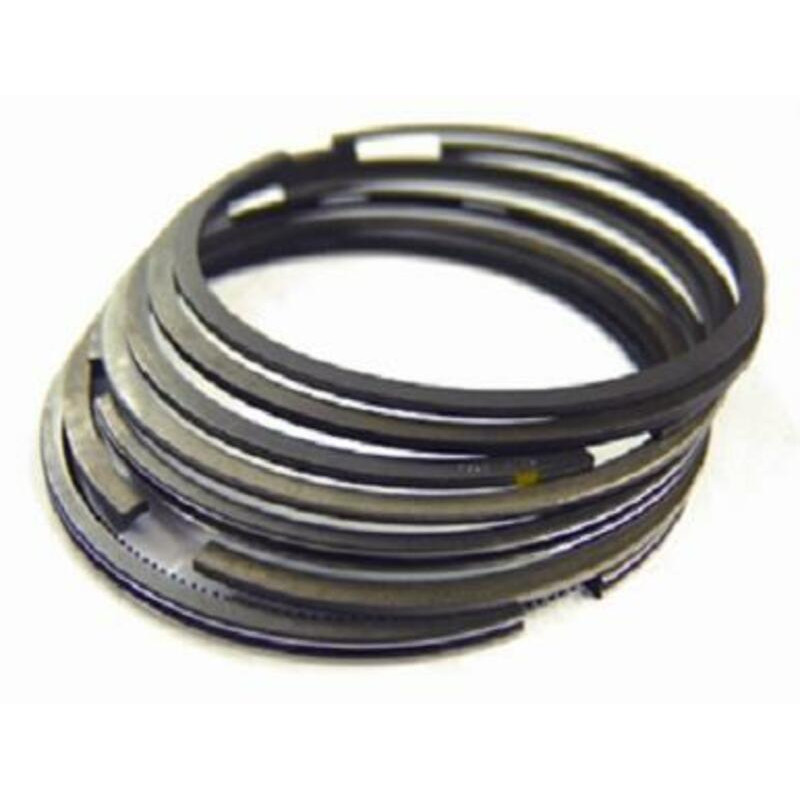

Set of Piston Rings Ø102 mm for 9482D 200 Piston VERTEX for YAMAHA YFM 700 RAPTOR 2WD and HONDA TRX 700 XX SPORTRAX 2WD

VERTEX offers this piston ring set for YAMAHA YFM 660 RAPTOR 2WD, YFM 700 GRIZZLY EPS 4WD, YFM 700 GRIZZLY EPS CAMO 4WD, YFM 700 RAPTOR 2WD, YXR 700 RHINO 4WD and HONDA TRX 700 XX SPORTRAX 2WD 2001-2018. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy. Its four-stroke pistons are forged from 2618 alloy.

When should you replace the piston rings?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.

Specifications and fitting tips

• Manufacturer part number: 590310200002

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : see the selection
• Top-end gasket kit : see the selection
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA TRX 700 XX SPORTRAX 2WD 2011
YAMAHA YFM 660 RAPTOR 2WD 2005
YAMAHA YFM 660 RAPTOR 2WD 2004
YAMAHA YFM 660 RAPTOR 2WD 2003
YAMAHA YFM 660 RAPTOR 2WD 2002
YAMAHA YFM 660 RAPTOR 2WD 2001
YAMAHA YFM 700 GRIZZLY EPS 4WD 2013
YAMAHA YFM 700 GRIZZLY EPS 4WD 2012
YAMAHA YFM 700 GRIZZLY EPS 4WD 2011
YAMAHA YFM 700 GRIZZLY EPS 4WD 2010
YAMAHA YFM 700 GRIZZLY EPS 4WD 2009
YAMAHA YFM 700 GRIZZLY EPS 4WD 2008
YAMAHA YFM 700 GRIZZLY EPS 4WD 2007
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2013
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2012
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2011
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2010
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2009
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2008
YAMAHA YFM 700 GRIZZLY EPS CAMO 4WD 2007
YAMAHA YFM 700 RAPTOR 2WD 2018
YAMAHA YFM 700 RAPTOR 2WD 2017
YAMAHA YFM 700 RAPTOR 2WD 2016
YAMAHA YFM 700 RAPTOR 2WD 2015
YAMAHA YFM 700 RAPTOR 2WD 2014
YAMAHA YFM 700 RAPTOR 2WD 2013
YAMAHA YFM 700 RAPTOR 2WD 2012
YAMAHA YFM 700 RAPTOR 2WD 2011
YAMAHA YFM 700 RAPTOR 2WD 2010
YAMAHA YFM 700 RAPTOR 2WD 2009
YAMAHA YFM 700 RAPTOR 2WD 2008
YAMAHA YFM 700 RAPTOR 2WD 2007
YAMAHA YFM 700 RAPTOR 2WD 2006
YAMAHA YXR 660 RHINO 4WD 2007
YAMAHA YXR 660 RHINO 4WD 2006
YAMAHA YXR 660 RHINO 4WD 2005
YAMAHA YXR 700 RHINO 4WD 2012
YAMAHA YXR 700 RHINO 4WD 2011
YAMAHA YXR 700 RHINO 4WD 2010
YAMAHA YXR 700 RHINO 4WD 2009
YAMAHA YXR 700 RHINO 4WD 2008
