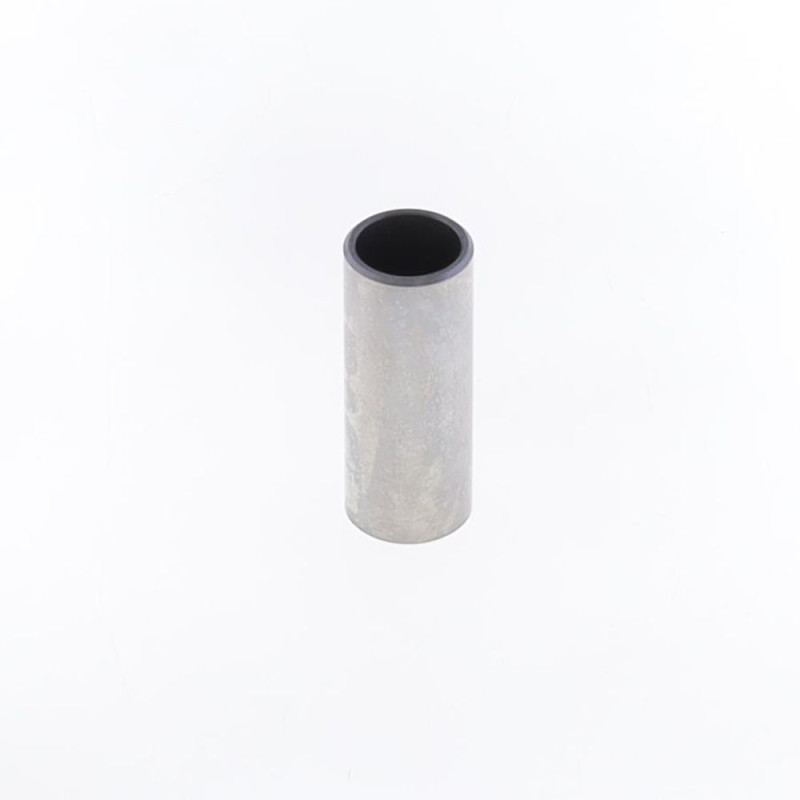

ATHENA Piston Pin 20x13x51 mm for HUSABERG FC 650, FE 650, FS 650, FX 650 1999-2009

The ATHENA 20x13x51 mm S41317007 piston pin is designed for HUSABERG FC 650, FE 650, FS 650, FX 650 from 1999 to 2009. The piston pin connects the piston to the connecting rod and takes the full force of every combustion. It works in the small end and in the piston bosses: over the hours it wears or gets marked, and play appears.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41317007
• EAN code: 8051757197897
• For ATHENA piston
• Engine: 4-stroke

When to replace it?

• Metallic knocking at idle or when closing the throttle.
• Pin marked, blued or scored on teardown.
• Noticeable play between the pin and the small end or the piston bosses.

Check the pin at every piston change and replace it as soon as it is marked, blued or has play. A new pin always goes in with new circlips.

Fitting tips

1. Check that the pin diameter and length match your piston (see specifications).
2. Oil the pin, the small end and the piston bosses, then push the pin in by hand, without forcing it.
3. Fit new piston pin circlips, gap opposite the notch, and check they sit properly in their groove.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top-end gasket kit : see the selection

Frequently asked questions

Is the pin supplied with the piston?
Yes, a new piston comes with its pin. This part is for replacing a worn or lost pin, or for completing a piston sold on its own.

Are the circlips included?
No: plan for new piston pin circlips, as they are never reused.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSABERG FC 650 2009
HUSABERG FC 650 2008
HUSABERG FC 650 2007
HUSABERG FC 650 2006
HUSABERG FC 650 2005
HUSABERG FC 650 2004
HUSABERG FC 650 2003
HUSABERG FC 650 2002
HUSABERG FC 650 2001
HUSABERG FC 650 2000
HUSABERG FC 650 1999
HUSABERG FE 650 2009
HUSABERG FE 650 2008
HUSABERG FE 650 2007
HUSABERG FE 650 2006
HUSABERG FE 650 2005
HUSABERG FE 650 2004
HUSABERG FE 650 2003
HUSABERG FE 650 2002
HUSABERG FE 650 2001
HUSABERG FE 650 2000
HUSABERG FE 650 1999
HUSABERG FS 650 2009
HUSABERG FS 650 2008
HUSABERG FS 650 2007
HUSABERG FS 650 2006
HUSABERG FS 650 2005
HUSABERG FS 650 2004
HUSABERG FS 650 2003
HUSABERG FS 650 2002
HUSABERG FS 650 2001
HUSABERG FS 650 2000
HUSABERG FS 650 1999
HUSABERG FX 650 2009
HUSABERG FX 650 2008
HUSABERG FX 650 2007
HUSABERG FX 650 2006
HUSABERG FX 650 2005
HUSABERG FX 650 2004
HUSABERG FX 650 2003
HUSABERG FX 650 2002
HUSABERG FX 650 2001
HUSABERG FX 650 2000
HUSABERG FX 650 1999
