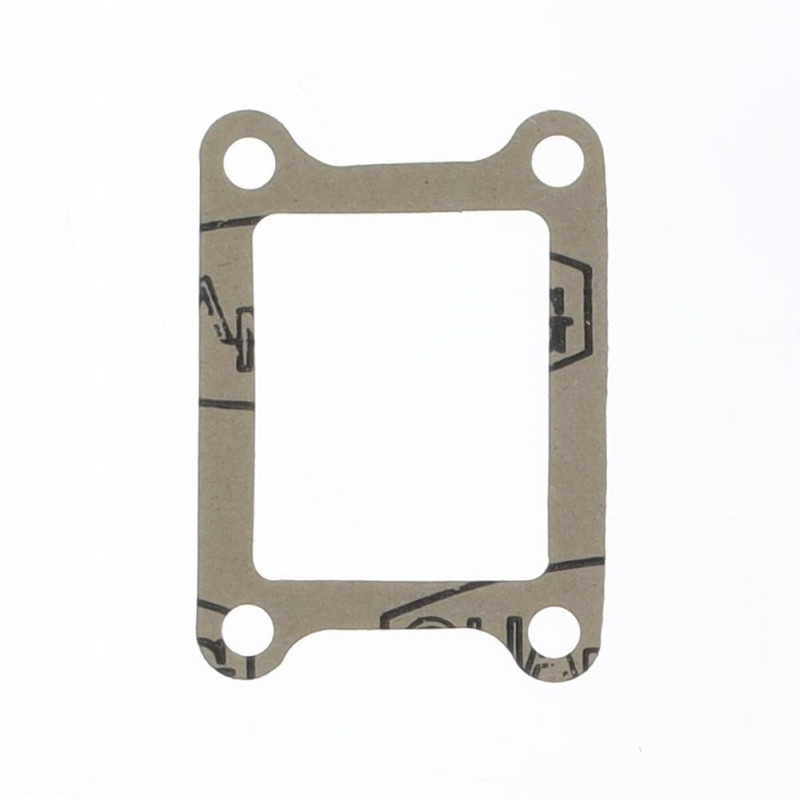

ATHENA Intake Gasket for APRILIA RX 50 2006-2014

On APRILIA RX 50 from 2006 to 2014, the ATHENA S410105010003 intake gasket fits in place of the original part. On the intake side, the slightest sealing fault upsets the air-fuel mixture. This gasket makes sure that all the air drawn in goes through the carburettor or the fuel injection.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410105010003
• EAN code: 8051757092222
• Engine: 2-stroke

When to replace it?

• Unstable idle or idle that creeps up on its own, hanging revs.
• Engine running hot or pinking: mixture too lean.
• Gasket crushed or split on removal.

Every time the intake manifold or reed valve block is removed, and as soon as an air leak is suspected.

Fitting tips

1. Clean the gasket faces without scratching them.
2. Fit the gasket dry and properly centred.
3. Tighten the screws in a criss-cross pattern, gradually, to the manufacturer's torque.
4. Take the opportunity to check the reed petals: a chipped or split tip must be replaced straight away.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Spark plug : NGK 3961 · NGK 5722

Frequently asked questions

How do I find an air leak?
With the engine idling, spray a little brake cleaner around the intake: if the revs change, air is getting in at that spot.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA RX 50 2014
APRILIA RX 50 2013
APRILIA RX 50 2012
APRILIA RX 50 2011
APRILIA RX 50 2010
APRILIA RX 50 2009
APRILIA RX 50 2008
APRILIA RX 50 2007
APRILIA RX 50 2006
