TWIN AIR Oil Cooling System for KAWASAKI KXF 450 2019-2023

The TWIN AIR 160416 oil cooling system is designed for KAWASAKI KXF 450 from 2019 to 2023. This kit adds an oil cooler to a four-stroke engine: an air-cooled heat exchanger through which the engine oil flows. The oil runs cooler and keeps its lubricating properties better when the engine is working hard.

Key features

• Patented air-cooled oil cooler, independent of the coolant circuit.

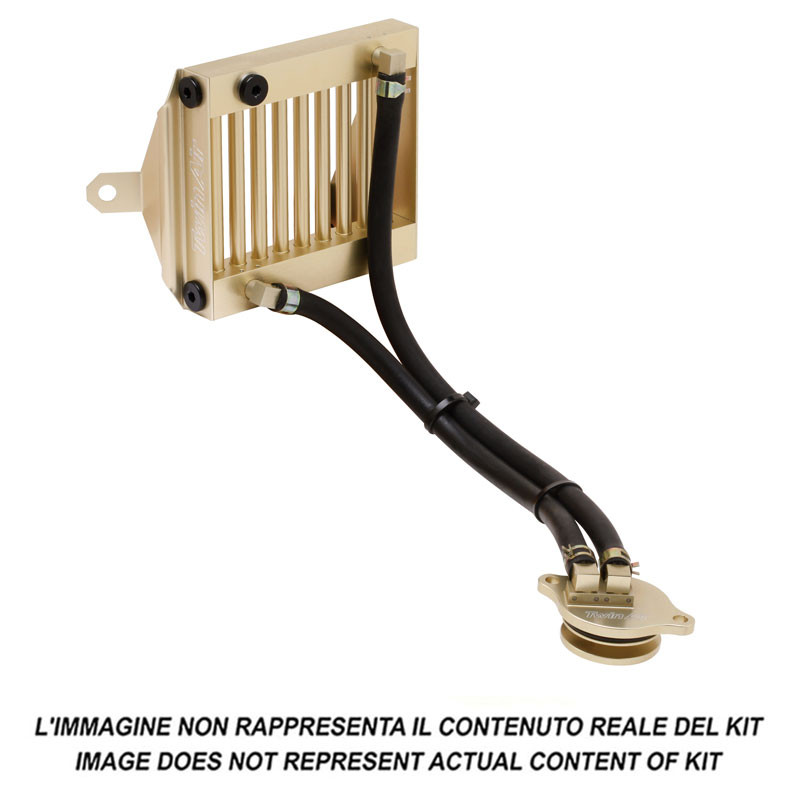

• Tubular heat exchanger mounted behind the left radiator, connected with rubber hoses of 6 mm inner diameter.
• Complete kit: heat exchanger, bolts, oil filter cap, hoses, clamps and instructions.

Specifications

• Brand: TWIN AIR
• Manufacturer part number: 160416
• EAN code: 8720239727128
• Matching Twin Air oil filter: ref. 140118
• Engine: 4-stroke

When do you need it?

• Riding in sand, mud or slow enduro, where the engine runs hot.
• Tuned or hard-worked engine.
• Oil that breaks down quickly between changes.

The kit is specific to each model: check the bike and years. Quality engine oil and regular oil changes are still essential.

Fitting tips

1. With the engine cold, drain the engine oil.
2. Follow the instructions: mount the cooler in its intended location and connect the hoses, with no kinks and no contact with hot or moving parts.
3. Tighten the clamps, fill with engine oil, run the engine, then check the level again: the added circuit holds oil.
4. Check for leaks after the first ride.

Why TWIN AIR?

Twin Air, a Dutch brand founded in 1972, made its name with foam air filters, which according to the brand are fitted as original equipment by more than 30 manufacturers. Its off-road range also covers seats, radiator protection, mud foam and oil cooling kits.

Spare parts and items to plan

• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

Does it need more oil?
A little: the cooler and hoses fill up with oil. Top up the level according to the instructions after running the engine.

Which oil filter should I use?
The Twin Air filter matched to your model is given in the specifications.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KXF 450 2023
KAWASAKI KXF 450 2022
KAWASAKI KXF 450 2021
KAWASAKI KXF 450 2020
KAWASAKI KXF 450 2019
