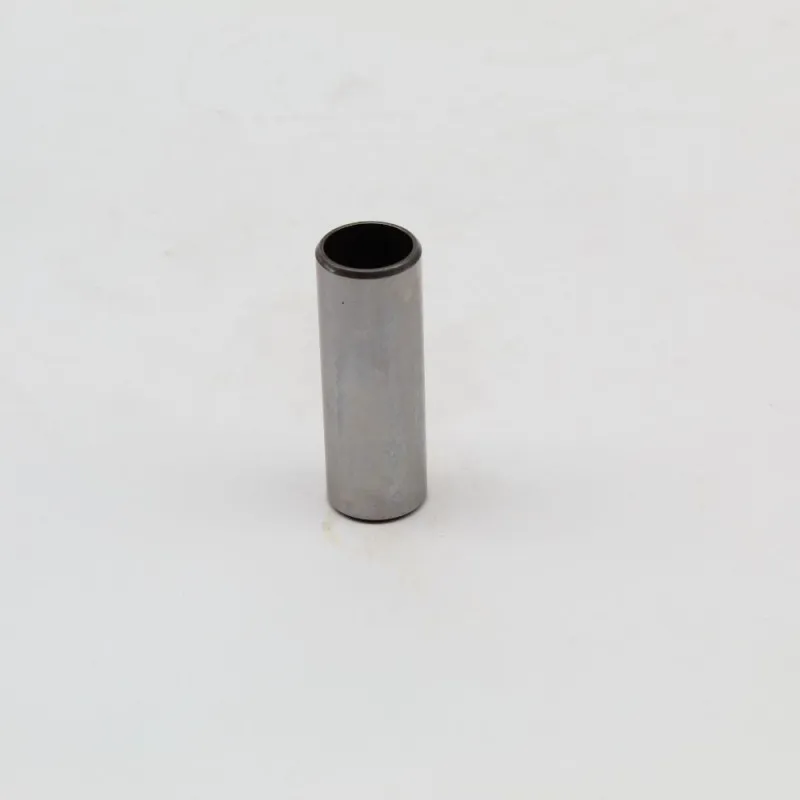

VERTEX Piston Pin 14x40x9 mm

The VERTEX 14x40x9 mm BUP.14.40B piston pin is a universal part. Small but heavily loaded, the pin transmits the piston's thrust to the connecting rod. A marked or oval pin creates play and noise, and wears the small end.

Specifications

• Brand: VERTEX
• Manufacturer part number: BUP.14.40B

When to replace it?

• Metallic knocking at idle or when closing the throttle.
• Pin marked, blued or scored on teardown.
• Noticeable play between the pin and the small end or the piston bosses.

Check the pin at every piston change and replace it as soon as it is marked, blued or has play. A new pin always goes in with new circlips.

Fitting tips

1. Check that the pin diameter and length match your piston (see specifications).
2. Oil the pin, the small end and the piston bosses, then push the pin in by hand, without forcing it.
3. Fit new piston pin circlips, gap opposite the notch, and check they sit properly in their groove.

Why VERTEX?

Founded in Italy in 1953 as a workshop making parts for agricultural engines, Vertex now makes its entire production in Cadelbosco Sopra, near Reggio Emilia, on CNC machines. Since 1996 Vertex has been KTM's official original-equipment piston supplier: its pistons are fitted as standard to many KTM, Husqvarna and GasGas bikes.

Spare parts and items to plan

• Small end needle bearing : see the selection
• Top-end gasket kit : see the selection

Frequently asked questions

Is the pin supplied with the piston?
Yes, a new piston comes with its pin. This part is for replacing a worn or lost pin, or for completing a piston sold on its own.

Are the circlips included?
No: plan for new piston pin circlips, as they are never reused.

Compatibility

Universal part: check the dimensions given before ordering.
