- New

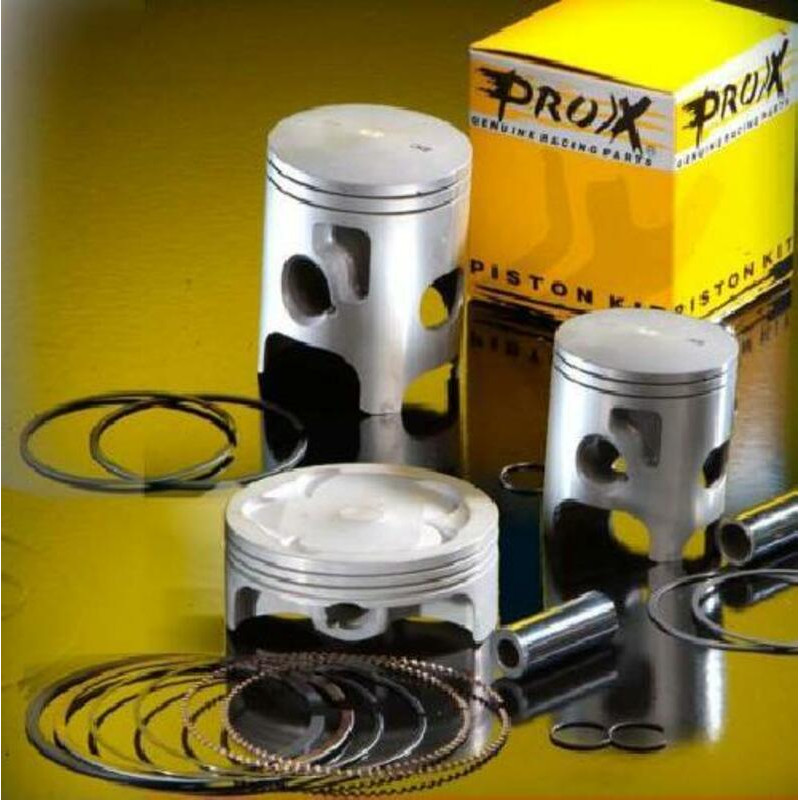

PROX Casted Piston for SUZUKI RM 125 1989-1999
€114.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
Available in several sizes.
PROX offers this piston kit for SUZUKI RM 125 1989-1999. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a cast piston?
A cast piston is made by pouring liquid aluminium into a mould: it is what most manufacturers fit as standard, especially on two-strokes.
- High-silicon alloy: it expands little, is fitted with tight clearance and stays quiet when cold.
- Good wear resistance of the skirt and ring grooves.
- Lower price than a forged piston, for OEM quality in normal use.
- Limit: less tolerant of overheating and highly tuned engines.
Why choose PROX?
ProX has its pistons made in Japan and the USA, with Japanese rings (Riken, TP or NPR) and tolerances at least equal to OEM; most of its four-stroke pistons are forged.
When should you replace the piston on your SUZUKI RM 125?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.
Specifications and fitting tips
- Material: Aluminium
- Specificity: Domed Piston / 2 Lubrication Holes on Exhaust Skirt / MoS2 Skirt Coating
- Piston compression: Standard
- Piston type: Casted
- Stroke: 2T
Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: B = 53.95 mm, C = 53.96 mm, D = 53.97 mm.
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- Top-end gasket kit : CENTAURO · MOOSE
- Spark plug : NGK 4492 · NGK 3230
- 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063
- Air filter : TECNIUM 0417 · TECNIUM 0330
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
SUZUKI RM 125 1999
SUZUKI RM 125 1998
SUZUKI RM 125 1997
SUZUKI RM 125 1996
SUZUKI RM 125 1995
SUZUKI RM 125 1994
SUZUKI RM 125 1993
SUZUKI RM 125 1992
SUZUKI RM 125 1991
SUZUKI RM 125 1990
SUZUKI RM 125 1989
01.3214.B
2 Items
Specific References
No customer reviews for the moment.
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
Available in several sizes.
