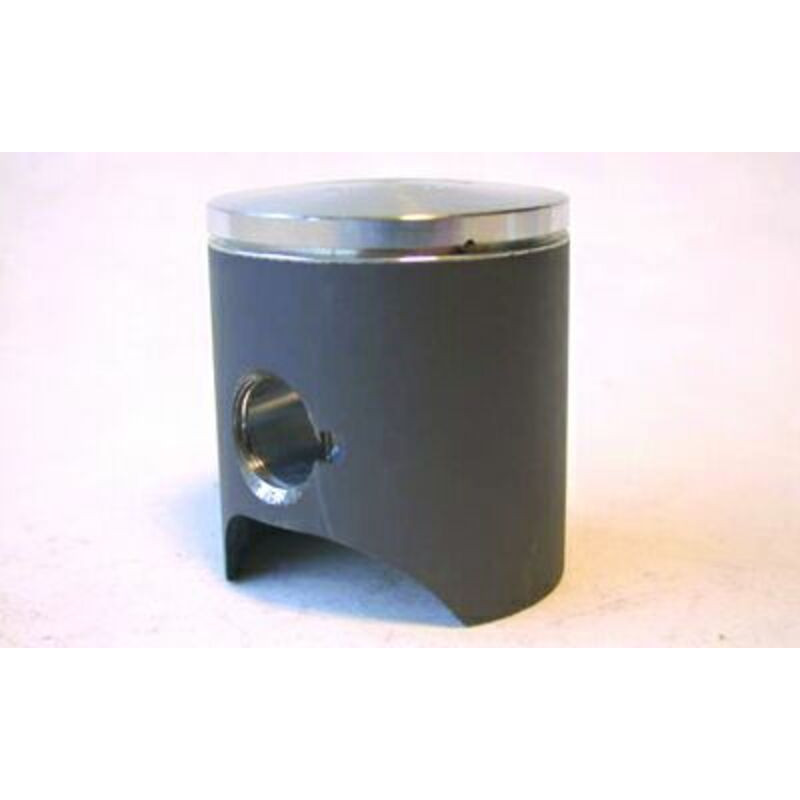

VERTEX Casted Piston for SUZUKI RM 80 1980-2000 - 22501

VERTEX offers this piston kit for SUZUKI RM 80 1980-2000. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a cast piston?

A cast piston is made by pouring liquid aluminium into a mould: it is what most manufacturers fit as standard, especially on two-strokes.

• High-silicon alloy: it expands little, is fitted with tight clearance and stays quiet when cold.
• Good wear resistance of the skirt and ring grooves.
• Lower price than a forged piston, for OEM quality in normal use.
• Limit: less tolerant of overheating and highly tuned engines.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy.

When should you replace the piston on your SUZUKI RM 80?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the Suzuki RM 80 / RM 85):

• Racing: every 18 h (about 9 races).
• Leisure: no Suzuki figure; Cross-Mania guideline: compression check at around 36 h.

Specifications and fitting tips

• Material: Aluminium
• Piston compression: Standard
• Piston type: Casted
• Stroke: 2T

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: B = 47.44 mm, C = 47.45 mm, D = 47.94 mm, E = 48.44 mm.

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : VINTCO · MOOSE
• Spark plug : NGK
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063
• Air filter : TECNIUM · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 80 2000
SUZUKI RM 80 1999
SUZUKI RM 80 1998
SUZUKI RM 80 1997
SUZUKI RM 80 1996
SUZUKI RM 80 1995
SUZUKI RM 80 1994
SUZUKI RM 80 1993
SUZUKI RM 80 1992
SUZUKI RM 80 1991
SUZUKI RM 80 1990
SUZUKI RM 80 1989
SUZUKI RM 80 1988
SUZUKI RM 80 1987
SUZUKI RM 80 1986
SUZUKI RM 80 1985
SUZUKI RM 80 1984
SUZUKI RM 80 1983
SUZUKI RM 80 1982
SUZUKI RM 80 1981
SUZUKI RM 80 1980
