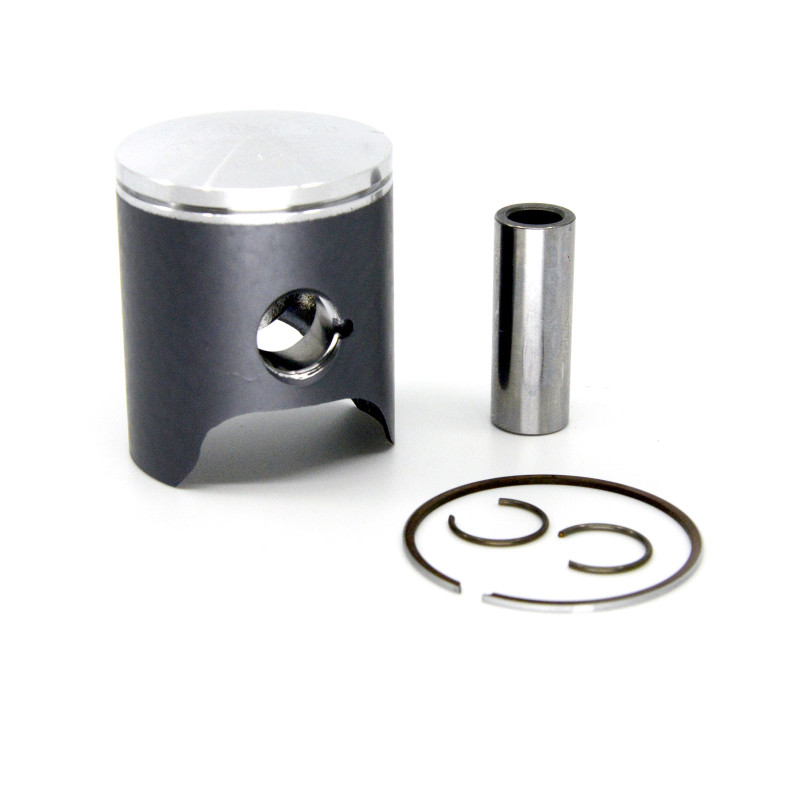

METEOR Piston Kit ref. PC2110CD for KTM SX 50, HUSQVARNA TC 50 and GAS GAS MC 50 2009-2027

The METEOR PC2110CD piston kit (Ø 39.47 mm) is designed for KTM SX 50, HUSQVARNA TC 50 and GAS GAS MC 50 from 2009 to 2027. The piston takes the pressure of every combustion and passes it on to the connecting rod, thousands of times a minute. Over the hours it wears, its rings stop sealing properly and the engine loses compression: it starts less easily, pulls less hard and runs hotter.

Key features

• Italian piston manufacturer since 1952.
• Complete kit: piston, ring(s), pin and circlips.

Specifications

• Brand: METEOR
• Manufacturer part number: PC2110CD
• Piston diameter: 39.47 mm
• Engine: 2-stroke

When to replace it?

• Loss of power, sluggish pick-up, harder starting: compression is dropping.
• Piston slap on a cold engine, getting more and more noticeable.
• On teardown: vertical scoring on the skirt, stuck or worn rings, thick carbon on the crown.

Replace the piston as set out in your bike's service manual, sooner if you race, and straight away as soon as these symptoms appear. As a Cross-Mania guideline, plan for a new piston every 15 to 30 hours of engine running depending on whether you race or ride for fun. Always measure the cylinder at the same time: a new piston in an oval cylinder won't last.

Fitting tips

1. Clean the cylinder and check it: diameter, ovality, taper and condition of the bore coating.
2. Check the end gap of each ring in the cylinder against the figures in the manual or the manufacturer's instructions.
3. Fit the rings with the mark facing up and each gap correctly located on its locating pin.
4. Check the small-end needle bearing and the pin: at the slightest play, tight spot or marked needle, replace the bearing.
5. Fit the piston with its arrow pointing to the exhaust side, oil the pin and the small end, then fit the circlips without distorting them, gap opposite the notch. A circlip that has been taken out is replaced with new piston pin circlips, never refitted.
6. Reassemble with a new top end gasket kit and tighten the cylinder head in a criss-cross pattern to the manufacturer's torque.
7. Refill the coolant and fit a new spark plug.
8. Break the engine in: warm it up gently, vary the revs and avoid sustained full throttle for the first hour.

Why METEOR?

A piston manufacturer since 1952, Italy's Meteor has supplied original equipment to manufacturers such as Piaggio and Innocenti. Its Meteor Racing division designs pistons for racing engines, both two-stroke and four-stroke.

Spare parts and items to plan

• Piston rings : VERTEX · WOSSNER
• Piston pin clips : WISECO · VERTEX
• Top-end gasket kit : ATHENA · CENTAURO
• Small end needle bearing : PROX · ATHENA
• Spark plug : NGK · NGK LR8B
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Frequently asked questions

Does the kit include the gaskets?
No: the kit contains the piston, rings, pin and circlips. Add a top end gasket kit, because a head or base gasket can never be reused.

Can I replace just the rings later?
Yes, as long as the piston and cylinder are still within tolerance. Replacement rings can be ordered on their own, as can the piston pin and the circlips.

Should I replace the small-end needle bearing?
It isn't included. Check it at every piston change and replace the needle bearing at the slightest play or tight spot.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS MC 50 2027
GAS GAS MC 50 2026
GAS GAS MC 50 2025
GAS GAS MC 50 2024
GAS GAS MC 50 2023
GAS GAS MC 50 2022
GAS GAS MC 50 2021
HUSQVARNA TC 50 2027
HUSQVARNA TC 50 2026
HUSQVARNA TC 50 2025
HUSQVARNA TC 50 2024
HUSQVARNA TC 50 2023
HUSQVARNA TC 50 2022
HUSQVARNA TC 50 2021
HUSQVARNA TC 50 2020
HUSQVARNA TC 50 2019
HUSQVARNA TC 50 2018
HUSQVARNA TC 50 2017
KTM SX 50 2026
KTM SX 50 2025
KTM SX 50 2024
KTM SX 50 2023
KTM SX 50 2022
KTM SX 50 2021
KTM SX 50 2020
KTM SX 50 2019
KTM SX 50 2018
KTM SX 50 2017
KTM SX 50 2016
KTM SX 50 2015
KTM SX 50 2014
KTM SX 50 2013
KTM SX 50 2012
KTM SX 50 2011
KTM SX 50 2010
KTM SX 50 2009
