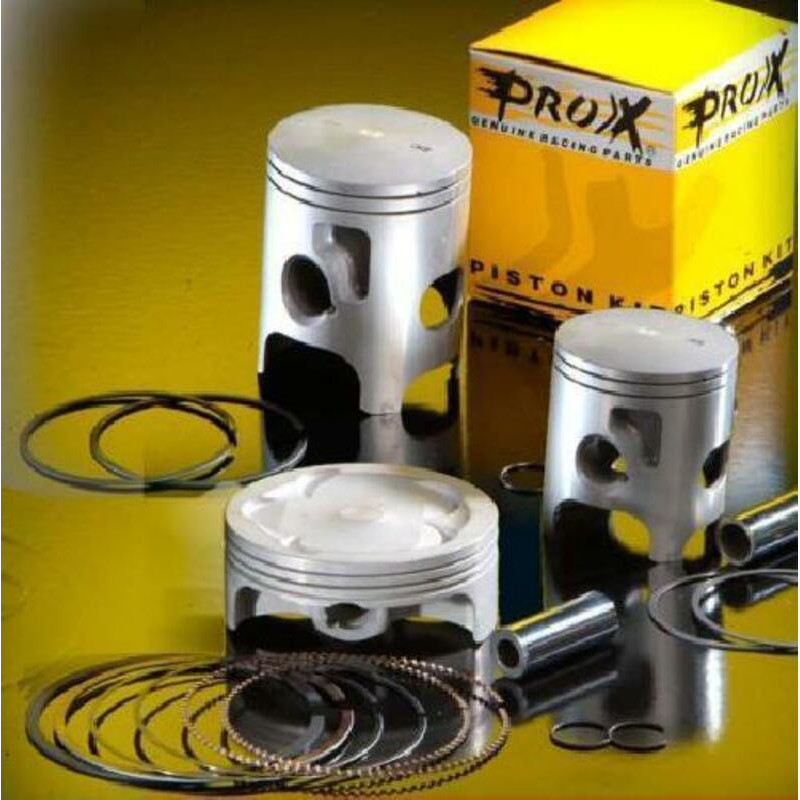

PROX Forged Piston for KTM SX 505, SXF 505 2007-2012
€195.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
PROX offers this piston kit for KTM SX 505, SXF 505 2007-2012. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose PROX?
ProX has its pistons made in Japan and the USA, with Japanese rings (Riken, TP or NPR) and tolerances at least equal to OEM; most of its four-stroke pistons are forged.
When should you replace the piston on your KTM SX 505?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.
Specifications and fitting tips
- Material: Aluminium
- Specificity: Flat Crown / 4 Valve Pockets
- Piston compression: Standard
- Piston type: Forged
- Oversize Letter: B
- Forged piston : Ø99.95mm
- Manufacturer part number: 01.6508.B
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- Top-end gasket kit : PROX
- Spark plug : see the selection
- 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L
- Air filter : TECNIUM · TWIN AIR
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
KTM SX 505 2012
KTM SX 505 2011
KTM SX 505 2010
KTM SX 505 2009
KTM SXF 505 2008
KTM SXF 505 2007
01.6508.B
1 Item
Specific References
Click on your bike to see all compatible parts.
No customer reviews for the moment.
