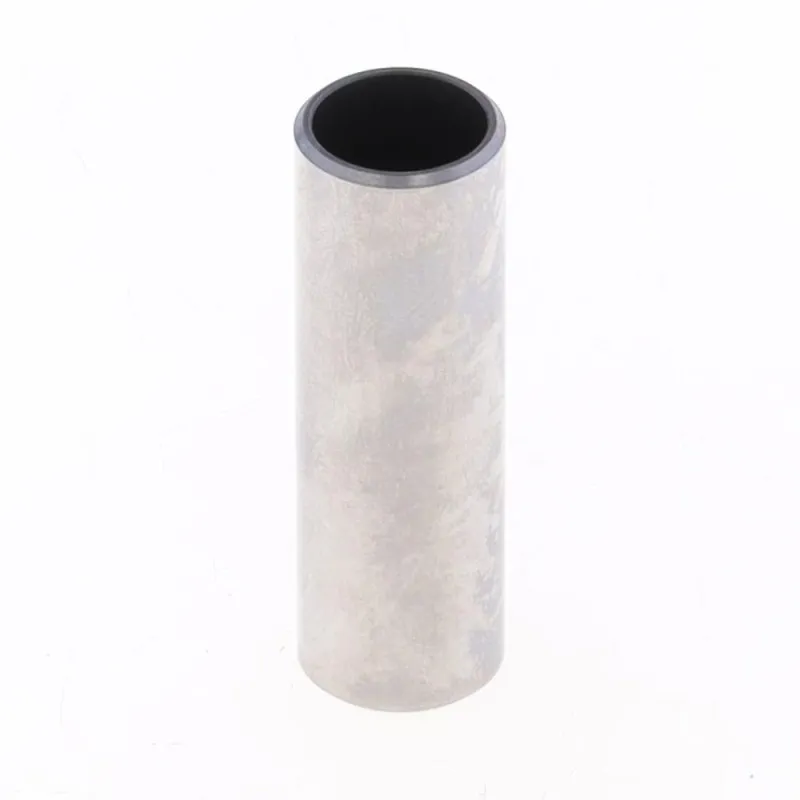

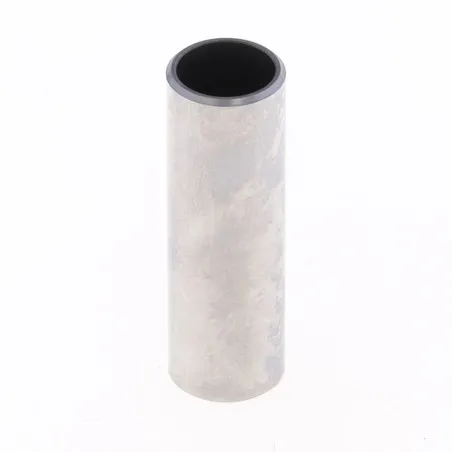

ATHENA Piston Pin 16x11x56.2 mm for KAWASAKI KDX 200 and GAS GAS TXT 200 1983-2006

The ATHENA 16x11x56.2 mm S41317027 piston pin is designed for KAWASAKI KDX 200 and GAS GAS TXT 200 from 1983 to 2006. The piston pin connects the piston to the connecting rod and takes the full force of every combustion. It works in the small end and in the piston bosses: over the hours it wears or gets marked, and play appears.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41317027
• EAN code: 8051757090525
• For ATHENA piston
• Weight: 10 g
• Engine: 2-stroke

When to replace it?

• Metallic knocking at idle or when closing the throttle.
• Pin marked, blued or scored on teardown.
• Noticeable play between the pin and the small end or the piston bosses.

Check the pin at every piston change and replace it as soon as it is marked, blued or has play. A new pin always goes in with new circlips.

Fitting tips

1. Check that the pin diameter and length match your piston (see specifications).
2. Oil the pin, the small end and the piston bosses, then push the pin in by hand, without forcing it.
3. At the same time, check the small-end needle bearing.
4. Fit new piston pin circlips, gap opposite the notch, and check they sit properly in their groove.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Piston pin clips : WOSSNER CW14 · WOSSNER CW16
• Small end needle bearing : ATHENA · PROX
• Top-end gasket kit : ATHENA · CENTAURO

Frequently asked questions

Is the pin supplied with the piston?
Yes, a new piston comes with its pin. This part is for replacing a worn or lost pin, or for completing a piston sold on its own.

Are the circlips included?
No: plan for new piston pin circlips, as they are never reused.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS TXT 200 2001
GAS GAS TXT 200 2000
KAWASAKI KDX 200 2006
KAWASAKI KDX 200 2005
KAWASAKI KDX 200 2004
KAWASAKI KDX 200 2003
KAWASAKI KDX 200 2002
KAWASAKI KDX 200 2001
KAWASAKI KDX 200 2000
KAWASAKI KDX 200 1999
KAWASAKI KDX 200 1998
KAWASAKI KDX 200 1997
KAWASAKI KDX 200 1996
KAWASAKI KDX 200 1995
KAWASAKI KDX 200 1994
KAWASAKI KDX 200 1993
KAWASAKI KDX 200 1992
KAWASAKI KDX 200 1991
KAWASAKI KDX 200 1990
KAWASAKI KDX 200 1989
KAWASAKI KDX 200 1988
KAWASAKI KDX 200 1987
KAWASAKI KDX 200 1986
KAWASAKI KDX 200 1985
KAWASAKI KDX 200 1984
KAWASAKI KDX 200 1983
