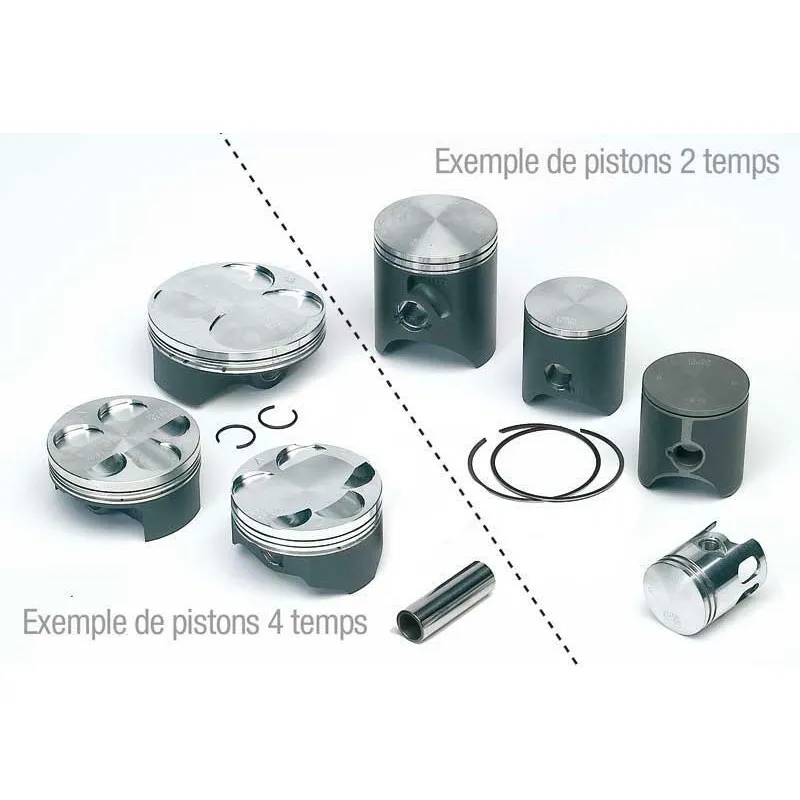

VERTEX Casted Piston for GAS GAS TXT 125, TXT 125 GP, TXT 125 SCHOOL 2002-2021

VERTEX offers this piston kit for GAS GAS TXT 125, TXT 125 GP, TXT 125 SCHOOL 2002-2021. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a cast piston?

A cast piston is made by pouring liquid aluminium into a mould: it is what most manufacturers fit as standard, especially on two-strokes.

• High-silicon alloy: it expands little, is fitted with tight clearance and stays quiet when cold.
• Good wear resistance of the skirt and ring grooves.
• Lower price than a forged piston, for OEM quality in normal use.
• Limit: less tolerant of overheating and highly tuned engines.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its two-stroke pistons are cast from an 18 % silicon alloy.

When should you replace the piston on your GAS GAS TXT 125?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Piston compression: Standard
• Piston type: Casted
• Rings Quantity: 2
• Stroke: 2T

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 53.95 mm, B = 53.96 mm.

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : CENTAURO · COMETIC
• Spark plug : see the selection
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L
• Air filter : TWIN AIR 154160 · TWIN AIR 158054

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS TXT 125 2020
GAS GAS TXT 125 2019
GAS GAS TXT 125 2018
GAS GAS TXT 125 2017
GAS GAS TXT 125 2016
GAS GAS TXT 125 2015
GAS GAS TXT 125 2014
GAS GAS TXT 125 2013
GAS GAS TXT 125 2012
GAS GAS TXT 125 2011
GAS GAS TXT 125 2010
GAS GAS TXT 125 2009
GAS GAS TXT 125 2008
GAS GAS TXT 125 2007
GAS GAS TXT 125 2006
GAS GAS TXT 125 2005
GAS GAS TXT 125 2004
GAS GAS TXT 125 2003
GAS GAS TXT 125 2002
GAS GAS TXT 125 GP 2021
GAS GAS TXT 125 GP 2019
GAS GAS TXT 125 GP 2018
GAS GAS TXT 125 GP 2017
GAS GAS TXT 125 SCHOOL 2018
