JT SPROCKETS steel front sprocket 520 pitch for YAMAHA TT 230, YFS 200 BLASTER 2WD 1990-2006

JT SPROCKETS offers this front sprocket for YAMAHA TT 230, YFS 200 BLASTER 2WD 1990-2006. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket on your YAMAHA YFS 200 BLASTER 2WD?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

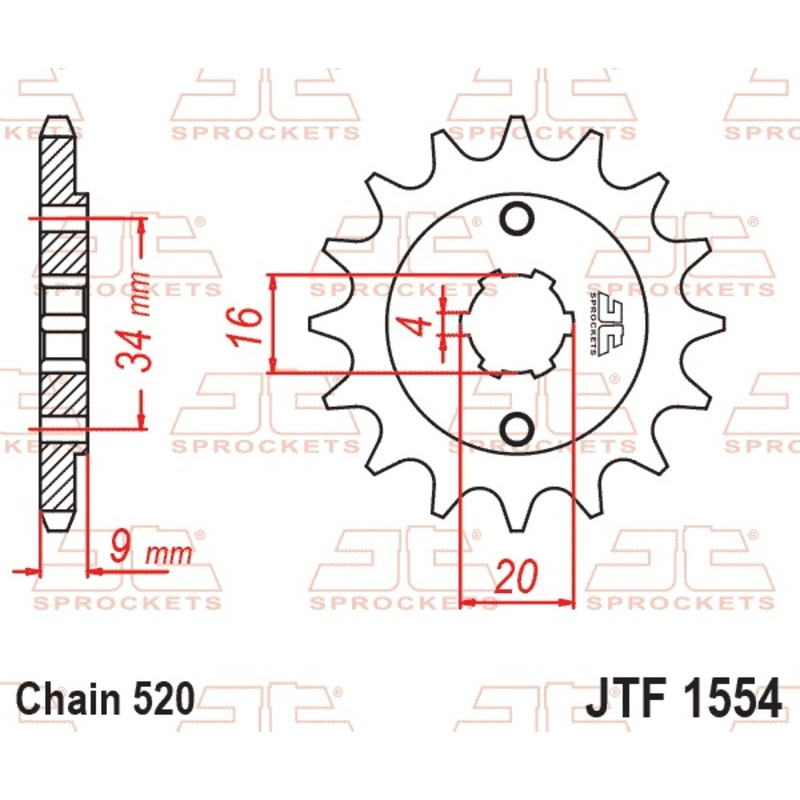

Specifications and fitting tips

• Chain pitch: 520
• Material: Steel
• Front sprocket version: Standard
• Optimal lightweight design
• CNC machined for performance and lifespan

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : AFAM 13323+ · AFAM 13323N
• Drive chain : ALL BALLS
• Chain lube : LIQUI MOLY 400 ml · MUC OFF 400 ml

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA TT 230 2006
YAMAHA TT 230 2005
YAMAHA YFS 200 BLASTER 2WD 2006
YAMAHA YFS 200 BLASTER 2WD 2005
YAMAHA YFS 200 BLASTER 2WD 2004
YAMAHA YFS 200 BLASTER 2WD 2003
YAMAHA YFS 200 BLASTER 2WD 2002
YAMAHA YFS 200 BLASTER 2WD 2001
YAMAHA YFS 200 BLASTER 2WD 2000
YAMAHA YFS 200 BLASTER 2WD 1999
YAMAHA YFS 200 BLASTER 2WD 1998
YAMAHA YFS 200 BLASTER 2WD 1997
YAMAHA YFS 200 BLASTER 2WD 1996
YAMAHA YFS 200 BLASTER 2WD 1995
YAMAHA YFS 200 BLASTER 2WD 1994
YAMAHA YFS 200 BLASTER 2WD 1993
YAMAHA YFS 200 BLASTER 2WD 1992
YAMAHA YFS 200 BLASTER 2WD 1991
YAMAHA YFS 200 BLASTER 2WD 1990
