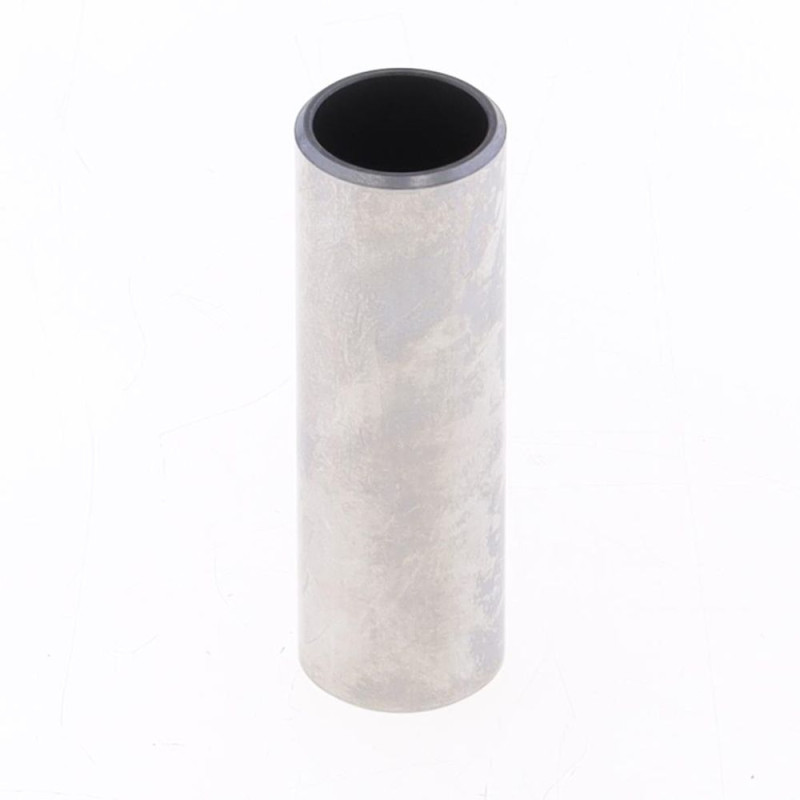

ATHENA Piston Pin 18x12x56 mm for HUSQVARNA CR 360, WR 360 and KTM EXC 360, EXC 380, SX 360, SX 380 1992-2005

On KTM EXC 360, EXC 380, SX 360, SX 380 and HUSQVARNA CR 360, WR 360 from 1992 to 2005, the ATHENA 18x12x56 mm S41317004 piston pin fits in place of the original part. Small but heavily loaded, the pin transmits the piston's thrust to the connecting rod. A marked or oval pin creates play and noise, and wears the small end.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41317004
• EAN code: 8051757165223
• For ATHENA piston
• Weight: 10 g
• Engine: 2-stroke

When to replace it?

• Metallic knocking at idle or when closing the throttle.
• Pin marked, blued or scored on teardown.
• Noticeable play between the pin and the small end or the piston bosses.

Check the pin at every piston change and replace it as soon as it is marked, blued or has play. A new pin always goes in with new circlips.

Fitting tips

1. Check that the pin diameter and length match your piston (see specifications).
2. Oil the pin, the small end and the piston bosses, then push the pin in by hand, without forcing it.
3. At the same time, check the small-end needle bearing.
4. Fit new piston pin circlips, gap opposite the notch, and check they sit properly in their groove.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Piston pin clips : WOSSNER · VERTEX
• Small end needle bearing : WOSSNER · PROX
• Top-end gasket kit : CENTAURO · ATHENA

Frequently asked questions

Is the pin supplied with the piston?
Yes, a new piston comes with its pin. This part is for replacing a worn or lost pin, or for completing a piston sold on its own.

Are the circlips included?
No: plan for new piston pin circlips, as they are never reused.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA CR 360 2005
HUSQVARNA CR 360 2004
HUSQVARNA CR 360 2003
HUSQVARNA CR 360 2002
HUSQVARNA CR 360 2001
HUSQVARNA CR 360 2000
HUSQVARNA CR 360 1999
HUSQVARNA CR 360 1998
HUSQVARNA CR 360 1997
HUSQVARNA CR 360 1996
HUSQVARNA CR 360 1995
HUSQVARNA CR 360 1994
HUSQVARNA CR 360 1993
HUSQVARNA CR 360 1992
HUSQVARNA WR 360 2005
HUSQVARNA WR 360 2004
HUSQVARNA WR 360 2003
HUSQVARNA WR 360 2002
HUSQVARNA WR 360 2001
HUSQVARNA WR 360 2000
HUSQVARNA WR 360 1999
HUSQVARNA WR 360 1998
HUSQVARNA WR 360 1997
HUSQVARNA WR 360 1996
HUSQVARNA WR 360 1995
HUSQVARNA WR 360 1994
HUSQVARNA WR 360 1993
HUSQVARNA WR 360 1992
KTM EXC 360 1997
KTM EXC 360 1996
KTM EXC 360 1995
KTM EXC 380 2002
KTM EXC 380 2001
KTM EXC 380 2000
KTM EXC 380 1999
KTM EXC 380 1998
KTM SX 360 1997
KTM SX 360 1996
KTM SX 380 2002
KTM SX 380 2001
KTM SX 380 2000
KTM SX 380 1999
KTM SX 380 1998
