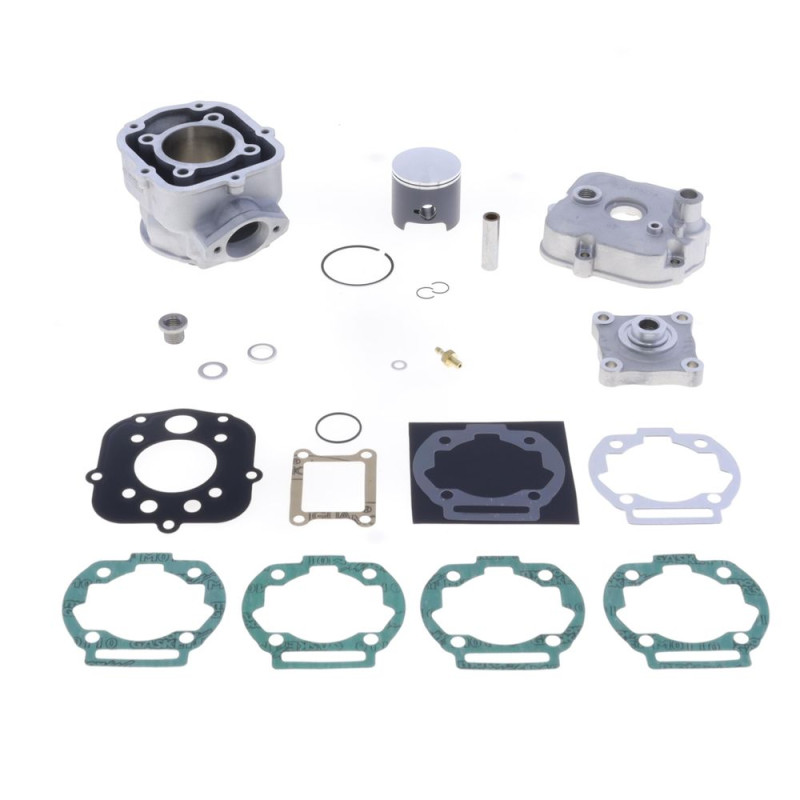

ATHENA Big Bore 80 Cylinder Kit Ø50 mm for APRILIA RX 50 2006-2020
€333.90
Tax Included
ATHENA Big Bore 80 Ø50 mm cylinder kit for APRILIA RX 50 from 2006 to 2020.
The ATHENA Big Bore 80 Ø50 mm P400105100007 cylinder kit is designed for APRILIA RX 50 from 2006 to 2020. The cylinder guides the piston and, together with the cylinder head, forms the chamber where combustion takes place. Its bore coating wears, scores or goes oval over the hours: a new cylinder kit gives the engine back its original compression, or more displacement with a Big Bore version.
Specifications
- Brand: ATHENA
- Manufacturer part number: P400105100007
- EAN code: 8052204292592
- Weight: 1.42 kg
- Engine: 2-stroke
When to replace it?
- Cylinder scored or coating flaking after a seizure.
- Ovality or taper out of tolerance when measured with a micrometer.
- You want more torque and power without touching the bottom end.
Measure the cylinder at every piston change. As soon as it falls outside the tolerances in the manual or is scored, it has to be replaced or reconditioned.
Fitting tips
- Carefully clean the top of the crankcase and cover its opening before removing the old cylinder.
- Oil the supplied piston and check the ring end gaps before fitting the cylinder.
- Use new gaskets, either those in the kit or a suitable top end gasket kit, and tighten the cylinder and head in a criss-cross pattern to the manufacturer's torque.
- Fit a new spark plug and refill the coolant.
- Break the engine in gently for 3 to 4 hours, as Athena recommends for its cylinder kits.
Why ATHENA?
Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.
Spare parts and items to plan
- Piston : ATHENA
- Piston rings : ATHENA
- Top end gasket kit : ATHENA
- Cylinder head and dome : ATHENA S410105308008 · ATHENA S410105308005
- Spark plug : NGK 3961 · NGK 5722
- Coolant : LIQUI MOLY 1 L · TWIN AIR
Frequently asked questions
What does the kit contain?
The cylinder and its complete piston. Check the photo and the Athena instructions for the gaskets supplied.
Is it road legal?
No: a Big Bore kit increases displacement; it is for closed-course competition only and may change your racing class.
Which spare parts should I plan for?
For the next service: piston, rings, pin, circlips and top end gaskets in the same size as this cylinder.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
APRILIA RX 50 2020
APRILIA RX 50 2019
APRILIA RX 50 2018
APRILIA RX 50 2017
APRILIA RX 50 2016
APRILIA RX 50 2015
APRILIA RX 50 2014
APRILIA RX 50 2013
APRILIA RX 50 2012
APRILIA RX 50 2011
APRILIA RX 50 2010
APRILIA RX 50 2009
APRILIA RX 50 2008
APRILIA RX 50 2007
APRILIA RX 50 2006
P400105100007
