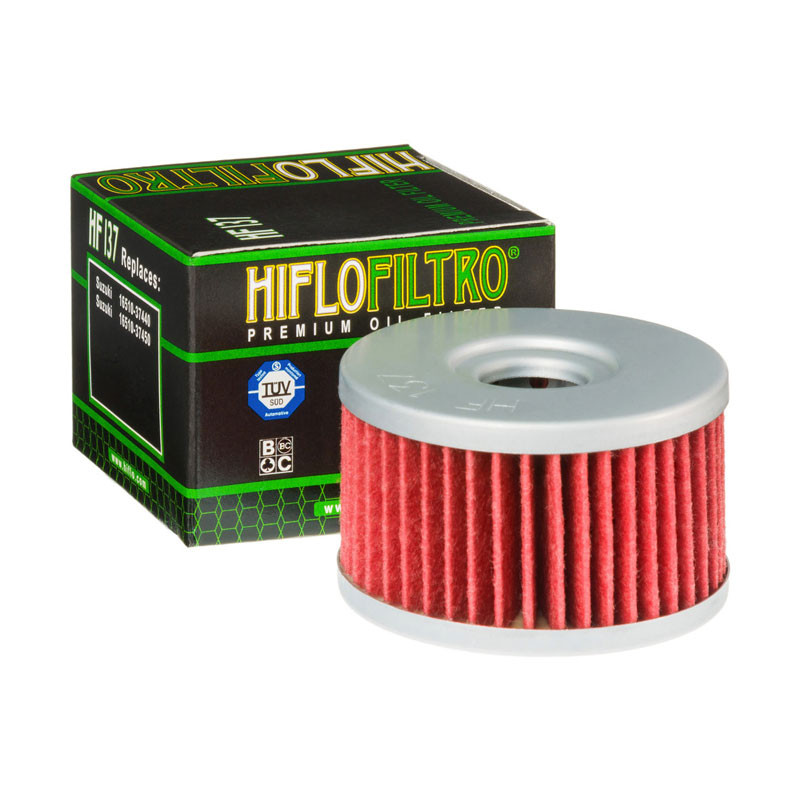

HI-FLO Oil Filter for SUZUKI DR 500, DR 650 1981-1996

The HI-FLO HF137 oil filter is designed for SUZUKI DR 500, DR 650 from 1981 to 1996. The oil filter traps the metal particles and deposits circulating in the oil. On a four-stroke motocrosser, the oil lubricates the valve train and the crankshaft at very high rpm: a new filter at every oil change protects these parts.

Specifications

• Brand: HI-FLO
• Manufacturer part number: HF137
• EAN code: 824225100143
• Engine: 4-stroke

When to replace it?

• Engine oil change due.
• Metal particles or sludge visible in the filter.

At every oil change, or every other oil change, depending on your bike's service manual.

Fitting tips

1. Drain the engine oil while it's warm.
2. Clean the filter housing and check the cover O-ring.
3. Fit the filter the right way round, oil the seals and tighten the cover to the manufacturer's torque.
4. Fill up with fresh engine oil and check the level after running the engine.

Spare parts and items to plan

• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
• Drain plug : see the selection

Frequently asked questions

How many filters does my bike have?
Some engines have two: check in your manual which one this part number replaces.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI DR 500 1984
SUZUKI DR 500 1983
SUZUKI DR 500 1982
SUZUKI DR 500 1981
SUZUKI DR 650 1996
SUZUKI DR 650 1995
SUZUKI DR 650 1994
SUZUKI DR 650 1993
SUZUKI DR 650 1992
SUZUKI DR 650 1991
SUZUKI DR 650 1990
