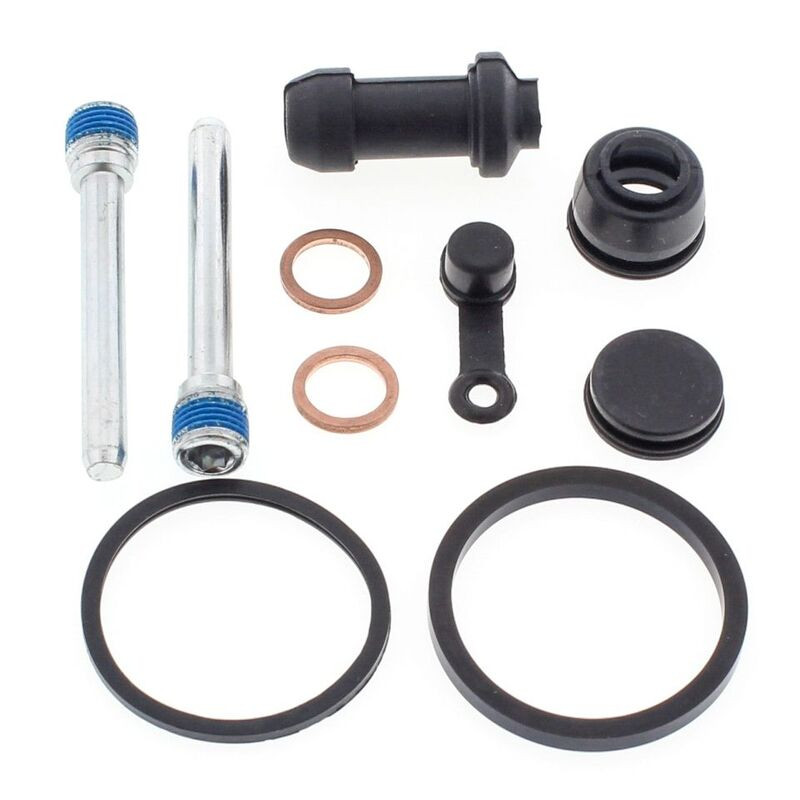

ALL BALLS Brake Caliper Rebuild Kit for HONDA TRX 250 EX SPORTRAX 2WD, TRX 300 EX SPORTRAX 2WD, TRX 400 EX SPORTRAX 2WD

ALL BALLS offers this brake caliper rebuild kit for HONDA TRX 250 EX SPORTRAX 2WD, TRX 250 X SPORTRAX 2WD, TRX 300 EX SPORTRAX 2WD, TRX 400 EX SPORTRAX 2WD 1993-2012. The caliper is the clamp that squeezes the pads onto the disc. Inside, one or more pistons are pushed out by the brake fluid when you pull the lever or press the pedal.

Why rebuild the caliper?

The benefits:

• Pistons that slide freely: the pads stop rubbing and wear evenly.
• Precise, consistent braking, even after muddy rides and repeated washing.
• You keep your original caliper, already matched to the bike.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace this part?

A brake that drags or runs hot, pads worn at an angle, a scored, pitted or sticking piston, fluid around the piston: the caliper needs rebuilding.

Specifications and fitting tips

• Manufacturer part number: 18-3020

Cross-Mania tip: Clean the seal grooves without scratching them (plastic or wooden tool), coat seals and pistons with fresh brake fluid, grease the slide pins with a brake-compatible grease, then bleed the system.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA TRX 250 EX SPORTRAX 2WD 2008
HONDA TRX 250 EX SPORTRAX 2WD 2007
HONDA TRX 250 EX SPORTRAX 2WD 2006
HONDA TRX 250 EX SPORTRAX 2WD 2005
HONDA TRX 250 EX SPORTRAX 2WD 2004
HONDA TRX 250 EX SPORTRAX 2WD 2003
HONDA TRX 250 EX SPORTRAX 2WD 2002
HONDA TRX 250 X SPORTRAX 2WD 2012
HONDA TRX 250 X SPORTRAX 2WD 2011
HONDA TRX 250 X SPORTRAX 2WD 2010
HONDA TRX 250 X SPORTRAX 2WD 2009
HONDA TRX 300 EX SPORTRAX 2WD 2008
HONDA TRX 300 EX SPORTRAX 2WD 2007
HONDA TRX 300 EX SPORTRAX 2WD 2006
HONDA TRX 300 EX SPORTRAX 2WD 2005
HONDA TRX 300 EX SPORTRAX 2WD 2004
HONDA TRX 300 EX SPORTRAX 2WD 2003
HONDA TRX 300 EX SPORTRAX 2WD 2002
HONDA TRX 300 EX SPORTRAX 2WD 2001
HONDA TRX 300 EX SPORTRAX 2WD 2000
HONDA TRX 300 EX SPORTRAX 2WD 1999
HONDA TRX 300 EX SPORTRAX 2WD 1998
HONDA TRX 300 EX SPORTRAX 2WD 1997
HONDA TRX 300 EX SPORTRAX 2WD 1996
HONDA TRX 300 EX SPORTRAX 2WD 1995
HONDA TRX 300 EX SPORTRAX 2WD 1994
HONDA TRX 300 EX SPORTRAX 2WD 1993
HONDA TRX 400 EX SPORTRAX 2WD 2008
HONDA TRX 400 EX SPORTRAX 2WD 2007
HONDA TRX 400 EX SPORTRAX 2WD 2006
HONDA TRX 400 EX SPORTRAX 2WD 2005
HONDA TRX 400 EX SPORTRAX 2WD 2004
HONDA TRX 400 EX SPORTRAX 2WD 2003
HONDA TRX 400 EX SPORTRAX 2WD 2002
HONDA TRX 400 EX SPORTRAX 2WD 2001
HONDA TRX 400 EX SPORTRAX 2WD 2000
HONDA TRX 400 EX SPORTRAX 2WD 1999
