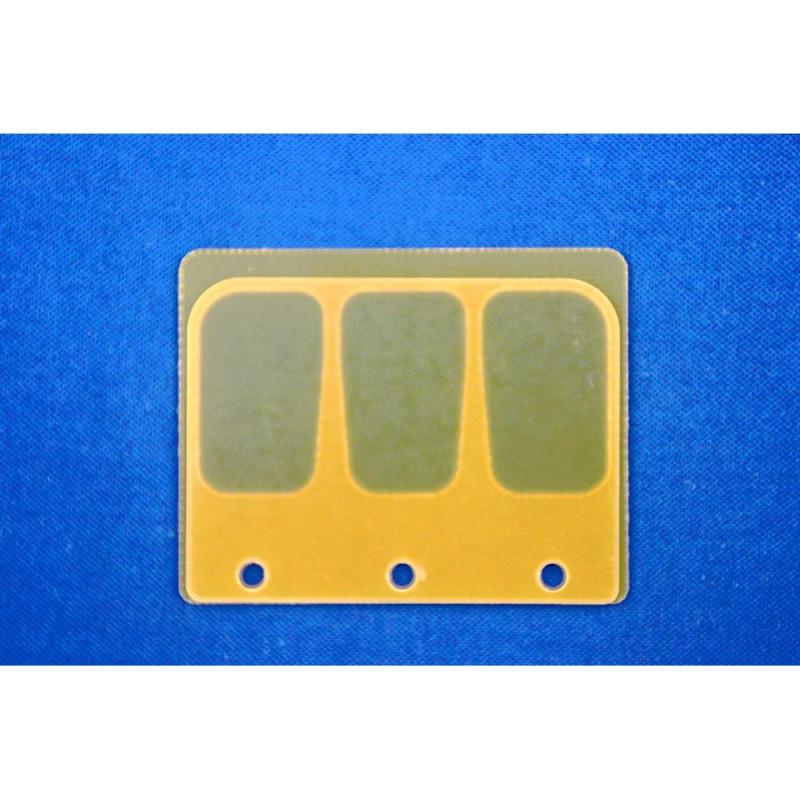

BOYESEN Reed Petals for OEM reed valve for GAS GAS TXT 250, TXT 280, TXT 300 2002-2016

The BOYESEN BOY6TR121 set of reed petals is designed for GAS GAS TXT 250, TXT 280, TXT 300 from 2002 to 2016. In a two-stroke, the petals of the reed valve block open to let the mixture into the crankcase, then close to stop it coming back out. Tired or chipped petals don't close properly: the engine loses bottom end and sharpness.

Key features

• Designed to fit the stock reed block.
• Designed for Boyesen reed blocks.
• Made in the USA.

Specifications

• Brand: BOYESEN
• Manufacturer part number: BOY6TR121
• EAN code: 804429011155
• Weight: 300 g
• Engine: 2-stroke

When to replace it?

• Petal tips chipped, split or frayed.
• Petals no longer sitting flat on the cage (visible gap).
• Weak pick-up at low revs, hard starting.

Inspect the petals at least once a season and at every piston change; replace them as soon as a tip is damaged.

Fitting tips

1. Remove the reed valve block and clean the cage.
2. Fit the petals the right way round and tighten the petal screws with threadlocker to the recommended torque.
3. Check that the petals sit flat on the cage before refitting.
4. Refit with a new reed block gasket.

Why BOYESEN?

Boyesen is an American brand specialising in the intake and the engine covers of two-stroke engines: reed petals, RAD Valve reed blocks, engine covers and Supercooler water pumps.

Spare parts and items to plan

• Reed block gasket : see the selection
• Spark plug : NGK 6597 · NGK 7422
• Carburettor repair kit : see the selection

Frequently asked questions

Do I need to re-jet?
Usually not on a well-tuned engine; check the colour of the spark plug after the first few rides.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS TXT 250 2012
GAS GAS TXT 250 2011
GAS GAS TXT 250 2010
GAS GAS TXT 250 2009
GAS GAS TXT 250 2008
GAS GAS TXT 250 2007
GAS GAS TXT 250 2006
GAS GAS TXT 250 2005
GAS GAS TXT 250 2004
GAS GAS TXT 250 2003
GAS GAS TXT 250 2002
GAS GAS TXT 280 2016
GAS GAS TXT 280 2015
GAS GAS TXT 280 2014
GAS GAS TXT 280 2013
GAS GAS TXT 280 2012
GAS GAS TXT 280 2011
GAS GAS TXT 280 2010
GAS GAS TXT 280 2009
GAS GAS TXT 280 2008
GAS GAS TXT 280 2007
GAS GAS TXT 280 2006
GAS GAS TXT 280 2005
GAS GAS TXT 280 2004
GAS GAS TXT 280 2003
GAS GAS TXT 280 2002
GAS GAS TXT 300 2016
GAS GAS TXT 300 2015
GAS GAS TXT 300 2014
GAS GAS TXT 300 2013
GAS GAS TXT 300 2012
GAS GAS TXT 300 2011
GAS GAS TXT 300 2010
GAS GAS TXT 300 2009
GAS GAS TXT 300 2008
GAS GAS TXT 300 2007
GAS GAS TXT 300 2006
GAS GAS TXT 300 2005
GAS GAS TXT 300 2004
GAS GAS TXT 300 2003
GAS GAS TXT 300 2002
