PIVOT WORKS Fork Rebuild Kit (Seals and Bushings) for KAWASAKI KX 65 and SUZUKI RM 65, RM 80 1986-2018

On SUZUKI RM 65, RM 80 and KAWASAKI KX 65 from 1986 to 2018, the PIVOT WORKS PWFFKK19000 fork rebuild kit fits in place of the original part. Over the hours, fork bushings lose their coating and the seals harden: the fork leaks, develops play and sticks on small bumps. This kit includes the oil seals, dust wipers, bushings and O-rings needed for a complete rebuild.

Specifications

• Brand: PIVOT WORKS
• Manufacturer part number: PWFFKK19000

When to replace it?

• Oil on the fork tube or on the front brake disc.
• Play when pulling and pushing the front wheel with the fork extended.
• Fork that sticks or creaks, scored bushings or copper showing on teardown.

At the first leak or the first sign of play. As a Cross-Mania guideline: fork oil change every 20 to 30 hours of racing, full rebuild (seals and bushings) every 40 to 60 hours, once a season for recreational riding.

Fitting tips

1. Drain the fork and remove the cartridge following the bike's manual.
2. Remove the dust wiper and clip, then separate the tube from the outer leg with short sharp pulls: the outer bushing and the old seal come out with the tube.
3. Cover the tube end with plastic film, slide on the new dust wiper, oil seal and outer bushing without cutting the lips, then fit the new inner bushing last.
4. Fit the outer bushing and the oil seal squarely with a driver that matches the tube diameter.
5. Refill with fresh fork oil at the manufacturer's level and viscosity.

Why PIVOT WORKS?

Pivot Works specialises in chassis rebuild kits for off-road bikes and quads: bearings, seals, bushings and spacers grouped by model. The brand claims original-equipment quality, durability and fit, and since 2012 has offered a lifetime replacement of its kits in case of failure (once per kit).

Spare parts and items to plan

• Fork oil : LIQUI MOLY 10W 500 ml

Frequently asked questions

What is in the kit?

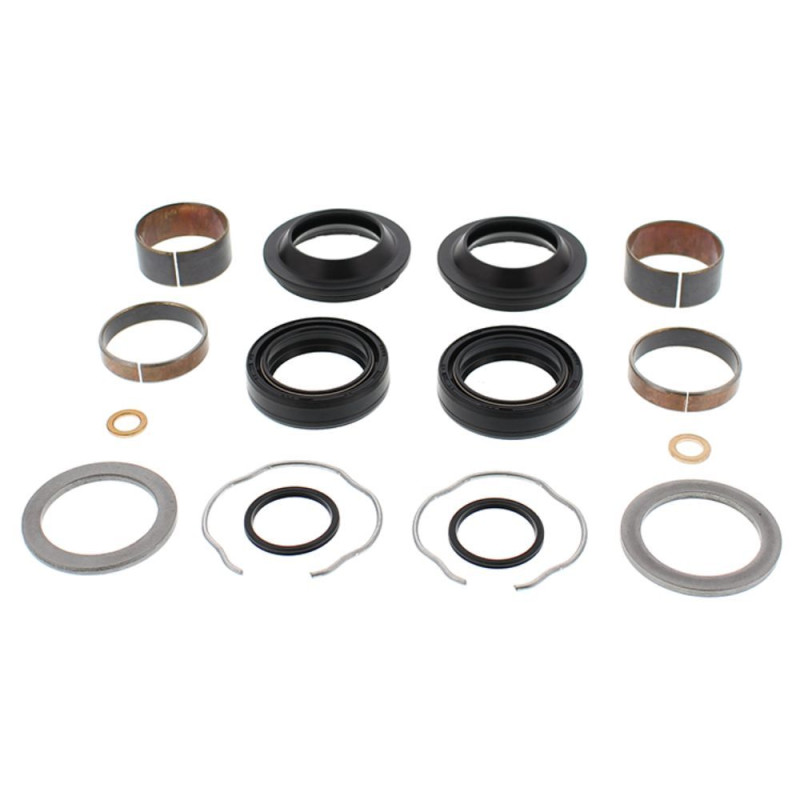

The oil seals, dust wipers, upper and lower bushings and O-rings for the model. Compare with the photo and your original parts if in doubt.

Should the bushings be replaced if only the seals leak?
It is recommended: a worn bushing lets the tube move and quickly damages new seals. The kit lets you replace everything in a single teardown.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 65 2018
KAWASAKI KX 65 2017
KAWASAKI KX 65 2016
KAWASAKI KX 65 2015
KAWASAKI KX 65 2014
KAWASAKI KX 65 2013
KAWASAKI KX 65 2012
KAWASAKI KX 65 2011
KAWASAKI KX 65 2010
KAWASAKI KX 65 2009
KAWASAKI KX 65 2008
KAWASAKI KX 65 2007
KAWASAKI KX 65 2006
KAWASAKI KX 65 2005
KAWASAKI KX 65 2004
KAWASAKI KX 65 2003
KAWASAKI KX 65 2002
KAWASAKI KX 65 2001
KAWASAKI KX 65 2000
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
SUZUKI RM 80 1988
SUZUKI RM 80 1987
SUZUKI RM 80 1986
