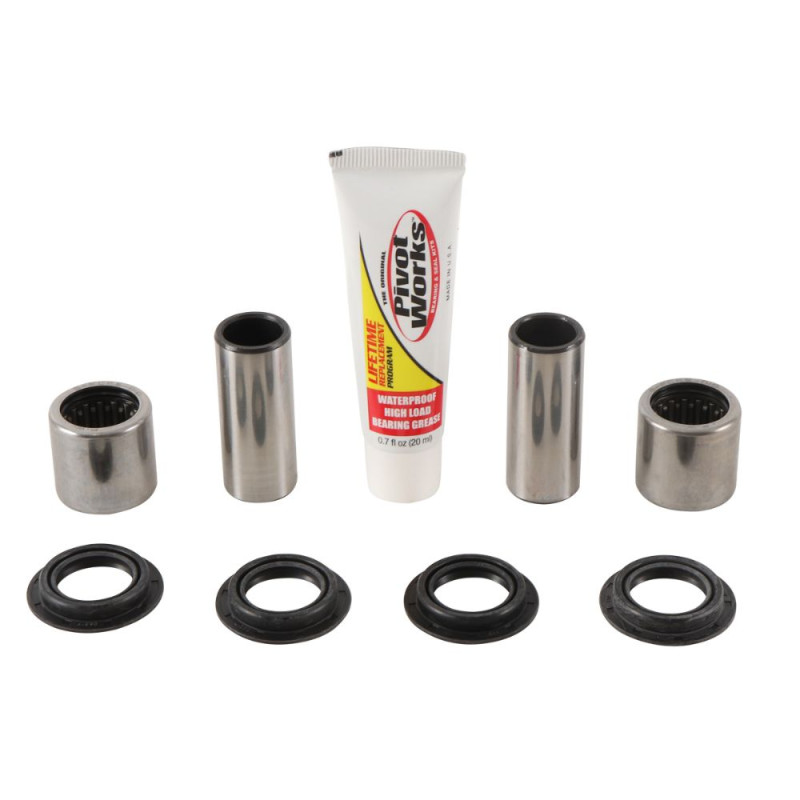

PIVOT WORKS Swingarm Bearing Kit for KAWASAKI KLR 650 1987-2016

On KAWASAKI KLR 650 from 1987 to 2016, the PIVOT WORKS PWSAKK20000 swingarm bearing kit fits in place of the original part. The swingarm pivots on the frame on its bearings. A pivot with play makes the rear vague and runs the chain out of line: this kit rebuilds the swingarm pivot.

Specifications

• Brand: PIVOT WORKS
• Manufacturer part number: PWSAKK20000

When to replace it?

• Play when you lift the rear wheel, bike on a stand.
• Suspension that creaks, sticks or reacts less well over small bumps.
• Rusty needles, torn seals or marked bushings on teardown.

Your bike's service manual gives the exact interval. As a Cross-Mania guideline: strip, clean and grease every 20 to 30 hours of racing or after very muddy rides, once a season for leisure riding; replace as soon as play or a tight spot appears.

Fitting tips

1. Note the position of each part as you strip it, side by side.
2. Press the needle bearings out, or use a suitable puller, without making the bores oval.
3. Press the new bearings in squarely, to the same depth as the old ones.
4. Pack bearings, bushings and seal lips with grease before reassembly.
5. Tighten the bolts to the manufacturer's torque and check that the suspension moves freely, without play.

Why PIVOT WORKS?

Pivot Works specialises in chassis rebuild kits for off-road bikes and quads: bearings, seals, bushings and spacers grouped by model. The brand claims original-equipment quality, durability and fit, and since 2012 has offered a lifetime replacement of its kits in case of failure (once per kit).

Spare parts and items to plan

• Grease : MOTUL 400 g

Frequently asked questions

Are the bolts supplied?
The kit contains the model's bearings, seals and wear bushings; the bolts and hardware stay original if they are not marked. Compare with the photo if in doubt.

Which grease should I use?
A thick, water-resistant grease, applied generously: it protects the needles from mud.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLR 650 2016
KAWASAKI KLR 650 2015
KAWASAKI KLR 650 2014
KAWASAKI KLR 650 2013
KAWASAKI KLR 650 2012
KAWASAKI KLR 650 2011
KAWASAKI KLR 650 2010
KAWASAKI KLR 650 2009
KAWASAKI KLR 650 2008
KAWASAKI KLR 650 2007
KAWASAKI KLR 650 2006
KAWASAKI KLR 650 2005
KAWASAKI KLR 650 2004
KAWASAKI KLR 650 2003
KAWASAKI KLR 650 2002
KAWASAKI KLR 650 2001
KAWASAKI KLR 650 2000
KAWASAKI KLR 650 1999
KAWASAKI KLR 650 1998
KAWASAKI KLR 650 1997
KAWASAKI KLR 650 1996
KAWASAKI KLR 650 1995
KAWASAKI KLR 650 1994
KAWASAKI KLR 650 1993
KAWASAKI KLR 650 1992
KAWASAKI KLR 650 1991
KAWASAKI KLR 650 1990
KAWASAKI KLR 650 1989
KAWASAKI KLR 650 1988
KAWASAKI KLR 650 1987
